1. Essential Composition and Structural Features of Quartz Ceramics
1.1 Chemical Purity and Crystalline-to-Amorphous Shift

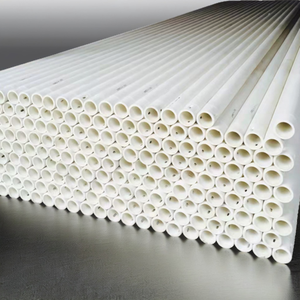

(Quartz Ceramics)
Quartz ceramics, additionally called merged silica or merged quartz, are a course of high-performance inorganic materials originated from silicon dioxide (SiO TWO) in its ultra-pure, non-crystalline (amorphous) kind.
Unlike standard ceramics that count on polycrystalline frameworks, quartz ceramics are identified by their full absence of grain borders because of their glazed, isotropic network of SiO â‚„ tetrahedra interconnected in a three-dimensional random network.
This amorphous framework is attained through high-temperature melting of all-natural quartz crystals or artificial silica precursors, complied with by fast air conditioning to avoid formation.
The resulting product contains generally over 99.9% SiO TWO, with trace impurities such as alkali metals (Na âº, K âº), aluminum, and iron maintained parts-per-million levels to preserve optical quality, electric resistivity, and thermal performance.
The absence of long-range order gets rid of anisotropic habits, making quartz ceramics dimensionally secure and mechanically consistent in all instructions– an essential advantage in accuracy applications.
1.2 Thermal Behavior and Resistance to Thermal Shock
Among one of the most defining features of quartz ceramics is their extremely low coefficient of thermal expansion (CTE), generally around 0.55 × 10 â»â¶/ K in between 20 ° C and 300 ° C.
This near-zero growth emerges from the adaptable Si– O– Si bond angles in the amorphous network, which can change under thermal anxiety without breaking, enabling the material to endure quick temperature changes that would certainly crack conventional porcelains or steels.
Quartz ceramics can sustain thermal shocks going beyond 1000 ° C, such as straight immersion in water after heating to heated temperatures, without breaking or spalling.
This property makes them vital in settings including repeated home heating and cooling down cycles, such as semiconductor processing furnaces, aerospace components, and high-intensity lights systems.
Additionally, quartz ceramics preserve structural honesty as much as temperatures of around 1100 ° C in continual solution, with temporary exposure tolerance approaching 1600 ° C in inert atmospheres.
( Quartz Ceramics)
Beyond thermal shock resistance, they display high softening temperature levels (~ 1600 ° C )and outstanding resistance to devitrification– though prolonged exposure above 1200 ° C can initiate surface area crystallization into cristobalite, which may endanger mechanical stamina due to volume adjustments throughout phase transitions.
2. Optical, Electric, and Chemical Properties of Fused Silica Systems
2.1 Broadband Transparency and Photonic Applications
Quartz ceramics are renowned for their remarkable optical transmission throughout a broad spooky array, expanding from the deep ultraviolet (UV) at ~ 180 nm to the near-infrared (IR) at ~ 2500 nm.
This transparency is enabled by the lack of contaminations and the homogeneity of the amorphous network, which minimizes light spreading and absorption.
High-purity synthetic merged silica, produced using fire hydrolysis of silicon chlorides, attains even greater UV transmission and is utilized in crucial applications such as excimer laser optics, photolithography lenses, and space-based telescopes.
The material’s high laser damages threshold– resisting failure under extreme pulsed laser irradiation– makes it excellent for high-energy laser systems used in combination research and industrial machining.
In addition, its low autofluorescence and radiation resistance guarantee dependability in scientific instrumentation, consisting of spectrometers, UV healing systems, and nuclear monitoring devices.
2.2 Dielectric Efficiency and Chemical Inertness
From an electric viewpoint, quartz ceramics are outstanding insulators with quantity resistivity surpassing 10 ¹⸠Ω · centimeters at space temperature and a dielectric constant of roughly 3.8 at 1 MHz.
Their reduced dielectric loss tangent (tan δ < 0.0001) guarantees very little power dissipation in high-frequency and high-voltage applications, making them appropriate for microwave windows, radar domes, and insulating substratums in electronic settings up.
These residential properties stay steady over a broad temperature level array, unlike lots of polymers or traditional ceramics that break down electrically under thermal stress.
Chemically, quartz ceramics exhibit exceptional inertness to the majority of acids, including hydrochloric, nitric, and sulfuric acids, because of the stability of the Si– O bond.
Nonetheless, they are vulnerable to attack by hydrofluoric acid (HF) and strong antacids such as hot salt hydroxide, which break the Si– O– Si network.
This selective sensitivity is made use of in microfabrication procedures where controlled etching of merged silica is called for.
In hostile industrial atmospheres– such as chemical processing, semiconductor wet benches, and high-purity fluid handling– quartz ceramics work as liners, sight glasses, and reactor parts where contamination must be reduced.
3. Production Processes and Geometric Engineering of Quartz Porcelain Parts
3.1 Melting and Developing Techniques
The manufacturing of quartz ceramics includes a number of specialized melting approaches, each customized to particular purity and application requirements.
Electric arc melting uses high-purity quartz sand thawed in a water-cooled copper crucible under vacuum cleaner or inert gas, producing big boules or tubes with exceptional thermal and mechanical buildings.
Flame fusion, or burning synthesis, involves burning silicon tetrachloride (SiCl â‚„) in a hydrogen-oxygen flame, transferring great silica particles that sinter into a transparent preform– this method yields the greatest optical top quality and is utilized for synthetic merged silica.
Plasma melting uses an alternate path, giving ultra-high temperature levels and contamination-free processing for specific niche aerospace and protection applications.
When melted, quartz ceramics can be shaped via accuracy casting, centrifugal developing (for tubes), or CNC machining of pre-sintered blanks.
Due to their brittleness, machining calls for diamond tools and mindful control to stay clear of microcracking.
3.2 Precision Construction and Surface Area Completing
Quartz ceramic components are commonly made into complicated geometries such as crucibles, tubes, rods, home windows, and personalized insulators for semiconductor, photovoltaic or pv, and laser markets.
Dimensional precision is critical, particularly in semiconductor manufacturing where quartz susceptors and bell jars have to keep specific positioning and thermal harmony.
Surface area completing plays an important duty in efficiency; refined surface areas decrease light scattering in optical elements and lessen nucleation websites for devitrification in high-temperature applications.
Etching with buffered HF options can generate regulated surface area appearances or eliminate damaged layers after machining.
For ultra-high vacuum cleaner (UHV) systems, quartz porcelains are cleaned and baked to get rid of surface-adsorbed gases, making sure minimal outgassing and compatibility with sensitive processes like molecular light beam epitaxy (MBE).
4. Industrial and Scientific Applications of Quartz Ceramics
4.1 Duty in Semiconductor and Photovoltaic Manufacturing
Quartz ceramics are fundamental materials in the construction of incorporated circuits and solar batteries, where they act as furnace tubes, wafer boats (susceptors), and diffusion chambers.
Their capability to endure heats in oxidizing, lowering, or inert atmospheres– combined with reduced metallic contamination– makes sure procedure purity and yield.
During chemical vapor deposition (CVD) or thermal oxidation, quartz components preserve dimensional security and stand up to warping, protecting against wafer damage and misalignment.
In solar production, quartz crucibles are made use of to expand monocrystalline silicon ingots through the Czochralski procedure, where their purity straight influences the electrical high quality of the last solar batteries.
4.2 Usage in Lights, Aerospace, and Analytical Instrumentation
In high-intensity discharge (HID) lights and UV sanitation systems, quartz ceramic envelopes include plasma arcs at temperatures exceeding 1000 ° C while transferring UV and noticeable light effectively.
Their thermal shock resistance prevents failure during rapid light ignition and shutdown cycles.
In aerospace, quartz porcelains are utilized in radar windows, sensor housings, and thermal security systems as a result of their reduced dielectric constant, high strength-to-density proportion, and stability under aerothermal loading.
In logical chemistry and life sciences, merged silica blood vessels are important in gas chromatography (GC) and capillary electrophoresis (CE), where surface inertness prevents sample adsorption and makes certain accurate separation.
Furthermore, quartz crystal microbalances (QCMs), which depend on the piezoelectric residential properties of crystalline quartz (distinct from merged silica), make use of quartz ceramics as protective real estates and shielding supports in real-time mass sensing applications.
Finally, quartz porcelains stand for a special crossway of severe thermal strength, optical transparency, and chemical purity.
Their amorphous framework and high SiO two web content allow performance in atmospheres where conventional products fail, from the heart of semiconductor fabs to the edge of area.
As modern technology advancements toward higher temperatures, higher precision, and cleaner procedures, quartz porcelains will continue to act as an essential enabler of technology throughout scientific research and industry.
