1. Product Structures and Synergistic Style
1.1 Intrinsic Qualities of Component Phases

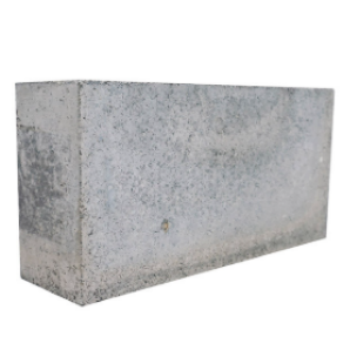

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si ₃ N ₄) and silicon carbide (SiC) are both covalently bound, non-oxide porcelains renowned for their phenomenal efficiency in high-temperature, destructive, and mechanically requiring settings.
Silicon nitride displays outstanding crack durability, thermal shock resistance, and creep stability because of its special microstructure composed of lengthened β-Si five N four grains that enable fracture deflection and linking systems.
It keeps strength as much as 1400 ° C and has a relatively reduced thermal growth coefficient (~ 3.2 × 10 ⁻⁶/ K), lessening thermal stresses throughout quick temperature level changes.
On the other hand, silicon carbide uses superior firmness, thermal conductivity (up to 120– 150 W/(m · K )for solitary crystals), oxidation resistance, and chemical inertness, making it perfect for abrasive and radiative heat dissipation applications.
Its wide bandgap (~ 3.3 eV for 4H-SiC) likewise gives superb electrical insulation and radiation tolerance, helpful in nuclear and semiconductor contexts.
When integrated right into a composite, these products exhibit complementary behaviors: Si six N ₄ enhances sturdiness and damages resistance, while SiC boosts thermal administration and put on resistance.
The resulting hybrid ceramic accomplishes a balance unattainable by either phase alone, developing a high-performance structural product tailored for extreme service conditions.
1.2 Composite Style and Microstructural Design
The design of Si four N FOUR– SiC compounds entails accurate control over phase distribution, grain morphology, and interfacial bonding to maximize collaborating results.
Typically, SiC is presented as fine particulate reinforcement (ranging from submicron to 1 µm) within a Si five N four matrix, although functionally graded or split architectures are additionally discovered for specialized applications.
During sintering– usually through gas-pressure sintering (GPS) or warm pressing– SiC bits affect the nucleation and development kinetics of β-Si two N four grains, often advertising finer and even more consistently oriented microstructures.
This refinement boosts mechanical homogeneity and minimizes imperfection size, adding to enhanced toughness and reliability.
Interfacial compatibility in between the two phases is crucial; since both are covalent porcelains with similar crystallographic proportion and thermal development actions, they create coherent or semi-coherent limits that resist debonding under load.
Additives such as yttria (Y ₂ O SIX) and alumina (Al ₂ O ₃) are made use of as sintering help to advertise liquid-phase densification of Si ₃ N four without compromising the security of SiC.
Nonetheless, too much additional stages can break down high-temperature performance, so make-up and handling should be optimized to decrease lustrous grain limit movies.
2. Handling Techniques and Densification Obstacles

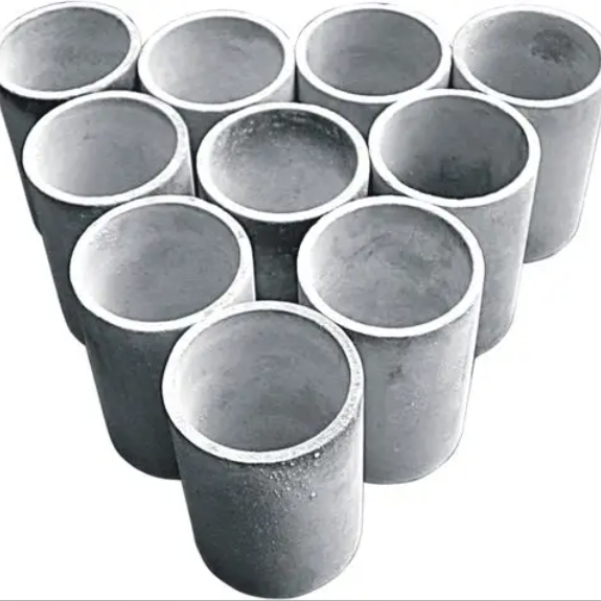

( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Prep Work and Shaping Approaches
Top Quality Si Two N FOUR– SiC compounds begin with homogeneous mixing of ultrafine, high-purity powders using wet ball milling, attrition milling, or ultrasonic dispersion in natural or liquid media.
Accomplishing uniform diffusion is crucial to stop load of SiC, which can serve as stress concentrators and decrease fracture durability.
Binders and dispersants are added to stabilize suspensions for shaping techniques such as slip casting, tape spreading, or injection molding, depending on the desired element geometry.
Green bodies are after that very carefully dried and debound to eliminate organics before sintering, a process needing regulated home heating prices to prevent breaking or buckling.
For near-net-shape manufacturing, additive strategies like binder jetting or stereolithography are arising, allowing complex geometries formerly unreachable with standard ceramic processing.
These methods require tailored feedstocks with optimized rheology and eco-friendly toughness, frequently involving polymer-derived porcelains or photosensitive resins packed with composite powders.
2.2 Sintering Mechanisms and Phase Stability
Densification of Si Six N FOUR– SiC compounds is challenging because of the strong covalent bonding and limited self-diffusion of nitrogen and carbon at functional temperature levels.
Liquid-phase sintering making use of rare-earth or alkaline earth oxides (e.g., Y TWO O ₃, MgO) reduces the eutectic temperature level and improves mass transport via a short-term silicate melt.
Under gas stress (usually 1– 10 MPa N TWO), this thaw facilitates reformation, solution-precipitation, and last densification while reducing decay of Si three N FOUR.
The existence of SiC impacts viscosity and wettability of the liquid phase, possibly changing grain development anisotropy and last structure.
Post-sintering warm therapies may be applied to take shape recurring amorphous stages at grain boundaries, improving high-temperature mechanical residential or commercial properties and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are routinely utilized to confirm phase purity, absence of undesirable secondary phases (e.g., Si ₂ N TWO O), and consistent microstructure.
3. Mechanical and Thermal Efficiency Under Lots
3.1 Strength, Strength, and Tiredness Resistance
Si Two N ₄– SiC compounds show remarkable mechanical efficiency compared to monolithic porcelains, with flexural strengths surpassing 800 MPa and fracture strength worths reaching 7– 9 MPa · m 1ST/ ².
The enhancing result of SiC particles hampers misplacement motion and crack proliferation, while the elongated Si six N ₄ grains remain to give strengthening via pull-out and linking mechanisms.
This dual-toughening method results in a product extremely resistant to effect, thermal cycling, and mechanical tiredness– important for rotating parts and architectural components in aerospace and energy systems.
Creep resistance stays excellent approximately 1300 ° C, credited to the stability of the covalent network and minimized grain limit sliding when amorphous phases are reduced.
Hardness values typically vary from 16 to 19 Grade point average, supplying exceptional wear and erosion resistance in abrasive settings such as sand-laden flows or moving contacts.
3.2 Thermal Management and Environmental Resilience
The enhancement of SiC dramatically boosts the thermal conductivity of the composite, usually increasing that of pure Si six N ₄ (which ranges from 15– 30 W/(m · K) )to 40– 60 W/(m · K) depending upon SiC material and microstructure.
This boosted warm transfer ability allows for much more reliable thermal management in elements revealed to intense localized home heating, such as burning liners or plasma-facing parts.
The composite maintains dimensional security under high thermal gradients, withstanding spallation and fracturing as a result of matched thermal expansion and high thermal shock criterion (R-value).
Oxidation resistance is one more essential benefit; SiC creates a protective silica (SiO TWO) layer upon direct exposure to oxygen at raised temperatures, which better densifies and secures surface area problems.
This passive layer protects both SiC and Si Five N FOUR (which likewise oxidizes to SiO two and N ₂), ensuring long-lasting toughness in air, vapor, or combustion ambiences.
4. Applications and Future Technological Trajectories
4.1 Aerospace, Power, and Industrial Systems
Si ₃ N ₄– SiC composites are significantly deployed in next-generation gas turbines, where they enable greater operating temperatures, enhanced gas performance, and decreased cooling demands.
Components such as generator blades, combustor liners, and nozzle overview vanes benefit from the material’s capability to hold up against thermal cycling and mechanical loading without substantial destruction.
In atomic power plants, especially high-temperature gas-cooled reactors (HTGRs), these composites work as fuel cladding or architectural supports as a result of their neutron irradiation tolerance and fission product retention capability.
In industrial setups, they are made use of in liquified metal handling, kiln furniture, and wear-resistant nozzles and bearings, where traditional metals would certainly fall short prematurely.
Their lightweight nature (density ~ 3.2 g/cm FOUR) also makes them attractive for aerospace propulsion and hypersonic car elements based on aerothermal home heating.
4.2 Advanced Production and Multifunctional Assimilation
Arising research study concentrates on establishing functionally graded Si six N ₄– SiC frameworks, where composition varies spatially to enhance thermal, mechanical, or electro-magnetic homes across a single element.
Hybrid systems integrating CMC (ceramic matrix composite) designs with fiber reinforcement (e.g., SiC_f/ SiC– Si Two N ₄) press the limits of damage resistance and strain-to-failure.
Additive manufacturing of these composites allows topology-optimized warm exchangers, microreactors, and regenerative air conditioning channels with inner latticework frameworks unreachable through machining.
Moreover, their intrinsic dielectric properties and thermal security make them prospects for radar-transparent radomes and antenna windows in high-speed platforms.
As needs expand for products that carry out accurately under extreme thermomechanical loads, Si three N ₄– SiC composites represent a critical innovation in ceramic engineering, combining robustness with performance in a solitary, lasting system.
To conclude, silicon nitride– silicon carbide composite porcelains exemplify the power of materials-by-design, leveraging the strengths of 2 sophisticated ceramics to develop a hybrid system capable of growing in the most severe operational environments.
Their continued growth will certainly play a central role beforehand tidy power, aerospace, and industrial modern technologies in the 21st century.
