1. Introduction to Oil Immersed Transformers
In the elaborate web of our modern-day electrical grid, transformers play an important duty, quietly tipping voltage up and down to ensure electricity can be transmitted effectively over fars away and distributed securely to our homes and industries. Among the various kinds readily available, the oil immersed transformer stands as a testament to tested reliability and sturdiness. For years, these workhorses have formed the backbone of power systems worldwide.
An oil submersed transformer is a type of electrical transformer that makes use of a specialized insulating oil as both a coolant and a shielding tool. This design is mainly used for tool to high-power applications, making it a foundation of electric infrastructure. This overview delves deep right into the globe of oil submersed power transformers and oil immersed circulation transformers, exploring their technology, applications, and their developing duty in an era of digitalization and renewable energy.
1.1 What is an Oil Immersed Transformer?
At its core, an oil submersed transformer contains a magnetic core and copper or aluminum windings housed inside a sealed storage tank filled with protecting oil. The primary feature of the oil is twofold:
1. Insulation: The oil has high dielectric stamina, properly protecting the high-voltage windings from the transformer’s core and based tank. This stops short circuits and electric breakdowns.
2. Air conditioning: As the transformer runs, the windings create considerable heat due to I ² R losses. The flowing oil absorbs this heat, convects it to the transformer’s tank walls, and dissipates it right into the surrounding air. Larger units usually include radiators or fins to raise the surface for much more effective air conditioning.
This dual-purpose use oil makes the oil immersed transformer exceptionally efficient and durable, with the ability of dealing with high tons and enduring short-term overloads much better than several dry-type alternatives.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Distribution Transformer
While all these systems are oil submersed transformers, they serve unique features within the power system network. Understanding the distinction is important.
An oil submersed power transformer is a heavyweight, generally utilized in transmission networks at generating terminals and significant substations. Their key duty is to “step-up” the voltage generated at the power plant to incredibly high levels (e.g., 138 kV, 230 kV, 500 kV and over) for effective long-distance transmission, and to “step-down” the voltage at obtaining substations for more distribution. They are characterized by their extremely high power scores (frequently going beyond 100 MVA), complex construction, and on-load tap changers for voltage guideline.
An oil involved circulation transformer, on the other hand, performs the last action in the power shipment chain. It takes the medium voltage from the transmission lines (e.g., 11 kV, 33 kV) and steps it down to the reduced voltages (e.g., 400/230 V) made use of by business and property customers. You typically find them on energy posts (pole-mounted) or on ground-level pads (pad-mounted). They are smaller sized, have lower power rankings (usually approximately 2,500 kVA), and are created for maximum performance at reduced, extra consistent lots.

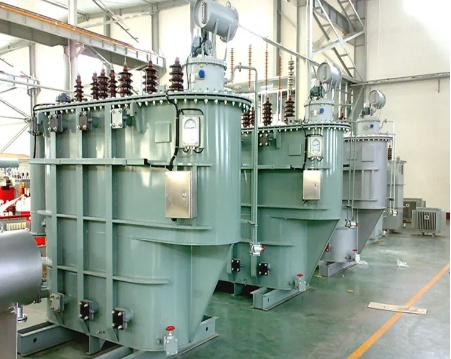

(Oil immersed power transformer)
2. Trick Benefits of Oil Immersed Transformers
The enduring appeal of the oil submersed transformer is not unintended. It supplies a collection of compelling advantages that make it the preferred choice for many demanding applications.
2.1 Superior Cooling and Overload Capability
The premium thermal capability of oil compared to air allows an oil immersed power transformer to take care of and dissipate warmth much more effectively. This converts to a greater overload capability. Throughout durations of optimal electrical energy demand, an oil submersed transformer can deal with momentary overloads without sustaining damages, a crucial feature for preserving grid security. The oil’s flow makes certain also warmth distribution, avoiding local locations that can degrade insulation gradually.
2.2 Boosted Insulation and Long Service Life
The mix of top notch mineral oil and thoroughly impregnated paper insulation produces a dielectric system of remarkable strength. This robust insulation system protects the transformer from voltage rises and transients, adding to an operational lifespan that can extend to 30-40 years or even more with correct upkeep. The secured storage tank additionally secures the inner elements from dampness, dirt, and various other atmospheric contaminants.
2.3 High Performance and Cost-Effectiveness
For high-power applications, the oil immersed transformer is frequently one of the most cost-effective option. The products used– mineral oil, steel container, and copper/aluminum windings– supply a beneficial balance of performance and price. The high efficiency of these transformers, specifically at their ranked tons, leads to lower energy losses over their life time, causing substantial expense savings for utility business and big industrial individuals.
3. Warm Subjects and Future Trends
The world of oil submersed transformers is not static. It is continuously evolving to fulfill new difficulties and incorporate with contemporary innovations.
3.1 Biodegradable and Fire-Resistant Oils
Environmental and safety issues are driving a substantial change away from conventional mineral oil. The marketplace is quickly taking on oil immersed transformers filled with biodegradable esters (synthetic or natural). These oils supply a greater fire point (making them K-class fireproof), are much less hazardous, and are conveniently eco-friendly, considerably decreasing the environmental impact in case of a leakage. This pattern is making oil immersed distribution transformers safer for setup in metropolitan areas and environmentally delicate locations.
3.2 Integration with Smart Grids and IoT
The modern oil engaged power transformer is becoming a smart node in the clever grid. Sensors are being incorporated to keep an eye on vital criteria in real-time, including:
Dissolved Gas Analysis (DGA): Identifying fault gases produced within the oil to predict incipient mistakes.
Temperature Surveillance: Tracking top-oil and hotspot temperature levels.
Load and Power Quality Monitoring.
This information, transmitted through IoT (Internet of Points) platforms, allows anticipating upkeep, prevents unintended outages, and optimizes transformer usage and lifespan.
3.3 Sustaining the Renewable Resource Shift
The international push for renewables is developing brand-new need for oil immersed transformers. Large solar ranches and wind power installments call for durable oil immersed power transformers to step up the created voltage to transmission degrees. Moreover, the recurring nature of renewables areas higher tension on grid components, and the tried and tested integrity and overload capacity of oil submersed transformers make them optimal for this vital role.
4. Option and Maintenance Finest Practices
Choosing the ideal transformer and maintaining it appropriately is essential to a trusted power system.
4.1 How to Pick the Right Oil Immersed Transformer
Picking between an oil submersed power transformer and an oil immersed circulation transformer depends upon the application. Key considerations consist of:
1. Voltage Degree and kVA Rating: Match the transformer’s specs to your system’s needs.
2. Application: Transmission substation, industrial plant, or business distribution.
3. Area: Indoor vs. exterior, environmental conditions, and fire safety guidelines (which might affect the selection of insulating oil).
4. Performance Standards: Comply with regional effectiveness requirements like DOE (United States) or EU CoC (Europe).
5. Budget plan: Think about both the preliminary funding expense and the complete price of possession, including losses.

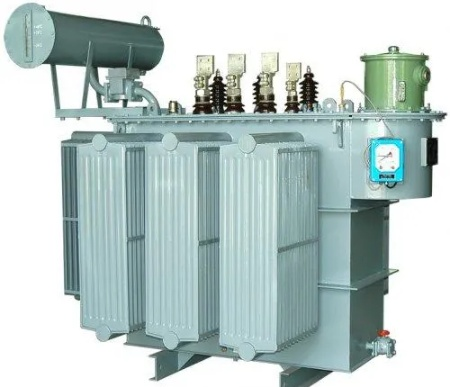

(Oil immersed distribution transformer)
4.2 Important Maintenance for Durability
Aggressive maintenance is essential for any type of oil immersed transformer. A comprehensive program needs to include:
1. Regular Oil Tasting and Screening: Periodic DGA and screening of dielectric stamina and dampness material are the most reliable means to assess the health and wellness of the transformer.
2. Bushing and Insulation Evaluation: Visual look for splits, contamination, or leakages.
3. Faucet Changer Maintenance: Normal evaluation and maintenance of on-load or off-load tap changers.
4. Keep it Clean and Dry: Ensuring the storage tank outside, radiators, and rests are clean and practical.
The oil submersed transformer, in its functions as both a high-capacity oil immersed power transformer and a common oil immersed distribution transformer, stays an irreplaceable element of our global energy framework. Its tested design, coupled with ongoing advancements in shielding liquids and digital surveillance, ensures it will remain to be a reliable, reliable, and intelligent service for powering our world for years ahead. As we develop the grids of the future, integrating more renewables and digital knowledge, the robust and adaptable oil submersed transformer will certainly be at the heart of it.
