1. The Atomic Design of Strength

(Silicon Carbide Ceramics)

To comprehend why Silicon Carbide porcelains are so challenging, we need to begin with their atomic framework. Silicon carbide is a compound of silicon and carbon, set up in a latticework where each atom is snugly bound to 4 next-door neighbors in a tetrahedral geometry. This three-dimensional network of strong covalent bonds provides the material its hallmark residential or commercial properties: high solidity, high melting point, and resistance to deformation. Unlike steels, which have complimentary electrons to lug both electricity and heat, Silicon Carbide is a semiconductor. Its electrons are extra tightly bound, which indicates it can perform electrical power under specific conditions but continues to be an exceptional thermal conductor through vibrations of the crystal latticework, known as phonons

One of the most remarkable facets of Silicon Carbide ceramics is their polymorphism. The exact same basic chemical make-up can crystallize into many different frameworks, known as polytypes, which vary only in the stacking series of their atomic layers. One of the most typical polytypes are 3C-SiC, 4H-SiC, and 6H-SiC, each with slightly different digital and thermal residential properties. This flexibility permits products researchers to select the excellent polytype for a particular application, whether it is for high-power electronic devices, high-temperature architectural parts, or optical devices

One more crucial function of Silicon Carbide porcelains is their strong covalent bonding, which leads to a high flexible modulus. This implies that the material is really rigid and withstands bending or stretching under lots. At the exact same time, Silicon Carbide porcelains show impressive flexural stamina, usually getting to numerous hundred megapascals. This combination of rigidity and strength makes them suitable for applications where dimensional security is vital, such as in precision machinery or aerospace components

2. The Alchemy of Manufacturing

Creating a Silicon Carbide ceramic part is not as straightforward as baking clay in a kiln. The procedure starts with the manufacturing of high-purity Silicon Carbide powder, which can be synthesized via numerous approaches, including the Acheson procedure, chemical vapor deposition, or laser-assisted synthesis. Each method has its benefits and limitations, yet the objective is always to create a powder with the right bit dimension, form, and pureness for the intended application

As soon as the powder is prepared, the following action is densification. This is where the real obstacle exists, as the solid covalent bonds in Silicon Carbide make it challenging for the bits to relocate and pack together. To overcome this, producers utilize a range of methods, such as pressureless sintering, hot pressing, or stimulate plasma sintering. In pressureless sintering, the powder is heated up in a heating system to a heat in the existence of a sintering aid, which aids to lower the activation power for densification. Warm pressing, on the various other hand, uses both warm and stress to the powder, allowing for faster and more total densification at reduced temperature levels

Another innovative method is the use of additive production, or 3D printing, to develop complicated Silicon Carbide ceramic elements. Methods like electronic light handling (DLP) and stereolithography permit the accurate control of the shape and size of the final product. In DLP, a photosensitive material consisting of Silicon Carbide powder is treated by exposure to light, layer by layer, to develop the desired shape. The printed part is then sintered at high temperature to eliminate the resin and densify the ceramic. This approach opens up brand-new opportunities for the production of intricate components that would be challenging or difficult to make using traditional methods

3. The Numerous Faces of Silicon Carbide Ceramics

The distinct homes of Silicon Carbide ceramics make them ideal for a variety of applications, from daily customer products to cutting-edge modern technologies. In the semiconductor industry, Silicon Carbide is used as a substrate product for high-power electronic gadgets, such as Schottky diodes and MOSFETs. These tools can operate at higher voltages, temperatures, and frequencies than typical silicon-based gadgets, making them perfect for applications in electrical lorries, renewable resource systems, and clever grids

In the field of aerospace, Silicon Carbide porcelains are made use of in parts that must hold up against severe temperature levels and mechanical stress and anxiety. For example, Silicon Carbide fiber-reinforced Silicon Carbide matrix compounds (SiC/SiC CMCs) are being established for use in jet engines and hypersonic vehicles. These materials can run at temperatures going beyond 1200 degrees celsius, offering considerable weight savings and boosted efficiency over traditional nickel-based superalloys

Silicon Carbide ceramics likewise play a vital role in the manufacturing of high-temperature heaters and kilns. Their high thermal conductivity and resistance to thermal shock make them suitable for elements such as heating elements, crucibles, and heating system furnishings. In the chemical processing sector, Silicon Carbide ceramics are utilized in equipment that should resist deterioration and wear, such as pumps, shutoffs, and warmth exchanger tubes. Their chemical inertness and high hardness make them suitable for dealing with hostile media, such as molten metals, acids, and alkalis

4. The Future of Silicon Carbide Ceramics

As research and development in materials science remain to development, the future of Silicon Carbide porcelains looks encouraging. New manufacturing techniques, such as additive production and nanotechnology, are opening up brand-new possibilities for the production of complex and high-performance parts. At the exact same time, the expanding need for energy-efficient and high-performance innovations is driving the adoption of Silicon Carbide ceramics in a large range of markets

One area of particular passion is the advancement of Silicon Carbide ceramics for quantum computing and quantum picking up. Particular polytypes of Silicon Carbide host problems that can work as quantum bits, or qubits, which can be manipulated at room temperature. This makes Silicon Carbide a promising system for the advancement of scalable and functional quantum technologies

An additional exciting growth is the use of Silicon Carbide ceramics in sustainable power systems. As an example, Silicon Carbide ceramics are being utilized in the manufacturing of high-efficiency solar cells and fuel cells, where their high thermal conductivity and chemical stability can boost the efficiency and long life of these tools. As the world remains to move in the direction of a much more sustainable future, Silicon Carbide ceramics are most likely to play a progressively essential function

5. Final thought: A Material for the Ages

( Silicon Carbide Ceramics)

To conclude, Silicon Carbide ceramics are an exceptional class of products that incorporate extreme hardness, high thermal conductivity, and chemical durability. Their special buildings make them perfect for a vast array of applications, from daily customer products to sophisticated technologies. As research and development in materials science remain to breakthrough, the future of Silicon Carbide porcelains looks appealing, with brand-new production strategies and applications arising constantly. Whether you are a designer, a scientist, or just somebody that values the marvels of contemporary materials, Silicon Carbide ceramics make certain to remain to astonish and motivate

6. Supplier

Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials and products. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested, please feel free to contact us.
Tags: Silicon Carbide Ceramics, Silicon Carbide Ceramic, Silicon Carbide

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Composition and Crystalline Phases of Alumina

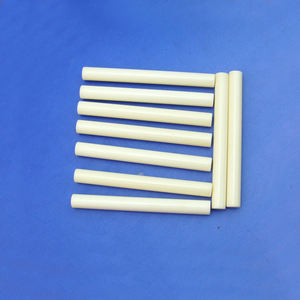

( Alumina Ceramic Tubes)

Alumina (Al Two O FIVE) ceramic tubes are mostly fabricated from high-purity aluminum oxide, with purity degrees normally varying from 90% to 99.8%, depending upon the desired application.

The leading crystalline phase in totally dense, high-temperature sintered tubes is α-alumina (diamond), which shows a trigonal crystal structure and outstanding thermodynamic security.

This stage shift from precursor hydroxides (e.g., boehmite or gibbsite) to α-alumina happens over 1100 ° C and causes a dense, interlocking microstructure that offers exceptional mechanical toughness and chemical resistance.

Greater purity grades (≥ 99.5%) optimize firmness, put on resistance, and dielectric efficiency, while lower-purity solutions may include additional phases like mullite or lustrous grain boundary phases to reduce expense or tailor thermal development.

The capacity to regulate grain dimension, porosity, and stage structure during processing enables designers to make improvements alumina tubes for details functional requirements throughout diverse commercial domains.

1.2 Mechanical, Thermal, and Electric Characteristic

Alumina ceramic tubes display an unique combination of physical buildings that make them important in demanding engineering settings.

With a Vickers firmness surpassing 1500 HV, they are extremely resistant to abrasion and erosion, outshining most steels and polymers in wear-prone systems.

Their compressive toughness can reach 2000 MPa, making it possible for architectural use under high mechanical loads, while flexural toughness usually ranges from 300 to 500 MPa, depending upon density and surface finish.

Thermally, alumina preserves security approximately 1700 ° C in oxidizing atmospheres, with a reduced coefficient of thermal growth (~ 8 ppm/K), contributing to exceptional thermal shock resistance when effectively developed.

Although its thermal conductivity (~ 30 W/(m · K)) is modest contrasted to steels or light weight aluminum nitride, it suffices for numerous high-temperature applications where electric insulation and architectural integrity are focused on.

Electrically, alumina is a superior insulator with quantity resistivity > 10 ¹⁴ Ω · centimeters and high dielectric toughness (> 15 kV/mm), making it perfect for electric feedthroughs, sensing unit real estates, and high-voltage insulation.

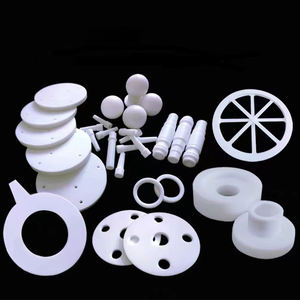

( Alumina Ceramic Tubes)

2. Production Processes and Dimensional Control

2.1 Shaping and Forming Techniques

The production of alumina ceramic tubes includes advanced developing methods tailored to accomplish precise measurements, wall thickness harmony, and surface area top quality.

Typical methods include extrusion, isostatic pressing, and slide spreading, each fit to various dimension ranges and efficiency needs.

Extrusion is extensively utilized for long, straight tubes with regular cross-sections, where a plasticized alumina paste is compelled via a die and cut to length prior to drying out and sintering.

For high-precision or thin-walled tubes, chilly isostatic pushing (CIP) uses uniform pressure from all directions to portable environment-friendly bodies, decreasing distortion and boosting thickness homogeneity.

Slip spreading, including the deposition of a colloidal alumina suspension (slip) onto a permeable plaster mold, is ideal for complicated or large-diameter geometries with variable wall surface density.

After creating, tubes go through careful drying to avoid breaking, adhered to by binder exhaustion and high-temperature sintering (1500– 1650 ° C )to accomplish full densification and dimensional security.

2.2 Ending Up and Quality Control

Post-sintering procedures such as centerless grinding, lapping, and brightening are utilized to achieve tight tolerances, smooth surface coatings, and specific inner and external sizes.

Resistances as limited as ± 0.01 mm are achievable for crucial applications in semiconductor processing or logical instrumentation.

Surface roughness can be lowered to Ra < 0.1 µm, minimizing fragment capturing and enhancing compatibility with ultra-high vacuum cleaner (UHV) or cleanroom settings.

Non-destructive screening methods– consisting of ultrasonic inspection, X-ray radiography, and color penetrant testing– make certain structural stability and lack of splits or spaces.

Dimensional metrology using coordinate measuring devices (CMM) or laser scanning confirms compliance with style specifications, particularly for custom or high-volume manufacturing runs.

3. Useful Performance in Harsh Environments

3.1 Resistance to Thermal and Chemical Deterioration

One of the most engaging advantages of alumina ceramic tubes is their capability to endure severe thermal and chemical problems where steels and polymers fall short.

They remain dimensionally stable and mechanically durable in constant solution at temperature levels above 1500 ° C, making them ideal for furnace liners, thermocouple protection sheaths, and radiant heating system tubes.

Their inertness to thaw steels (e.g., light weight aluminum, zinc, and non-ferrous alloys), liquified salts, and many acids (except hydrofluoric and warm phosphoric acid) allows use in metallurgical and chemical handling equipment.

In oxidizing and decreasing atmospheres, alumina does not break down or catalyze undesirable reactions, protecting process pureness in semiconductor and glass manufacturing.

This chemical inertness additionally protects against contamination in high-purity fluid dealing with systems, consisting of those made use of in pharmaceutical and food processing markets.

3.2 Electrical Insulation and Plasma Resistance

In electric and plasma atmospheres, alumina tubes function as shielding barriers that keep circuit stability under high voltage and raised temperature level.

They are made use of in high-intensity discharge (HID) lights, where they include ionized gases at temperatures going beyond 1000 ° C while withstanding electric capacities of several kilovolts.

In plasma etching and deposition systems, alumina tubes act as dielectric home windows or gas circulation parts, withstanding ion barrage and thermal biking without fracturing or outgassing.

Their low dielectric loss and high arc resistance stop electrical monitoring and failure, guaranteeing long life span in switchgear and power transmission elements.

These homes are essential in keeping process stability and devices integrity in sophisticated manufacturing and power systems.

4. Industrial and Emerging Applications

4.1 High-Temperature and Industrial Handling Solutions

Alumina ceramic tubes are important to a variety of commercial procedures that demand sturdiness under extreme problems.

In thermal handling, they act as protective sheaths for thermocouples and heating elements in kilns, heating systems, and warm therapy devices, shielding delicate elements from harsh atmospheres and mechanical wear.

In fluid handling, they transfer aggressive chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.

Their resistance to thermal shock permits fast home heating and cooling down cycles without failure, a vital advantage in cyclic industrial procedures.

In glass production, alumina tubes direct liquified glass circulations and assistance creating tools, withstanding disintegration from thick, high-temperature thaws.

4.2 Advanced Technologies and Future Assimilation

Beyond traditional industrial usages, alumina tubes are finding new duties in sophisticated technologies.

In semiconductor construction, ultra-pure alumina tubes are made use of in chemical vapor deposition (CVD) activators and ion implantation systems, where bit generation and metallic contamination should be lessened.

In medical tools, biocompatible alumina tubes work as insulating parts in medical devices, oral implants, and analysis sensors.

Research is checking out functionalized alumina tubes with embedded sensing units or conductive traces for smart structural tracking in aerospace and energy systems.

Additive production (3D printing) of alumina is emerging as an approach to create intricate tube geometries with internal channels or graded structures, making it possible for next-generation warmth exchangers and microreactors.

As sectors press towards greater performance, cleaner processes, and better reliability, alumina ceramic tubes continue to advance as allowing elements in the facilities of modern-day technology.

In summary, alumina ceramic tubes represent a mature yet dynamically advancing course of crafted products, integrating extraordinary thermal, mechanical, and electric performance in a solitary not natural conduit.

Their convenience throughout extreme settings guarantees their continued importance in both developed commercial systems and arising high-tech applications.

5. Distributor

Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials and products. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested, please feel free to contact us.
Tags: Alumina Ceramic Tubes, alumina tubes sizes, alumina tube

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Crystal Framework and Chemical Stability

(Aluminum Nitride Ceramic Substrates)

Light weight aluminum nitride (AlN) is a wide bandgap semiconductor ceramic with a hexagonal wurtzite crystal structure, made up of alternating layers of aluminum and nitrogen atoms bound through strong covalent interactions.

This durable atomic setup endows AlN with phenomenal thermal stability, maintaining structural stability up to 2200 ° C in inert environments and resisting decomposition under severe thermal cycling.

Unlike alumina (Al two O ₃), AlN is chemically inert to molten steels and several responsive gases, making it ideal for extreme environments such as semiconductor processing chambers and high-temperature furnaces.

Its high resistance to oxidation– developing only a slim safety Al ₂ O two layer at surface area upon exposure to air– makes certain lasting integrity without substantial deterioration of mass residential properties.

Furthermore, AlN displays superb electrical insulation with a resistivity surpassing 10 ¹⁴ Ω · centimeters and a dielectric stamina over 30 kV/mm, important for high-voltage applications.

1.2 Thermal Conductivity and Digital Attributes

One of the most specifying attribute of aluminum nitride is its superior thermal conductivity, typically varying from 140 to 180 W/(m · K )for commercial-grade substratums– over 5 times more than that of alumina (≈ 30 W/(m · K)).

This performance stems from the low atomic mass of nitrogen and aluminum, integrated with solid bonding and marginal factor issues, which enable effective phonon transport via the latticework.

Nevertheless, oxygen pollutants are especially damaging; even trace amounts (above 100 ppm) alternative to nitrogen websites, developing aluminum openings and scattering phonons, therefore considerably minimizing thermal conductivity.

High-purity AlN powders synthesized using carbothermal decrease or straight nitridation are vital to accomplish optimal heat dissipation.

Despite being an electrical insulator, AlN’s piezoelectric and pyroelectric properties make it valuable in sensing units and acoustic wave tools, while its broad bandgap (~ 6.2 eV) sustains procedure in high-power and high-frequency digital systems.

2. Manufacture Processes and Production Challenges

( Aluminum Nitride Ceramic Substrates)

2.1 Powder Synthesis and Sintering Strategies

Producing high-performance AlN substrates starts with the synthesis of ultra-fine, high-purity powder, generally accomplished via responses such as Al Two O THREE + 3C + N ₂ → 2AlN + 3CO (carbothermal decrease) or direct nitridation of aluminum metal: 2Al + N TWO → 2AlN.

The resulting powder should be meticulously crushed and doped with sintering aids like Y TWO O FOUR, CaO, or rare planet oxides to advertise densification at temperature levels between 1700 ° C and 1900 ° C under nitrogen atmosphere.

These additives form transient fluid phases that boost grain boundary diffusion, allowing full densification (> 99% theoretical thickness) while minimizing oxygen contamination.

Post-sintering annealing in carbon-rich environments can better lower oxygen material by eliminating intergranular oxides, thereby recovering peak thermal conductivity.

Accomplishing uniform microstructure with controlled grain dimension is important to stabilize mechanical strength, thermal efficiency, and manufacturability.

2.2 Substrate Shaping and Metallization

As soon as sintered, AlN ceramics are precision-ground and washed to meet limited dimensional resistances needed for digital product packaging, frequently to micrometer-level flatness.

Through-hole drilling, laser cutting, and surface area pattern allow assimilation into multilayer plans and hybrid circuits.

An essential step in substratum construction is metallization– the application of conductive layers (commonly tungsten, molybdenum, or copper) by means of processes such as thick-film printing, thin-film sputtering, or direct bonding of copper (DBC).

For DBC, copper foils are bound to AlN surfaces at elevated temperatures in a controlled environment, creating a solid interface appropriate for high-current applications.

Different strategies like active metal brazing (AMB) utilize titanium-containing solders to boost bond and thermal fatigue resistance, especially under duplicated power biking.

Appropriate interfacial design guarantees reduced thermal resistance and high mechanical reliability in running devices.

3. Performance Advantages in Electronic Equipment

3.1 Thermal Administration in Power Electronics

AlN substratums master handling warm generated by high-power semiconductor gadgets such as IGBTs, MOSFETs, and RF amplifiers utilized in electric automobiles, renewable energy inverters, and telecoms framework.

Efficient warmth extraction prevents local hotspots, minimizes thermal tension, and prolongs device life time by alleviating electromigration and delamination threats.

Compared to typical Al two O two substratums, AlN makes it possible for smaller plan sizes and higher power thickness as a result of its superior thermal conductivity, allowing designers to push efficiency borders without compromising reliability.

In LED illumination and laser diodes, where junction temperature level straight affects effectiveness and color security, AlN substratums considerably improve luminous result and functional life-span.

Its coefficient of thermal development (CTE ≈ 4.5 ppm/K) likewise carefully matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), lessening thermo-mechanical anxiety during thermal biking.

3.2 Electric and Mechanical Integrity

Past thermal efficiency, AlN supplies reduced dielectric loss (tan δ < 0.0005) and steady permittivity (εᵣ ≈ 8.9) across a wide frequency range, making it optimal for high-frequency microwave and millimeter-wave circuits.

Its hermetic nature protects against wetness ingress, eliminating corrosion threats in damp atmospheres– a vital benefit over organic substrates.

Mechanically, AlN has high flexural toughness (300– 400 MPa) and hardness (HV ≈ 1200), making certain sturdiness throughout handling, setting up, and area operation.

These features collectively contribute to improved system reliability, decreased failing prices, and reduced overall cost of ownership in mission-critical applications.

4. Applications and Future Technological Frontiers

4.1 Industrial, Automotive, and Defense Equipments

AlN ceramic substratums are now conventional in advanced power modules for commercial electric motor drives, wind and solar inverters, and onboard chargers in electric and hybrid cars.

In aerospace and defense, they support radar systems, electronic war devices, and satellite interactions, where performance under severe problems is non-negotiable.

Clinical imaging devices, including X-ray generators and MRI systems, additionally take advantage of AlN’s radiation resistance and signal integrity.

As electrification patterns accelerate across transport and energy industries, need for AlN substrates continues to expand, driven by the demand for small, efficient, and dependable power electronic devices.

4.2 Arising Assimilation and Sustainable Advancement

Future improvements concentrate on incorporating AlN into three-dimensional product packaging architectures, embedded passive elements, and heterogeneous integration systems integrating Si, SiC, and GaN devices.

Research right into nanostructured AlN films and single-crystal substratums aims to further increase thermal conductivity towards academic restrictions (> 300 W/(m · K)) for next-generation quantum and optoelectronic tools.

Initiatives to decrease production prices with scalable powder synthesis, additive manufacturing of complex ceramic frameworks, and recycling of scrap AlN are obtaining energy to boost sustainability.

Furthermore, modeling tools making use of limited component analysis (FEA) and machine learning are being used to maximize substrate style for certain thermal and electric tons.

Finally, aluminum nitride ceramic substratums represent a cornerstone innovation in contemporary electronic devices, uniquely connecting the space between electric insulation and phenomenal thermal conduction.

Their duty in enabling high-efficiency, high-reliability power systems emphasizes their critical relevance in the continuous evolution of electronic and power modern technologies.

5. Provider

Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials and products. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested, please feel free to contact us.
Tags: Aluminum Nitride Ceramic Substrates, aluminum nitride ceramic, aln aluminium nitride

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Crystallographic Phases and Surface Qualities

(Alumina Ceramic Chemical Catalyst Supports)

Alumina (Al ₂ O FIVE), particularly in its α-phase form, is one of one of the most widely used ceramic materials for chemical stimulant supports as a result of its excellent thermal stability, mechanical toughness, and tunable surface area chemistry.

It exists in several polymorphic forms, including γ, δ, θ, and α-alumina, with γ-alumina being one of the most common for catalytic applications because of its high particular area (100– 300 m TWO/ g )and porous structure.

Upon home heating over 1000 ° C, metastable change aluminas (e.g., γ, δ) slowly transform into the thermodynamically stable α-alumina (diamond structure), which has a denser, non-porous crystalline lattice and dramatically reduced surface (~ 10 m ²/ g), making it less suitable for active catalytic diffusion.

The high surface area of γ-alumina arises from its malfunctioning spinel-like framework, which consists of cation jobs and allows for the anchoring of metal nanoparticles and ionic species.

Surface hydroxyl teams (– OH) on alumina serve as Brønsted acid websites, while coordinatively unsaturated Al FIVE ⁺ ions act as Lewis acid websites, allowing the product to take part directly in acid-catalyzed reactions or support anionic intermediates.

These intrinsic surface homes make alumina not just an easy carrier yet an energetic contributor to catalytic mechanisms in many industrial processes.

1.2 Porosity, Morphology, and Mechanical Honesty

The efficiency of alumina as a driver support depends critically on its pore framework, which controls mass transportation, ease of access of active websites, and resistance to fouling.

Alumina sustains are crafted with controlled pore size circulations– varying from mesoporous (2– 50 nm) to macroporous (> 50 nm)– to stabilize high surface with reliable diffusion of catalysts and items.

High porosity boosts dispersion of catalytically active steels such as platinum, palladium, nickel, or cobalt, protecting against pile and making the most of the number of active sites each quantity.

Mechanically, alumina exhibits high compressive toughness and attrition resistance, essential for fixed-bed and fluidized-bed reactors where stimulant particles go through prolonged mechanical stress and anxiety and thermal biking.

Its reduced thermal development coefficient and high melting point (~ 2072 ° C )make sure dimensional security under extreme operating conditions, including raised temperature levels and harsh environments.

( Alumina Ceramic Chemical Catalyst Supports)

Furthermore, alumina can be made right into numerous geometries– pellets, extrudates, pillars, or foams– to maximize pressure decline, heat transfer, and activator throughput in massive chemical engineering systems.

2. Function and Devices in Heterogeneous Catalysis

2.1 Energetic Metal Diffusion and Stablizing

One of the key features of alumina in catalysis is to function as a high-surface-area scaffold for distributing nanoscale metal particles that function as energetic centers for chemical changes.

Via methods such as impregnation, co-precipitation, or deposition-precipitation, noble or shift metals are uniformly dispersed across the alumina surface, creating extremely spread nanoparticles with sizes frequently listed below 10 nm.

The solid metal-support interaction (SMSI) between alumina and steel fragments enhances thermal stability and hinders sintering– the coalescence of nanoparticles at heats– which would certainly or else minimize catalytic task with time.

For example, in oil refining, platinum nanoparticles supported on γ-alumina are vital elements of catalytic changing drivers utilized to generate high-octane gasoline.

In a similar way, in hydrogenation reactions, nickel or palladium on alumina assists in the addition of hydrogen to unsaturated organic substances, with the support protecting against particle migration and deactivation.

2.2 Promoting and Changing Catalytic Activity

Alumina does not simply function as a passive system; it proactively affects the digital and chemical behavior of supported steels.

The acidic surface area of γ-alumina can advertise bifunctional catalysis, where acid sites catalyze isomerization, cracking, or dehydration actions while steel websites handle hydrogenation or dehydrogenation, as seen in hydrocracking and changing processes.

Surface hydroxyl teams can join spillover phenomena, where hydrogen atoms dissociated on steel websites migrate onto the alumina surface area, extending the area of reactivity beyond the metal particle itself.

In addition, alumina can be doped with elements such as chlorine, fluorine, or lanthanum to modify its level of acidity, enhance thermal stability, or boost metal dispersion, customizing the support for particular reaction atmospheres.

These adjustments permit fine-tuning of stimulant performance in terms of selectivity, conversion efficiency, and resistance to poisoning by sulfur or coke deposition.

3. Industrial Applications and Process Integration

3.1 Petrochemical and Refining Processes

Alumina-supported catalysts are indispensable in the oil and gas market, specifically in catalytic breaking, hydrodesulfurization (HDS), and steam reforming.

In liquid catalytic splitting (FCC), although zeolites are the primary active stage, alumina is frequently included into the stimulant matrix to enhance mechanical strength and provide second breaking sites.

For HDS, cobalt-molybdenum or nickel-molybdenum sulfides are supported on alumina to eliminate sulfur from petroleum fractions, assisting satisfy ecological laws on sulfur material in gas.

In vapor methane reforming (SMR), nickel on alumina drivers transform methane and water into syngas (H TWO + CO), a vital action in hydrogen and ammonia manufacturing, where the support’s security under high-temperature steam is essential.

3.2 Ecological and Energy-Related Catalysis

Past refining, alumina-supported stimulants play vital roles in exhaust control and tidy power innovations.

In automobile catalytic converters, alumina washcoats work as the primary assistance for platinum-group metals (Pt, Pd, Rh) that oxidize CO and hydrocarbons and decrease NOₓ emissions.

The high surface of γ-alumina optimizes direct exposure of precious metals, minimizing the required loading and total cost.

In selective catalytic decrease (SCR) of NOₓ making use of ammonia, vanadia-titania catalysts are often sustained on alumina-based substratums to boost sturdiness and dispersion.

Additionally, alumina supports are being explored in emerging applications such as CO two hydrogenation to methanol and water-gas change reactions, where their security under decreasing problems is useful.

4. Difficulties and Future Development Directions

4.1 Thermal Security and Sintering Resistance

A significant restriction of conventional γ-alumina is its phase change to α-alumina at high temperatures, bring about disastrous loss of surface area and pore framework.

This limits its usage in exothermic reactions or regenerative processes involving routine high-temperature oxidation to remove coke down payments.

Research concentrates on supporting the shift aluminas through doping with lanthanum, silicon, or barium, which inhibit crystal growth and hold-up phase transformation approximately 1100– 1200 ° C.

An additional method involves developing composite supports, such as alumina-zirconia or alumina-ceria, to integrate high surface with improved thermal resilience.

4.2 Poisoning Resistance and Regeneration Capability

Stimulant deactivation as a result of poisoning by sulfur, phosphorus, or heavy steels remains a difficulty in industrial operations.

Alumina’s surface can adsorb sulfur substances, obstructing active websites or responding with supported steels to develop non-active sulfides.

Creating sulfur-tolerant solutions, such as utilizing fundamental promoters or protective coverings, is important for expanding catalyst life in sour atmospheres.

Similarly vital is the capacity to restore invested drivers with controlled oxidation or chemical cleaning, where alumina’s chemical inertness and mechanical effectiveness enable multiple regeneration cycles without architectural collapse.

In conclusion, alumina ceramic stands as a foundation product in heterogeneous catalysis, incorporating architectural robustness with functional surface chemistry.

Its function as a driver support prolongs far beyond straightforward immobilization, actively influencing response paths, improving steel diffusion, and allowing massive industrial procedures.

Ongoing improvements in nanostructuring, doping, and composite style remain to increase its capabilities in lasting chemistry and energy conversion technologies.

5. Distributor

Alumina Technology Co., Ltd focus on the research and development, production and sales of aluminum oxide powder, aluminum oxide products, aluminum oxide crucible, etc., serving the electronics, ceramics, chemical and other industries. Since its establishment in 2005, the company has been committed to providing customers with the best products and services. If you are looking for high quality tabular alumina price, please feel free to contact us. (nanotrun@yahoo.com)
Tags: Alumina Ceramic Chemical Catalyst Supports, alumina, alumina oxide

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Crystallographic Phases and Surface Area Qualities

(Alumina Ceramic Chemical Catalyst Supports)

Alumina (Al ₂ O FIVE), particularly in its α-phase form, is just one of one of the most extensively used ceramic materials for chemical driver supports because of its excellent thermal stability, mechanical toughness, and tunable surface area chemistry.

It exists in numerous polymorphic kinds, consisting of γ, δ, θ, and α-alumina, with γ-alumina being one of the most common for catalytic applications because of its high specific area (100– 300 m ²/ g )and porous structure.

Upon home heating over 1000 ° C, metastable transition aluminas (e.g., γ, δ) gradually transform into the thermodynamically secure α-alumina (corundum framework), which has a denser, non-porous crystalline lattice and dramatically reduced surface area (~ 10 m TWO/ g), making it less ideal for energetic catalytic diffusion.

The high surface of γ-alumina arises from its malfunctioning spinel-like structure, which consists of cation openings and enables the anchoring of steel nanoparticles and ionic species.

Surface area hydroxyl groups (– OH) on alumina act as Brønsted acid sites, while coordinatively unsaturated Al SIX ⁺ ions function as Lewis acid sites, enabling the material to get involved straight in acid-catalyzed responses or support anionic intermediates.

These inherent surface residential or commercial properties make alumina not just a passive carrier however an energetic contributor to catalytic devices in many commercial procedures.

1.2 Porosity, Morphology, and Mechanical Stability

The performance of alumina as a catalyst support depends critically on its pore framework, which regulates mass transport, availability of energetic websites, and resistance to fouling.

Alumina sustains are engineered with regulated pore size circulations– ranging from mesoporous (2– 50 nm) to macroporous (> 50 nm)– to stabilize high surface area with effective diffusion of catalysts and items.

High porosity improves diffusion of catalytically energetic metals such as platinum, palladium, nickel, or cobalt, stopping load and taking full advantage of the variety of active websites per unit quantity.

Mechanically, alumina displays high compressive strength and attrition resistance, vital for fixed-bed and fluidized-bed activators where catalyst fragments undergo prolonged mechanical tension and thermal cycling.

Its reduced thermal development coefficient and high melting factor (~ 2072 ° C )make sure dimensional security under harsh operating conditions, consisting of elevated temperatures and harsh environments.

( Alumina Ceramic Chemical Catalyst Supports)

Furthermore, alumina can be fabricated into numerous geometries– pellets, extrudates, pillars, or foams– to maximize stress decline, heat transfer, and reactor throughput in large chemical engineering systems.

2. Function and Systems in Heterogeneous Catalysis

2.1 Active Metal Diffusion and Stablizing

One of the primary features of alumina in catalysis is to act as a high-surface-area scaffold for distributing nanoscale steel fragments that serve as energetic centers for chemical transformations.

With strategies such as impregnation, co-precipitation, or deposition-precipitation, honorable or shift steels are uniformly distributed throughout the alumina surface area, forming extremely distributed nanoparticles with diameters often below 10 nm.

The solid metal-support interaction (SMSI) in between alumina and metal fragments boosts thermal security and prevents sintering– the coalescence of nanoparticles at high temperatures– which would otherwise reduce catalytic task gradually.

For example, in petroleum refining, platinum nanoparticles supported on γ-alumina are crucial elements of catalytic changing drivers made use of to produce high-octane gasoline.

Likewise, in hydrogenation responses, nickel or palladium on alumina facilitates the addition of hydrogen to unsaturated natural compounds, with the assistance stopping fragment movement and deactivation.

2.2 Promoting and Changing Catalytic Task

Alumina does not just work as a passive system; it proactively influences the digital and chemical actions of sustained steels.

The acidic surface area of γ-alumina can promote bifunctional catalysis, where acid websites militarize isomerization, fracturing, or dehydration steps while steel sites take care of hydrogenation or dehydrogenation, as seen in hydrocracking and changing processes.

Surface area hydroxyl groups can participate in spillover sensations, where hydrogen atoms dissociated on steel sites move onto the alumina surface, prolonging the zone of reactivity beyond the metal fragment itself.

Moreover, alumina can be doped with elements such as chlorine, fluorine, or lanthanum to customize its level of acidity, enhance thermal security, or boost metal diffusion, customizing the assistance for specific response atmospheres.

These adjustments permit fine-tuning of driver performance in regards to selectivity, conversion efficiency, and resistance to poisoning by sulfur or coke deposition.

3. Industrial Applications and Process Integration

3.1 Petrochemical and Refining Processes

Alumina-supported stimulants are crucial in the oil and gas market, especially in catalytic cracking, hydrodesulfurization (HDS), and steam reforming.

In liquid catalytic breaking (FCC), although zeolites are the primary energetic phase, alumina is typically incorporated right into the driver matrix to boost mechanical toughness and supply secondary breaking websites.

For HDS, cobalt-molybdenum or nickel-molybdenum sulfides are sustained on alumina to eliminate sulfur from crude oil fractions, assisting satisfy environmental guidelines on sulfur web content in gas.

In vapor methane changing (SMR), nickel on alumina stimulants convert methane and water into syngas (H TWO + CO), an essential step in hydrogen and ammonia manufacturing, where the assistance’s security under high-temperature steam is critical.

3.2 Ecological and Energy-Related Catalysis

Beyond refining, alumina-supported drivers play crucial functions in exhaust control and clean power technologies.

In vehicle catalytic converters, alumina washcoats work as the primary assistance for platinum-group metals (Pt, Pd, Rh) that oxidize CO and hydrocarbons and minimize NOₓ exhausts.

The high area of γ-alumina makes the most of direct exposure of rare-earth elements, lowering the needed loading and general expense.

In discerning catalytic reduction (SCR) of NOₓ making use of ammonia, vanadia-titania catalysts are commonly supported on alumina-based substratums to boost durability and diffusion.

Additionally, alumina supports are being explored in emerging applications such as carbon monoxide two hydrogenation to methanol and water-gas shift reactions, where their security under lowering problems is helpful.

4. Challenges and Future Development Instructions

4.1 Thermal Security and Sintering Resistance

A major constraint of conventional γ-alumina is its phase change to α-alumina at heats, resulting in disastrous loss of surface area and pore framework.

This restricts its usage in exothermic responses or regenerative processes entailing regular high-temperature oxidation to remove coke down payments.

Research study focuses on maintaining the change aluminas through doping with lanthanum, silicon, or barium, which hinder crystal development and delay phase change approximately 1100– 1200 ° C.

An additional technique entails developing composite supports, such as alumina-zirconia or alumina-ceria, to incorporate high surface area with boosted thermal resilience.

4.2 Poisoning Resistance and Regrowth Capacity

Catalyst deactivation because of poisoning by sulfur, phosphorus, or heavy steels remains a challenge in industrial procedures.

Alumina’s surface can adsorb sulfur compounds, blocking active websites or responding with supported metals to form non-active sulfides.

Developing sulfur-tolerant solutions, such as utilizing fundamental promoters or safety layers, is essential for prolonging catalyst life in sour atmospheres.

Just as crucial is the capability to restore invested stimulants via regulated oxidation or chemical cleaning, where alumina’s chemical inertness and mechanical toughness allow for several regrowth cycles without structural collapse.

In conclusion, alumina ceramic stands as a cornerstone product in heterogeneous catalysis, incorporating structural toughness with versatile surface chemistry.

Its function as a driver support extends far beyond simple immobilization, actively influencing response paths, boosting metal dispersion, and making it possible for large commercial processes.

Continuous advancements in nanostructuring, doping, and composite style continue to broaden its abilities in lasting chemistry and power conversion technologies.

5. Vendor

Alumina Technology Co., Ltd focus on the research and development, production and sales of aluminum oxide powder, aluminum oxide products, aluminum oxide crucible, etc., serving the electronics, ceramics, chemical and other industries. Since its establishment in 2005, the company has been committed to providing customers with the best products and services. If you are looking for high quality tabular alumina price, please feel free to contact us. (nanotrun@yahoo.com)
Tags: Alumina Ceramic Chemical Catalyst Supports, alumina, alumina oxide

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 The B ₄ C Stoichiometry and Atomic Style

(Boron Carbide)

Boron carbide (B FOUR C) powder is a non-oxide ceramic product made up mostly of boron and carbon atoms, with the suitable stoichiometric formula B FOUR C, though it shows a variety of compositional resistance from around B ₄ C to B ₁₀. FIVE C.

Its crystal framework comes from the rhombohedral system, defined by a network of 12-atom icosahedra– each consisting of 11 boron atoms and 1 carbon atom– connected by direct B– C or C– B– C straight triatomic chains along the [111] direction.

This unique plan of covalently bonded icosahedra and linking chains imparts phenomenal solidity and thermal security, making boron carbide among the hardest known products, exceeded just by cubic boron nitride and diamond.

The presence of architectural issues, such as carbon deficiency in the straight chain or substitutional problem within the icosahedra, substantially influences mechanical, digital, and neutron absorption residential or commercial properties, demanding specific control during powder synthesis.

These atomic-level functions also contribute to its low density (~ 2.52 g/cm ³), which is critical for light-weight armor applications where strength-to-weight proportion is extremely important.

1.2 Stage Pureness and Impurity Results

High-performance applications require boron carbide powders with high phase purity and minimal contamination from oxygen, metallic impurities, or additional phases such as boron suboxides (B TWO O TWO) or totally free carbon.

Oxygen pollutants, often introduced during processing or from raw materials, can form B ₂ O six at grain limits, which volatilizes at high temperatures and produces porosity throughout sintering, drastically breaking down mechanical stability.

Metal pollutants like iron or silicon can act as sintering aids yet might also develop low-melting eutectics or additional phases that compromise hardness and thermal security.

Therefore, purification methods such as acid leaching, high-temperature annealing under inert ambiences, or use of ultra-pure forerunners are important to produce powders suitable for advanced porcelains.

The particle size circulation and particular surface area of the powder likewise play vital duties in determining sinterability and final microstructure, with submicron powders typically making it possible for higher densification at lower temperatures.

2. Synthesis and Handling of Boron Carbide Powder

(Boron Carbide)

2.1 Industrial and Laboratory-Scale Production Approaches

Boron carbide powder is mostly created through high-temperature carbothermal decrease of boron-containing precursors, a lot of frequently boric acid (H TWO BO THREE) or boron oxide (B ₂ O SIX), using carbon sources such as petroleum coke or charcoal.

The reaction, commonly performed in electrical arc heating systems at temperature levels in between 1800 ° C and 2500 ° C, continues as: 2B TWO O SIX + 7C → B FOUR C + 6CO.

This approach returns crude, irregularly shaped powders that call for comprehensive milling and classification to achieve the fine particle dimensions required for sophisticated ceramic processing.

Alternative methods such as laser-induced chemical vapor deposition (CVD), plasma-assisted synthesis, and mechanochemical processing offer paths to finer, a lot more uniform powders with far better control over stoichiometry and morphology.

Mechanochemical synthesis, for instance, involves high-energy round milling of essential boron and carbon, allowing room-temperature or low-temperature development of B ₄ C through solid-state reactions driven by power.

These advanced methods, while extra expensive, are gaining interest for producing nanostructured powders with improved sinterability and functional efficiency.

2.2 Powder Morphology and Surface Engineering

The morphology of boron carbide powder– whether angular, round, or nanostructured– straight influences its flowability, packaging density, and reactivity throughout loan consolidation.

Angular particles, common of smashed and machine made powders, often tend to interlace, enhancing environment-friendly toughness but potentially introducing thickness gradients.

Round powders, commonly generated using spray drying or plasma spheroidization, offer premium circulation characteristics for additive production and hot pushing applications.

Surface alteration, consisting of finishing with carbon or polymer dispersants, can enhance powder diffusion in slurries and protect against load, which is critical for achieving consistent microstructures in sintered parts.

In addition, pre-sintering therapies such as annealing in inert or reducing ambiences help remove surface area oxides and adsorbed varieties, boosting sinterability and last transparency or mechanical strength.

3. Useful Residences and Performance Metrics

3.1 Mechanical and Thermal Habits

Boron carbide powder, when consolidated right into mass porcelains, exhibits outstanding mechanical homes, consisting of a Vickers solidity of 30– 35 Grade point average, making it among the hardest engineering products offered.

Its compressive strength exceeds 4 GPa, and it maintains architectural stability at temperatures approximately 1500 ° C in inert environments, although oxidation comes to be substantial above 500 ° C in air as a result of B ₂ O two development.

The material’s reduced thickness (~ 2.5 g/cm FIVE) provides it an extraordinary strength-to-weight proportion, a key advantage in aerospace and ballistic protection systems.

However, boron carbide is naturally weak and prone to amorphization under high-stress effect, a sensation known as “loss of shear stamina,” which limits its effectiveness in particular shield circumstances entailing high-velocity projectiles.

Study right into composite formation– such as integrating B ₄ C with silicon carbide (SiC) or carbon fibers– intends to reduce this limitation by enhancing crack toughness and power dissipation.

3.2 Neutron Absorption and Nuclear Applications

Among the most crucial useful characteristics of boron carbide is its high thermal neutron absorption cross-section, largely due to the ¹⁰ B isotope, which undergoes the ¹⁰ B(n, α)seven Li nuclear reaction upon neutron capture.

This residential or commercial property makes B FOUR C powder an excellent material for neutron protecting, control rods, and closure pellets in atomic power plants, where it effectively absorbs excess neutrons to control fission responses.

The resulting alpha fragments and lithium ions are short-range, non-gaseous items, decreasing architectural damages and gas build-up within reactor elements.

Enrichment of the ¹⁰ B isotope additionally improves neutron absorption efficiency, making it possible for thinner, more efficient protecting materials.

Additionally, boron carbide’s chemical stability and radiation resistance ensure long-lasting performance in high-radiation settings.

4. Applications in Advanced Manufacturing and Modern Technology

4.1 Ballistic Defense and Wear-Resistant Elements

The primary application of boron carbide powder remains in the production of lightweight ceramic shield for personnel, vehicles, and aircraft.

When sintered right into floor tiles and integrated right into composite armor systems with polymer or metal backings, B FOUR C successfully dissipates the kinetic power of high-velocity projectiles with fracture, plastic contortion of the penetrator, and energy absorption devices.

Its reduced density allows for lighter shield systems contrasted to options like tungsten carbide or steel, crucial for military mobility and gas performance.

Beyond protection, boron carbide is made use of in wear-resistant components such as nozzles, seals, and reducing devices, where its severe solidity makes certain lengthy life span in rough environments.

4.2 Additive Manufacturing and Emerging Technologies

Current advances in additive production (AM), particularly binder jetting and laser powder bed fusion, have actually opened up brand-new methods for producing complex-shaped boron carbide components.

High-purity, round B ₄ C powders are crucial for these processes, needing superb flowability and packaging density to make sure layer uniformity and part stability.

While difficulties remain– such as high melting factor, thermal stress splitting, and residual porosity– study is proceeding toward fully thick, net-shape ceramic parts for aerospace, nuclear, and energy applications.

In addition, boron carbide is being discovered in thermoelectric devices, abrasive slurries for accuracy sprucing up, and as an enhancing phase in metal matrix compounds.

In recap, boron carbide powder stands at the leading edge of advanced ceramic materials, integrating severe solidity, low thickness, and neutron absorption capacity in a solitary inorganic system.

Via accurate control of composition, morphology, and processing, it enables modern technologies running in one of the most demanding settings, from field of battle shield to nuclear reactor cores.

As synthesis and manufacturing techniques continue to develop, boron carbide powder will remain a crucial enabler of next-generation high-performance products.

5. Provider

RBOSCHCO is a trusted global chemical material supplier & manufacturer with over 12 years experience in providing super high-quality chemicals and Nanomaterials. The company export to many countries, such as USA, Canada, Europe, UAE, South Africa, Tanzania, Kenya, Egypt, Nigeria, Cameroon, Uganda, Turkey, Mexico, Azerbaijan, Belgium, Cyprus, Czech Republic, Brazil, Chile, Argentina, Dubai, Japan, Korea, Vietnam, Thailand, Malaysia, Indonesia, Australia,Germany, France, Italy, Portugal etc. As a leading nanotechnology development manufacturer, RBOSCHCO dominates the market. Our professional work team provides perfect solutions to help improve the efficiency of various industries, create value, and easily cope with various challenges. If you are looking for boron in water treatment, please send an email to: sales1@rboschco.com
Tags: boron carbide,b4c boron carbide,boron carbide price

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Amorphous Network and Thermal Stability

(Quartz Crucibles)

Quartz crucibles are high-temperature containers produced from merged silica, a synthetic type of silicon dioxide (SiO TWO) originated from the melting of all-natural quartz crystals at temperatures going beyond 1700 ° C.

Unlike crystalline quartz, fused silica has an amorphous three-dimensional network of corner-sharing SiO ₄ tetrahedra, which imparts phenomenal thermal shock resistance and dimensional security under fast temperature adjustments.

This disordered atomic framework protects against bosom along crystallographic airplanes, making fused silica less susceptible to splitting during thermal cycling contrasted to polycrystalline ceramics.

The material displays a reduced coefficient of thermal expansion (~ 0.5 × 10 ⁻⁶/ K), one of the lowest amongst engineering materials, enabling it to stand up to severe thermal gradients without fracturing– a crucial building in semiconductor and solar battery manufacturing.

Merged silica likewise maintains exceptional chemical inertness against the majority of acids, molten metals, and slags, although it can be slowly etched by hydrofluoric acid and hot phosphoric acid.

Its high softening factor (~ 1600– 1730 ° C, relying on purity and OH material) allows continual procedure at elevated temperature levels required for crystal growth and steel refining processes.

1.2 Pureness Grading and Micronutrient Control

The performance of quartz crucibles is extremely depending on chemical purity, especially the focus of metal pollutants such as iron, sodium, potassium, light weight aluminum, and titanium.

Even trace amounts (parts per million level) of these impurities can migrate right into liquified silicon during crystal growth, deteriorating the electrical properties of the resulting semiconductor material.

High-purity qualities utilized in electronics making generally include over 99.95% SiO TWO, with alkali steel oxides restricted to much less than 10 ppm and change steels listed below 1 ppm.

Contaminations stem from raw quartz feedstock or processing devices and are lessened with cautious option of mineral sources and purification methods like acid leaching and flotation.

Furthermore, the hydroxyl (OH) content in fused silica affects its thermomechanical habits; high-OH kinds use far better UV transmission however reduced thermal security, while low-OH variants are favored for high-temperature applications as a result of decreased bubble development.

( Quartz Crucibles)

2. Manufacturing Process and Microstructural Design

2.1 Electrofusion and Developing Methods

Quartz crucibles are mainly created through electrofusion, a process in which high-purity quartz powder is fed right into a turning graphite mold and mildew within an electric arc heater.

An electrical arc produced between carbon electrodes melts the quartz bits, which strengthen layer by layer to form a smooth, dense crucible form.

This technique generates a fine-grained, homogeneous microstructure with marginal bubbles and striae, crucial for consistent warm distribution and mechanical stability.

Different approaches such as plasma combination and fire fusion are used for specialized applications calling for ultra-low contamination or particular wall density accounts.

After casting, the crucibles undertake regulated cooling (annealing) to soothe inner anxieties and protect against spontaneous cracking during solution.

Surface ending up, consisting of grinding and polishing, ensures dimensional precision and decreases nucleation websites for unwanted crystallization during usage.

2.2 Crystalline Layer Design and Opacity Control

A specifying function of modern-day quartz crucibles, specifically those utilized in directional solidification of multicrystalline silicon, is the engineered internal layer structure.

Throughout production, the inner surface area is commonly treated to advertise the development of a slim, controlled layer of cristobalite– a high-temperature polymorph of SiO ₂– upon very first home heating.

This cristobalite layer serves as a diffusion obstacle, reducing straight communication between molten silicon and the underlying fused silica, therefore reducing oxygen and metal contamination.

Furthermore, the presence of this crystalline phase enhances opacity, boosting infrared radiation absorption and promoting more consistent temperature level circulation within the melt.

Crucible designers very carefully stabilize the density and continuity of this layer to stay clear of spalling or fracturing due to volume adjustments during phase transitions.

3. Functional Performance in High-Temperature Applications

3.1 Role in Silicon Crystal Development Processes

Quartz crucibles are vital in the production of monocrystalline and multicrystalline silicon, working as the primary container for molten silicon in Czochralski (CZ) and directional solidification systems (DS).

In the CZ process, a seed crystal is dipped right into liquified silicon held in a quartz crucible and gradually drew upward while turning, enabling single-crystal ingots to develop.

Although the crucible does not directly call the expanding crystal, interactions between molten silicon and SiO two walls lead to oxygen dissolution right into the thaw, which can affect service provider life time and mechanical stamina in ended up wafers.

In DS procedures for photovoltaic-grade silicon, massive quartz crucibles make it possible for the regulated air conditioning of hundreds of kgs of liquified silicon into block-shaped ingots.

Below, finishings such as silicon nitride (Si five N ₄) are applied to the inner surface area to stop attachment and facilitate very easy launch of the strengthened silicon block after cooling.

3.2 Destruction Mechanisms and Life Span Limitations

In spite of their toughness, quartz crucibles degrade throughout duplicated high-temperature cycles as a result of a number of interrelated systems.

Viscous circulation or deformation happens at prolonged direct exposure over 1400 ° C, leading to wall thinning and loss of geometric stability.

Re-crystallization of merged silica right into cristobalite produces interior stress and anxieties as a result of volume growth, potentially triggering cracks or spallation that infect the thaw.

Chemical disintegration develops from decrease responses between molten silicon and SiO TWO: SiO ₂ + Si → 2SiO(g), producing volatile silicon monoxide that runs away and compromises the crucible wall.

Bubble formation, driven by trapped gases or OH groups, better jeopardizes structural strength and thermal conductivity.

These degradation paths limit the variety of reuse cycles and demand exact process control to make the most of crucible life expectancy and product yield.

4. Emerging Advancements and Technological Adaptations

4.1 Coatings and Composite Alterations

To enhance performance and resilience, progressed quartz crucibles integrate useful finishings and composite structures.

Silicon-based anti-sticking layers and drugged silica finishings improve launch characteristics and decrease oxygen outgassing throughout melting.

Some producers integrate zirconia (ZrO ₂) fragments into the crucible wall surface to boost mechanical toughness and resistance to devitrification.

Research study is continuous into totally clear or gradient-structured crucibles created to enhance radiant heat transfer in next-generation solar heater designs.

4.2 Sustainability and Recycling Obstacles

With increasing demand from the semiconductor and photovoltaic or pv industries, lasting use of quartz crucibles has become a priority.

Spent crucibles polluted with silicon residue are hard to recycle as a result of cross-contamination risks, bring about considerable waste generation.

Efforts concentrate on creating reusable crucible liners, boosted cleaning methods, and closed-loop recycling systems to recuperate high-purity silica for second applications.

As tool efficiencies require ever-higher material purity, the role of quartz crucibles will certainly remain to develop with technology in materials science and process engineering.

In recap, quartz crucibles represent an important interface between basic materials and high-performance digital products.

Their unique combination of pureness, thermal strength, and structural design enables the fabrication of silicon-based technologies that power contemporary computer and renewable resource systems.

5. Provider

Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials such as Alumina Ceramic Balls. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested, please feel free to contact us.(nanotrun@yahoo.com)
Tags: quartz crucibles,fused quartz crucible,quartz crucible for silicon

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Make-up and Crystallographic Security of Alumina

(Alumina Ceramic Nozzles)

Alumina (Al ₂ O FOUR), particularly in its alpha phase, is a fully oxidized ceramic with a corundum-type hexagonal close-packed framework, using remarkable thermal stability, chemical inertness, and mechanical stamina at elevated temperatures.

High-purity alumina (generally 95– 99.9% Al ₂ O SIX) is chosen for nozzle applications due to its marginal impurity material, which decreases grain limit weakening and boosts resistance to thermal and chemical degradation.

The microstructure, including fine, equiaxed grains, is crafted throughout sintering to lessen porosity and make best use of thickness, directly affecting the nozzle’s erosion resistance and architectural integrity under high-velocity fluid circulation.

Ingredients such as MgO are often presented in trace total up to inhibit abnormal grain development during sintering, making certain an uniform microstructure that supports lasting integrity.

1.2 Mechanical and Thermal Qualities Relevant to Nozzle Performance

Alumina ceramics display a Vickers hardness surpassing 1800 HV, making them extremely resistant to rough wear from particulate-laden liquids, an essential feature in applications such as sandblasting and rough waterjet cutting.

With a flexural strength of 300– 500 MPa and a compressive toughness over 2 Grade point average, alumina nozzles maintain dimensional security under high-pressure procedure, usually varying from 100 to 400 MPa in industrial systems.

Thermally, alumina preserves its mechanical homes approximately 1600 ° C, with a reduced thermal development coefficient (~ 8 × 10 ⁻⁶/ K) that offers exceptional resistance to thermal shock– important when subjected to rapid temperature variations during start-up or closure cycles.

Its thermal conductivity (~ 30 W/m · K) suffices to dissipate local warmth without causing thermal slopes that could cause cracking, stabilizing insulation and heat administration needs.

2. Production Processes and Geometric Accuracy

2.1 Shaping and Sintering Methods for Nozzle Fabrication

The manufacturing of alumina ceramic nozzles starts with high-purity alumina powder, which is processed into an environment-friendly body utilizing methods such as cold isostatic pressing (CIP), injection molding, or extrusion, depending upon the desired geometry and set dimension.

( Alumina Ceramic Nozzles)

Cold isostatic pushing uses uniform stress from all instructions, yielding an uniform density circulation important for reducing flaws throughout sintering.

Injection molding is utilized for intricate nozzle forms with internal tapers and great orifices, enabling high dimensional accuracy and reproducibility in automation.

After shaping, the environment-friendly compacts undergo a two-stage thermal therapy: debinding to eliminate natural binders and sintering at temperature levels in between 1500 ° C and 1650 ° C to achieve near-theoretical density with solid-state diffusion.

Precise control of sintering ambience and heating/cooling rates is necessary to protect against bending, cracking, or grain coarsening that can endanger nozzle performance.

2.2 Machining, Sprucing Up, and Quality Assurance

Post-sintering, alumina nozzles usually require precision machining to attain tight tolerances, specifically in the orifice region where flow dynamics are most sensitive to surface finish and geometry.

Ruby grinding and splashing are made use of to fine-tune inner and outside surfaces, attaining surface area roughness values below 0.1 µm, which decreases circulation resistance and avoids fragment accumulation.

The orifice, normally ranging from 0.3 to 3.0 mm in diameter, have to be devoid of micro-cracks and chamfers to ensure laminar circulation and consistent spray patterns.

Non-destructive testing approaches such as optical microscopy, X-ray inspection, and pressure biking examinations are employed to validate structural integrity and performance uniformity prior to implementation.

Custom-made geometries, consisting of convergent-divergent (de Laval) profiles for supersonic circulation or multi-hole arrays for fan spray patterns, are increasingly made making use of advanced tooling and computer-aided design (CAD)-driven manufacturing.

3. Useful Benefits Over Different Nozzle Products

3.1 Superior Disintegration and Corrosion Resistance

Compared to metal (e.g., tungsten carbide, stainless-steel) or polymer nozzles, alumina exhibits much greater resistance to unpleasant wear, particularly in settings including silica sand, garnet, or various other difficult abrasives made use of in surface area prep work and cutting.

Metal nozzles weaken swiftly because of micro-fracturing and plastic deformation, calling for frequent replacement, whereas alumina nozzles can last 3– 5 times much longer, substantially minimizing downtime and functional prices.

In addition, alumina is inert to the majority of acids, antacid, and solvents, making it appropriate for chemical splashing, etching, and cleansing procedures where metallic parts would corrode or infect the fluid.

This chemical security is especially valuable in semiconductor production, pharmaceutical processing, and food-grade applications calling for high pureness.

3.2 Thermal and Electric Insulation Characteristic

Alumina’s high electric resistivity (> 10 ¹⁴ Ω · cm) makes it optimal for usage in electrostatic spray finish systems, where it avoids cost leak and makes certain consistent paint atomization.

Its thermal insulation capacity permits safe operation in high-temperature spraying environments, such as flame spraying or thermal cleaning, without warm transfer to bordering parts.

Unlike steels, alumina does not catalyze undesirable chemical reactions in reactive liquid streams, protecting the stability of delicate formulas.

4. Industrial Applications and Technical Impact

4.1 Roles in Abrasive Jet Machining and Surface Therapy

Alumina ceramic nozzles are indispensable in rough blowing up systems for corrosion elimination, paint removing, and surface area texturing in automotive, aerospace, and building and construction sectors.

Their ability to preserve a consistent orifice diameter over expanded use makes sure consistent abrasive rate and impact angle, directly affecting surface finish quality and procedure repeatability.

In abrasive waterjet cutting, alumina concentrating tubes lead the high-pressure water-abrasive mixture, withstanding erosive forces that would rapidly deteriorate softer products.

4.2 Use in Additive Manufacturing, Spray Covering, and Fluid Control

In thermal spray systems, such as plasma and fire splashing, alumina nozzles direct high-temperature gas circulations and molten bits onto substrates, taking advantage of their thermal shock resistance and dimensional security.

They are additionally utilized in accuracy spray nozzles for farming chemicals, inkjet systems, and fuel atomization, where wear resistance makes sure long-term application precision.

In 3D printing, specifically in binder jetting and product extrusion, alumina nozzles provide great powders or thick pastes with minimal obstructing or wear.

Arising applications include microfluidic systems and lab-on-a-chip devices, where miniaturized alumina parts supply durability and biocompatibility.

In recap, alumina ceramic nozzles stand for a critical junction of products scientific research and commercial design.

Their exceptional combination of firmness, thermal security, and chemical resistance makes it possible for dependable efficiency in several of one of the most requiring fluid handling environments.

As industrial procedures press toward higher stress, finer tolerances, and much longer solution periods, alumina ceramics continue to establish the standard for long lasting, high-precision flow control parts.

5. Distributor

Alumina Technology Co., Ltd focus on the research and development, production and sales of aluminum oxide powder, aluminum oxide products, aluminum oxide crucible, etc., serving the electronics, ceramics, chemical and other industries. Since its establishment in 2005, the company has been committed to providing customers with the best products and services. If you are looking for high quality tabular alumina price, please feel free to contact us. (nanotrun@yahoo.com)
Tags: Alumina Ceramic Nozzles, Ceramic Nozzles, Alumina Nozzles

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Composition and Crystallographic Properties of Al ₂ O TWO

(Alumina Ceramic Balls， Alumina Ceramic Balls)

Alumina ceramic spheres are spherical parts produced from aluminum oxide (Al two O THREE), a completely oxidized, polycrystalline ceramic that shows extraordinary hardness, chemical inertness, and thermal security.

The key crystalline phase in high-performance alumina rounds is α-alumina, which takes on a corundum-type hexagonal close-packed structure where light weight aluminum ions inhabit two-thirds of the octahedral interstices within an oxygen anion latticework, providing high lattice power and resistance to phase transformation.

Industrial-grade alumina rounds commonly include 85% to 99.9% Al Two O THREE, with pureness directly influencing mechanical strength, use resistance, and rust performance.

High-purity qualities (≥ 95% Al ₂ O FOUR) are sintered to near-theoretical density (> 99%) using sophisticated techniques such as pressureless sintering or warm isostatic pressing, decreasing porosity and intergranular defects that might work as stress and anxiety concentrators.

The resulting microstructure contains penalty, equiaxed grains uniformly dispersed throughout the volume, with grain sizes normally varying from 1 to 5 micrometers, maximized to balance sturdiness and firmness.

1.2 Mechanical and Physical Building Account

Alumina ceramic spheres are renowned for their extreme solidity– gauged at about 1800– 2000 HV on the Vickers scale– going beyond most steels and measuring up to tungsten carbide, making them excellent for wear-intensive settings.

Their high compressive stamina (as much as 2500 MPa) makes certain dimensional stability under lots, while low elastic deformation enhances accuracy in rolling and grinding applications.

In spite of their brittleness about steels, alumina balls display superb crack durability for porcelains, especially when grain growth is regulated throughout sintering.

They preserve architectural honesty across a wide temperature level variety, from cryogenic conditions as much as 1600 ° C in oxidizing environments, far exceeding the thermal limitations of polymer or steel counterparts.

Additionally, their low thermal expansion coefficient (~ 8 × 10 ⁻⁶/ K) minimizes thermal shock susceptibility, making it possible for use in rapidly rising and fall thermal settings such as kilns and warmth exchangers.

2. Production Processes and Quality Assurance

()

2.1 Forming and Sintering Methods

The production of alumina ceramic rounds begins with high-purity alumina powder, commonly originated from calcined bauxite or chemically precipitated hydrates, which is crushed to attain submicron bit dimension and slim dimension distribution.

Powders are then created into round green bodies utilizing methods such as extrusion-spheronization, spray drying out, or round forming in turning pans, relying on the preferred dimension and set scale.

After shaping, eco-friendly spheres go through a binder burnout stage complied with by high-temperature sintering, typically between 1500 ° C and 1700 ° C, where diffusion systems drive densification and grain coarsening.

Exact control of sintering environment (air or regulated oxygen partial stress), heating price, and dwell time is vital to achieving consistent contraction, spherical geometry, and very little interior flaws.

For ultra-high-performance applications, post-sintering treatments such as hot isostatic pushing (HIP) may be put on eliminate residual microporosity and additionally improve mechanical integrity.

2.2 Precision Finishing and Metrological Confirmation

Complying with sintering, alumina spheres are ground and brightened using diamond-impregnated media to attain tight dimensional resistances and surface finishes equivalent to bearing-grade steel spheres.

Surface roughness is typically minimized to less than 0.05 μm Ra, minimizing friction and put on in vibrant call scenarios.

Crucial high quality criteria consist of sphericity (discrepancy from ideal roundness), diameter variation, surface area integrity, and thickness harmony, all of which are determined using optical interferometry, coordinate measuring machines (CMM), and laser profilometry.

International requirements such as ISO 3290 and ANSI/ABMA define resistance qualities for ceramic spheres used in bearings, making sure interchangeability and efficiency consistency throughout producers.

Non-destructive screening methods like ultrasonic examination or X-ray microtomography are employed to detect internal cracks, spaces, or additions that can endanger long-term reliability.

3. Functional Advantages Over Metal and Polymer Counterparts

3.1 Chemical and Corrosion Resistance in Harsh Environments

Among one of the most significant benefits of alumina ceramic rounds is their outstanding resistance to chemical strike.

They continue to be inert in the visibility of solid acids (other than hydrofluoric acid), alkalis, organic solvents, and saline services, making them ideal for use in chemical processing, pharmaceutical manufacturing, and marine applications where steel components would corrode swiftly.

This inertness avoids contamination of delicate media, a critical factor in food handling, semiconductor fabrication, and biomedical equipment.

Unlike steel balls, alumina does not produce corrosion or metal ions, guaranteeing process pureness and lowering maintenance frequency.

Their non-magnetic nature better extends applicability to MRI-compatible devices and electronic production line where magnetic disturbance must be stayed clear of.

3.2 Wear Resistance and Long Service Life

In unpleasant or high-cycle settings, alumina ceramic rounds display wear prices orders of size less than steel or polymer alternatives.

This exceptional durability converts into extensive solution intervals, minimized downtime, and lower total cost of ownership despite higher initial procurement expenses.

They are widely utilized as grinding media in sphere mills for pigment dispersion, mineral handling, and nanomaterial synthesis, where their inertness avoids contamination and their firmness ensures reliable bit dimension reduction.

In mechanical seals and shutoff parts, alumina balls preserve tight tolerances over millions of cycles, resisting disintegration from particulate-laden fluids.

4. Industrial and Emerging Applications

4.1 Bearings, Shutoffs, and Liquid Handling Systems

Alumina ceramic balls are important to hybrid ball bearings, where they are paired with steel or silicon nitride races to incorporate the low thickness and deterioration resistance of porcelains with the durability of metals.

Their reduced thickness (~ 3.9 g/cm TWO, concerning 40% lighter than steel) lowers centrifugal packing at high rotational speeds, making it possible for quicker operation with lower heat generation and enhanced power performance.

Such bearings are used in high-speed pins, dental handpieces, and aerospace systems where reliability under extreme conditions is extremely important.

In fluid control applications, alumina rounds work as check shutoff aspects in pumps and metering tools, especially for hostile chemicals, high-purity water, or ultra-high vacuum systems.

Their smooth surface and dimensional security guarantee repeatable sealing performance and resistance to galling or seizing.

4.2 Biomedical, Power, and Advanced Innovation Uses

Beyond conventional commercial duties, alumina ceramic balls are locating use in biomedical implants and analysis devices because of their biocompatibility and radiolucency.

They are utilized in fabricated joints and oral prosthetics where wear debris have to be reduced to avoid inflammatory actions.

In power systems, they work as inert tracers in reservoir characterization or as heat-stable components in concentrated solar power and fuel cell assemblies.

Research is likewise checking out functionalized alumina balls for catalytic assistance, sensing unit aspects, and accuracy calibration standards in width.

In recap, alumina ceramic rounds exhibit how sophisticated ceramics bridge the gap in between structural toughness and useful precision.

Their unique combination of hardness, chemical inertness, thermal stability, and dimensional accuracy makes them crucial in demanding engineering systems across diverse sectors.

As manufacturing techniques continue to improve, their efficiency and application extent are anticipated to expand further into next-generation innovations.

5. Supplier

Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials such as Alumina Ceramic Balls. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested, please feel free to contact us.(nanotrun@yahoo.com)

Tags: alumina balls,alumina balls,alumina ceramic balls

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Make-up, Purity Qualities, and Crystallographic Feature

(Alumina Ceramic Wear Liners)

Alumina (Al Two O TWO), or aluminum oxide, is among one of the most extensively used technical ceramics in industrial design as a result of its outstanding equilibrium of mechanical toughness, chemical security, and cost-effectiveness.

When engineered right into wear liners, alumina porcelains are typically fabricated with pureness levels ranging from 85% to 99.9%, with greater purity representing boosted hardness, wear resistance, and thermal efficiency.

The leading crystalline stage is alpha-alumina, which adopts a hexagonal close-packed (HCP) framework identified by solid ionic and covalent bonding, adding to its high melting point (~ 2072 ° C )and reduced thermal conductivity.

Microstructurally, alumina porcelains consist of fine, equiaxed grains whose dimension and distribution are managed during sintering to optimize mechanical homes.

Grain dimensions commonly range from submicron to numerous micrometers, with finer grains generally boosting fracture durability and resistance to split breeding under rough packing.

Minor additives such as magnesium oxide (MgO) are commonly presented in trace amounts to hinder uncommon grain growth throughout high-temperature sintering, guaranteeing consistent microstructure and dimensional stability.

The resulting product shows a Vickers solidity of 1500– 2000 HV, substantially surpassing that of solidified steel (typically 600– 800 HV), making it remarkably resistant to surface degradation in high-wear atmospheres.

1.2 Mechanical and Thermal Efficiency in Industrial Conditions

Alumina ceramic wear linings are chosen primarily for their superior resistance to rough, abrasive, and moving wear devices prevalent in bulk material dealing with systems.

They have high compressive stamina (approximately 3000 MPa), good flexural strength (300– 500 MPa), and excellent rigidity (Young’s modulus of ~ 380 GPa), allowing them to withstand intense mechanical loading without plastic deformation.

Although naturally fragile contrasted to metals, their reduced coefficient of friction and high surface area hardness lessen particle attachment and minimize wear rates by orders of size relative to steel or polymer-based choices.

Thermally, alumina maintains architectural integrity as much as 1600 ° C in oxidizing environments, allowing use in high-temperature processing environments such as kiln feed systems, central heating boiler ducting, and pyroprocessing tools.

( Alumina Ceramic Wear Liners)

Its reduced thermal expansion coefficient (~ 8 × 10 ⁻⁶/ K) adds to dimensional security during thermal cycling, lowering the danger of splitting due to thermal shock when properly set up.

Furthermore, alumina is electrically insulating and chemically inert to the majority of acids, antacid, and solvents, making it appropriate for destructive settings where metal liners would degrade swiftly.

These combined homes make alumina porcelains perfect for safeguarding important infrastructure in mining, power generation, concrete production, and chemical handling industries.

2. Manufacturing Processes and Style Combination Techniques

2.1 Shaping, Sintering, and Quality Assurance Protocols

The production of alumina ceramic wear linings entails a sequence of precision production actions created to achieve high density, marginal porosity, and consistent mechanical efficiency.

Raw alumina powders are refined via milling, granulation, and developing techniques such as completely dry pushing, isostatic pressing, or extrusion, depending upon the wanted geometry– floor tiles, plates, pipelines, or custom-shaped segments.

Environment-friendly bodies are then sintered at temperature levels between 1500 ° C and 1700 ° C in air, advertising densification through solid-state diffusion and attaining loved one thickness exceeding 95%, typically coming close to 99% of academic thickness.

Full densification is crucial, as residual porosity serves as anxiety concentrators and increases wear and fracture under service problems.

Post-sintering procedures might consist of diamond grinding or washing to achieve limited dimensional tolerances and smooth surface area finishes that decrease rubbing and particle capturing.

Each batch undergoes strenuous quality assurance, consisting of X-ray diffraction (XRD) for phase evaluation, scanning electron microscopy (SEM) for microstructural assessment, and firmness and bend screening to confirm conformity with international criteria such as ISO 6474 or ASTM B407.

2.2 Mounting Strategies and System Compatibility Considerations

Effective assimilation of alumina wear linings into commercial tools calls for careful focus to mechanical add-on and thermal expansion compatibility.

Typical installment techniques include sticky bonding utilizing high-strength ceramic epoxies, mechanical attaching with studs or supports, and embedding within castable refractory matrices.

Adhesive bonding is extensively used for level or gently bent surface areas, supplying uniform stress and anxiety circulation and vibration damping, while stud-mounted systems allow for easy replacement and are chosen in high-impact zones.

To suit differential thermal development between alumina and metallic substratums (e.g., carbon steel), engineered voids, versatile adhesives, or certified underlayers are integrated to prevent delamination or breaking during thermal transients.

Developers need to additionally think about side protection, as ceramic floor tiles are vulnerable to breaking at exposed edges; solutions consist of diagonal sides, steel shadows, or overlapping tile setups.

Appropriate installation ensures long life span and maximizes the safety feature of the lining system.

3. Use Systems and Efficiency Assessment in Solution Environments

3.1 Resistance to Abrasive, Erosive, and Impact Loading

Alumina ceramic wear liners excel in environments dominated by three key wear mechanisms: two-body abrasion, three-body abrasion, and particle disintegration.

In two-body abrasion, difficult bits or surfaces directly gouge the lining surface, a typical incident in chutes, hoppers, and conveyor shifts.

Three-body abrasion includes loose bits caught in between the lining and moving material, leading to rolling and damaging activity that slowly eliminates product.

Abrasive wear happens when high-velocity bits strike the surface area, specifically in pneumatic conveying lines and cyclone separators.

Because of its high hardness and reduced fracture strength, alumina is most effective in low-impact, high-abrasion scenarios.

It executes exceptionally well versus siliceous ores, coal, fly ash, and cement clinker, where wear prices can be lowered by 10– 50 times compared to moderate steel liners.

Nonetheless, in applications entailing repeated high-energy influence, such as main crusher chambers, crossbreed systems integrating alumina floor tiles with elastomeric supports or metal guards are usually employed to absorb shock and protect against fracture.

3.2 Field Screening, Life Cycle Analysis, and Failure Mode Evaluation

Efficiency assessment of alumina wear liners includes both laboratory testing and field tracking.

Standardized tests such as the ASTM G65 completely dry sand rubber wheel abrasion test offer comparative wear indices, while personalized slurry erosion gears imitate site-specific conditions.

In commercial settings, use rate is commonly determined in mm/year or g/kWh, with service life projections based upon preliminary density and observed degradation.

Failure settings include surface area polishing, micro-cracking, spalling at edges, and total tile dislodgement as a result of glue deterioration or mechanical overload.

Origin analysis commonly discloses setup mistakes, incorrect quality choice, or unanticipated impact loads as key factors to premature failure.

Life cycle price evaluation regularly shows that regardless of greater preliminary prices, alumina liners use exceptional overall cost of possession because of extended substitute intervals, minimized downtime, and reduced maintenance labor.

4. Industrial Applications and Future Technological Advancements

4.1 Sector-Specific Executions Across Heavy Industries

Alumina ceramic wear linings are deployed across a wide spectrum of commercial fields where material deterioration positions operational and economic difficulties.

In mining and mineral processing, they protect transfer chutes, mill liners, hydrocyclones, and slurry pumps from rough slurries including quartz, hematite, and various other tough minerals.

In power plants, alumina ceramic tiles line coal pulverizer ducts, boiler ash receptacles, and electrostatic precipitator components revealed to fly ash erosion.

Concrete producers make use of alumina liners in raw mills, kiln inlet areas, and clinker conveyors to combat the highly unpleasant nature of cementitious products.

The steel industry uses them in blast heating system feed systems and ladle shadows, where resistance to both abrasion and moderate thermal loads is necessary.

Even in much less conventional applications such as waste-to-energy plants and biomass handling systems, alumina porcelains supply sturdy security versus chemically hostile and fibrous materials.

4.2 Arising Trends: Composite Equipments, Smart Liners, and Sustainability

Existing research study focuses on enhancing the toughness and capability of alumina wear systems through composite design.

Alumina-zirconia (Al Two O ₃-ZrO ₂) compounds utilize change toughening from zirconia to enhance split resistance, while alumina-titanium carbide (Al two O TWO-TiC) qualities offer improved performance in high-temperature moving wear.

Another development involves embedding sensors within or below ceramic linings to keep track of wear progression, temperature, and impact frequency– allowing predictive maintenance and electronic double assimilation.

From a sustainability viewpoint, the prolonged service life of alumina linings lowers material consumption and waste generation, lining up with round economy principles in commercial procedures.

Recycling of spent ceramic liners right into refractory aggregates or building and construction products is likewise being discovered to decrease environmental impact.

To conclude, alumina ceramic wear linings stand for a foundation of modern-day industrial wear defense innovation.

Their outstanding solidity, thermal stability, and chemical inertness, incorporated with fully grown production and setup practices, make them important in combating material deterioration across heavy markets.

As product scientific research breakthroughs and electronic surveillance comes to be much more incorporated, the next generation of wise, durable alumina-based systems will further improve operational effectiveness and sustainability in abrasive environments.

Vendor

Alumina Technology Co., Ltd focus on the research and development, production and sales of aluminum oxide powder, aluminum oxide products, aluminum oxide crucible, etc., serving the electronics, ceramics, chemical and other industries. Since its establishment in 2005, the company has been committed to providing customers with the best products and services. If you are looking for high quality tabular alumina price, please feel free to contact us. (nanotrun@yahoo.com)
Tags: Alumina Ceramic Wear Liners, Alumina Ceramics, alumina

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]
