1.1 Make-up and Crystalline Architecture

(Alumina Ceramic Baking Dish)

Alumina ceramic baking recipes are fabricated from light weight aluminum oxide (Al two O TWO), a polycrystalline ceramic product typically having 90– 99.5% pure alumina, with small additions of silica, magnesia, or clay minerals to aid sintering and control microstructure.

The main crystalline phase is alpha-alumina (α-Al ₂ O THREE), which takes on a hexagonal close-packed lattice structure known for its outstanding security, firmness, and resistance to chemical deterioration.

Throughout production, raw alumina powder is shaped and fired at heats (1300– 1600 ° C), promoting densification through solid-state or liquid-phase sintering, resulting in a fine-grained, interlocked microstructure.

This microstructure conveys high mechanical toughness and tightness, with flexural staminas ranging from 250 to 400 MPa, much going beyond those of conventional porcelain or ceramic.

The absence of porosity in completely dense alumina porcelains protects against liquid absorption and inhibits microbial development, making them inherently sanitary and easy to tidy.

Unlike glass or lower-grade porcelains that may include amorphous phases prone to thermal shock, high-alumina porcelains display premium architectural comprehensibility under duplicated heating and cooling down cycles.

1.2 Thermal Security and Warmth Circulation

One of one of the most vital benefits of alumina ceramic in baking applications is its exceptional thermal stability.

Alumina retains architectural integrity up to 1700 ° C, well past the operational series of house ovens (generally 200– 260 ° C), making sure lasting longevity and security.

Its thermal expansion coefficient (~ 8 × 10 ⁻⁶/ K) is moderate, allowing the material to stand up to quick temperature level changes without fracturing, offered thermal gradients are not severe.

When preheated slowly, alumina meals stand up to thermal shock efficiently, a vital need for transitioning from fridge to oven or vice versa.

Additionally, alumina possesses fairly high thermal conductivity for a ceramic– about 20– 30 W/(m · K)– which enables extra consistent warmth distribution throughout the meal contrasted to standard porcelains (5– 10 W/(m · K) )or glass (~ 1 W/(m · K)).

This better conductivity reduces locations and advertises even browning and cooking, enhancing food quality and consistency.

The product likewise shows superb emissivity, efficiently radiating warmth to the food surface area, which contributes to preferable Maillard reactions and crust formation in baked items.

2. Production Process and Quality Assurance

2.1 Forming and Sintering Methods

( Alumina Ceramic Baking Dish)

The manufacturing of alumina ceramic cooking dishes starts with the preparation of an uniform slurry or powder mix, commonly composed of calcined alumina, binders, and plasticizers to make certain workability.

Typical creating methods consist of slip casting, where the slurry is poured right into permeable plaster molds, and uniaxial or isostatic pushing, which compact the powder into environment-friendly bodies with specified shapes.

These green kinds are then dried to get rid of moisture and carefully debound to remove natural additives prior to getting in the sintering heating system.

Sintering is the most critical stage, throughout which particles bond through diffusion systems, causing considerable shrinking (15– 25%) and pore elimination.

Precise control of temperature level, time, and environment makes sure complete densification and stops bending or fracturing.

Some makers use pressure-assisted sintering techniques such as hot pushing to accomplish near-theoretical thickness and improved mechanical residential or commercial properties, though this enhances manufacturing expense.

2.2 Surface Area Finishing and Safety Qualification

After sintering, alumina recipes may undertake grinding or brightening to attain smooth edges and consistent measurements, especially for precision-fit lids or modular kitchenware.

Glazing is normally unneeded as a result of the intrinsic thickness and chemical inertness of the product, but some products include attractive or practical finishings to boost appearances or non-stick performance.

These layers should work with high-temperature use and devoid of lead, cadmium, or other toxic aspects managed by food security criteria such as FDA 21 CFR, EU Policy (EC) No 1935/2004, and LFGB.

Rigorous quality control consists of screening for thermal shock resistance (e.g., quenching from 250 ° C to 20 ° C water), mechanical toughness, leachability, and dimensional security.

Microstructural analysis via scanning electron microscopy (SEM) validates grain dimension harmony and lack of vital flaws, while X-ray diffraction (XRD) verifies phase pureness and lack of unwanted crystalline phases.

Set traceability and conformity documentation guarantee consumer safety and regulatory adherence in worldwide markets.

3. Functional Advantages in Culinary Applications

3.1 Chemical Inertness and Food Security

Alumina ceramic is chemically inert under typical cooking problems, indicating it does not respond with acidic (e.g., tomatoes, citrus), alkaline, or salty foods, protecting flavor honesty and stopping steel ion seeping.

This inertness surpasses that of metal pots and pans, which can wear away or militarize undesirable reactions, and some polished ceramics, where acidic foods may seep hefty steels from the glaze.

The non-porous surface avoids absorption of oils, seasonings, or pigments, getting rid of taste transfer between dishes and decreasing bacterial retention.

Because of this, alumina cooking dishes are perfect for preparing delicate recipes such as custards, seafood, and delicate sauces where contamination should be stayed clear of.

Their biocompatibility and resistance to microbial bond likewise make them appropriate for clinical and research laboratory applications, underscoring their safety and security account.

3.2 Energy Effectiveness and Cooking Performance

Because of its high thermal conductivity and warmth ability, alumina ceramic heats up more consistently and keeps warm longer than standard bakeware.

This thermal inertia enables constant cooking also after oven door opening and makes it possible for recurring cooking after elimination from warm, reducing energy intake.

Foods such as casseroles, gratins, and baked veggies benefit from the convected heat atmosphere, achieving crisp exteriors and moist interiors.

Furthermore, the material’s ability to operate securely in microwave, conventional stove, broiler, and freezer environments offers unequaled convenience in modern-day kitchen areas.

Unlike metal frying pans, alumina does not reflect microwaves or create arcing, making it microwave-safe without restriction.

The mix of durability, multi-environment compatibility, and food preparation precision settings alumina ceramic as a premium option for specialist and home cooks alike.

4. Sustainability and Future Developments

4.1 Ecological Effect and Lifecycle Evaluation

Alumina ceramic baking dishes use considerable ecological benefits over disposable or short-lived alternatives.

With a life expectancy surpassing decades under proper treatment, they minimize the need for constant replacement and minimize waste generation.

The raw material– alumina– is originated from bauxite, a plentiful mineral, and the manufacturing process, while energy-intensive, benefits from recyclability of scrap and off-spec parts in subsequent sets.

End-of-life items are inert and non-toxic, posing no leaching danger in garbage dumps, though commercial reusing into refractory products or building and construction aggregates is progressively exercised.

Their toughness supports circular economic situation models, where long product life and reusability are prioritized over single-use disposables.

4.2 Development in Layout and Smart Assimilation

Future advancements include the integration of useful layers such as self-cleaning photocatalytic TiO two layers or non-stick SiC-doped surface areas to enhance functionality.

Crossbreed ceramic-metal compounds are being checked out to incorporate the thermal responsiveness of metal with the inertness of alumina.

Additive production methods may make it possible for customized, topology-optimized bakeware with internal heat-channeling frameworks for innovative thermal administration.

Smart porcelains with ingrained temperature level sensors or RFID tags for tracking usage and maintenance are on the horizon, combining product science with electronic kitchen communities.

In summary, alumina ceramic baking meals stand for a merging of sophisticated materials design and sensible cooking scientific research.

Their exceptional thermal, mechanical, and chemical buildings make them not just durable kitchen tools however additionally sustainable, safe, and high-performance remedies for modern-day cooking.

5. Provider

Alumina Technology Co., Ltd focus on the research and development, production and sales of aluminum oxide powder, aluminum oxide products, aluminum oxide crucible, etc., serving the electronics, ceramics, chemical and other industries. Since its establishment in 2005, the company has been committed to providing customers with the best products and services. If you are looking for high quality sintered alumina ceramic, please feel free to contact us.
Tags: Alumina Ceramic Baking Dish, Alumina Ceramics, alumina

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Crystal Structure and Chemical Composition

(Spherical alumina)

Spherical alumina, or round aluminum oxide (Al two O SIX), is a synthetically created ceramic product characterized by a well-defined globular morphology and a crystalline structure primarily in the alpha (α) phase.

Alpha-alumina, the most thermodynamically secure polymorph, includes a hexagonal close-packed setup of oxygen ions with light weight aluminum ions inhabiting two-thirds of the octahedral interstices, resulting in high lattice power and outstanding chemical inertness.

This phase displays outstanding thermal stability, maintaining stability up to 1800 ° C, and stands up to response with acids, antacid, and molten metals under a lot of industrial conditions.

Unlike uneven or angular alumina powders originated from bauxite calcination, round alumina is crafted with high-temperature processes such as plasma spheroidization or fire synthesis to achieve uniform roundness and smooth surface area appearance.

The makeover from angular precursor particles– frequently calcined bauxite or gibbsite– to dense, isotropic rounds eliminates sharp edges and internal porosity, improving packaging effectiveness and mechanical resilience.

High-purity grades (≥ 99.5% Al ₂ O FIVE) are important for electronic and semiconductor applications where ionic contamination have to be lessened.

1.2 Particle Geometry and Packaging Habits

The specifying feature of round alumina is its near-perfect sphericity, generally quantified by a sphericity index > 0.9, which substantially affects its flowability and packaging density in composite systems.

As opposed to angular bits that interlock and develop voids, round fragments roll previous each other with marginal rubbing, enabling high solids filling throughout solution of thermal interface products (TIMs), encapsulants, and potting compounds.

This geometric harmony permits maximum academic packing thickness exceeding 70 vol%, much surpassing the 50– 60 vol% normal of irregular fillers.

Higher filler filling directly converts to boosted thermal conductivity in polymer matrices, as the continual ceramic network provides efficient phonon transportation paths.

In addition, the smooth surface minimizes wear on handling devices and minimizes viscosity surge during mixing, enhancing processability and diffusion security.

The isotropic nature of spheres additionally protects against orientation-dependent anisotropy in thermal and mechanical buildings, guaranteeing regular performance in all directions.

2. Synthesis Methods and Quality Control

2.1 High-Temperature Spheroidization Strategies

The manufacturing of spherical alumina primarily relies upon thermal techniques that thaw angular alumina particles and permit surface area tension to improve them right into spheres.

( Spherical alumina)

Plasma spheroidization is the most widely utilized commercial technique, where alumina powder is infused right into a high-temperature plasma fire (approximately 10,000 K), creating rapid melting and surface tension-driven densification right into perfect spheres.

The liquified droplets solidify quickly throughout trip, forming dense, non-porous bits with uniform size distribution when paired with specific category.

Alternate approaches include fire spheroidization utilizing oxy-fuel torches and microwave-assisted home heating, though these usually offer lower throughput or less control over particle size.

The beginning product’s purity and particle dimension circulation are crucial; submicron or micron-scale forerunners yield correspondingly sized rounds after processing.

Post-synthesis, the product goes through rigorous sieving, electrostatic separation, and laser diffraction analysis to make certain tight particle dimension circulation (PSD), typically ranging from 1 to 50 µm relying on application.

2.2 Surface Area Modification and Functional Customizing

To enhance compatibility with organic matrices such as silicones, epoxies, and polyurethanes, spherical alumina is typically surface-treated with coupling agents.

Silane combining agents– such as amino, epoxy, or vinyl functional silanes– kind covalent bonds with hydroxyl teams on the alumina surface area while offering organic capability that interacts with the polymer matrix.

This therapy enhances interfacial adhesion, minimizes filler-matrix thermal resistance, and protects against pile, bring about even more uniform composites with superior mechanical and thermal performance.

Surface coverings can also be crafted to impart hydrophobicity, improve dispersion in nonpolar resins, or make it possible for stimuli-responsive actions in clever thermal materials.

Quality assurance includes dimensions of BET surface area, tap thickness, thermal conductivity (usually 25– 35 W/(m · K )for thick α-alumina), and impurity profiling using ICP-MS to leave out Fe, Na, and K at ppm degrees.

Batch-to-batch uniformity is essential for high-reliability applications in electronic devices and aerospace.

3. Thermal and Mechanical Performance in Composites

3.1 Thermal Conductivity and User Interface Design

Spherical alumina is mostly utilized as a high-performance filler to enhance the thermal conductivity of polymer-based products made use of in electronic product packaging, LED illumination, and power modules.

While pure epoxy or silicone has a thermal conductivity of ~ 0.2 W/(m · K), packing with 60– 70 vol% round alumina can increase this to 2– 5 W/(m · K), adequate for reliable warmth dissipation in compact devices.

The high inherent thermal conductivity of α-alumina, combined with very little phonon scattering at smooth particle-particle and particle-matrix interfaces, enables reliable heat transfer with percolation networks.

Interfacial thermal resistance (Kapitza resistance) remains a restricting factor, however surface area functionalization and enhanced dispersion strategies assist reduce this obstacle.

In thermal user interface materials (TIMs), round alumina decreases contact resistance between heat-generating elements (e.g., CPUs, IGBTs) and warm sinks, stopping getting too hot and expanding tool life expectancy.

Its electrical insulation (resistivity > 10 ¹² Ω · cm) makes certain safety and security in high-voltage applications, identifying it from conductive fillers like metal or graphite.

3.2 Mechanical Stability and Integrity

Past thermal performance, spherical alumina enhances the mechanical robustness of compounds by enhancing solidity, modulus, and dimensional stability.

The round form distributes stress consistently, decreasing crack initiation and breeding under thermal cycling or mechanical load.

This is especially crucial in underfill products and encapsulants for flip-chip and 3D-packaged tools, where coefficient of thermal growth (CTE) inequality can cause delamination.

By changing filler loading and fragment dimension circulation (e.g., bimodal blends), the CTE of the composite can be tuned to match that of silicon or printed circuit card, lessening thermo-mechanical tension.

Additionally, the chemical inertness of alumina prevents destruction in humid or destructive environments, ensuring long-lasting reliability in vehicle, industrial, and outdoor electronics.

4. Applications and Technological Development

4.1 Electronic Devices and Electric Car Systems

Round alumina is a crucial enabler in the thermal administration of high-power electronic devices, consisting of insulated gateway bipolar transistors (IGBTs), power materials, and battery administration systems in electrical cars (EVs).

In EV battery loads, it is incorporated into potting substances and phase adjustment products to prevent thermal runaway by uniformly dispersing heat across cells.

LED suppliers use it in encapsulants and second optics to keep lumen outcome and shade uniformity by lowering joint temperature level.

In 5G facilities and data facilities, where warmth change thickness are rising, spherical alumina-filled TIMs guarantee stable operation of high-frequency chips and laser diodes.

Its function is broadening into advanced packaging technologies such as fan-out wafer-level packaging (FOWLP) and embedded die systems.

4.2 Emerging Frontiers and Lasting Innovation

Future growths focus on hybrid filler systems incorporating round alumina with boron nitride, aluminum nitride, or graphene to attain synergistic thermal efficiency while preserving electric insulation.

Nano-spherical alumina (sub-100 nm) is being discovered for clear ceramics, UV finishes, and biomedical applications, though obstacles in dispersion and expense stay.

Additive manufacturing of thermally conductive polymer composites making use of round alumina enables complicated, topology-optimized warm dissipation frameworks.

Sustainability initiatives include energy-efficient spheroidization procedures, recycling of off-spec product, and life-cycle analysis to reduce the carbon impact of high-performance thermal materials.

In recap, spherical alumina stands for a vital crafted material at the junction of porcelains, composites, and thermal scientific research.

Its distinct mix of morphology, pureness, and performance makes it crucial in the recurring miniaturization and power climax of contemporary digital and power systems.

5. Vendor

TRUNNANO is a globally recognized Spherical alumina manufacturer and supplier of compounds with more than 12 years of expertise in the highest quality nanomaterials and other chemicals. The company develops a variety of powder materials and chemicals. Provide OEM service. If you need high quality Spherical alumina, please feel free to contact us. You can click on the product to contact us.
Tags: Spherical alumina, alumina, aluminum oxide

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Crystal Chemistry and Polymorphism

(Silicon Carbide Crucibles)

Silicon carbide (SiC) is a covalent ceramic made up of silicon and carbon atoms prepared in a tetrahedral latticework, creating one of the most thermally and chemically robust products understood.

It exists in over 250 polytypic kinds, with the 3C (cubic), 4H, and 6H hexagonal frameworks being most pertinent for high-temperature applications.

The strong Si– C bonds, with bond energy exceeding 300 kJ/mol, give outstanding solidity, thermal conductivity, and resistance to thermal shock and chemical strike.

In crucible applications, sintered or reaction-bonded SiC is favored as a result of its capability to keep architectural honesty under extreme thermal slopes and corrosive liquified environments.

Unlike oxide porcelains, SiC does not undergo disruptive phase transitions approximately its sublimation point (~ 2700 ° C), making it perfect for continual procedure above 1600 ° C.

1.2 Thermal and Mechanical Efficiency

A defining feature of SiC crucibles is their high thermal conductivity– ranging from 80 to 120 W/(m · K)– which promotes consistent warm distribution and minimizes thermal stress during fast home heating or air conditioning.

This residential or commercial property contrasts greatly with low-conductivity ceramics like alumina (≈ 30 W/(m · K)), which are vulnerable to breaking under thermal shock.

SiC likewise exhibits outstanding mechanical strength at elevated temperatures, maintaining over 80% of its room-temperature flexural stamina (as much as 400 MPa) even at 1400 ° C.

Its reduced coefficient of thermal growth (~ 4.0 × 10 ⁻⁶/ K) even more improves resistance to thermal shock, an essential consider duplicated biking in between ambient and functional temperatures.

Additionally, SiC shows premium wear and abrasion resistance, ensuring long service life in settings including mechanical handling or stormy melt flow.

2. Production Techniques and Microstructural Control

( Silicon Carbide Crucibles)

2.1 Sintering Techniques and Densification Strategies

Commercial SiC crucibles are mostly fabricated via pressureless sintering, reaction bonding, or hot pushing, each offering distinctive benefits in price, pureness, and efficiency.

Pressureless sintering includes condensing great SiC powder with sintering aids such as boron and carbon, followed by high-temperature therapy (2000– 2200 ° C )in inert atmosphere to achieve near-theoretical thickness.

This technique yields high-purity, high-strength crucibles ideal for semiconductor and progressed alloy processing.

Reaction-bonded SiC (RBSC) is produced by penetrating a permeable carbon preform with molten silicon, which responds to develop β-SiC sitting, resulting in a compound of SiC and recurring silicon.

While a little reduced in thermal conductivity as a result of metal silicon inclusions, RBSC provides outstanding dimensional security and lower manufacturing cost, making it preferred for large-scale commercial usage.

Hot-pressed SiC, though much more expensive, gives the greatest density and purity, scheduled for ultra-demanding applications such as single-crystal growth.

2.2 Surface Area Quality and Geometric Precision

Post-sintering machining, including grinding and splashing, ensures specific dimensional tolerances and smooth internal surface areas that lessen nucleation sites and minimize contamination risk.

Surface roughness is meticulously controlled to avoid thaw adhesion and assist in very easy release of solidified products.

Crucible geometry– such as wall thickness, taper angle, and bottom curvature– is enhanced to balance thermal mass, structural stamina, and compatibility with heating system heating elements.

Personalized styles accommodate particular thaw volumes, home heating profiles, and product reactivity, guaranteeing ideal performance throughout diverse commercial procedures.

Advanced quality assurance, including X-ray diffraction, scanning electron microscopy, and ultrasonic screening, validates microstructural homogeneity and lack of flaws like pores or splits.

3. Chemical Resistance and Communication with Melts

3.1 Inertness in Aggressive Environments

SiC crucibles exhibit remarkable resistance to chemical strike by molten metals, slags, and non-oxidizing salts, exceeding standard graphite and oxide porcelains.

They are stable touching molten aluminum, copper, silver, and their alloys, resisting wetting and dissolution as a result of low interfacial energy and formation of protective surface oxides.

In silicon and germanium processing for photovoltaics and semiconductors, SiC crucibles stop metallic contamination that can deteriorate digital buildings.

Nonetheless, under very oxidizing problems or in the visibility of alkaline changes, SiC can oxidize to create silica (SiO ₂), which might respond further to create low-melting-point silicates.

For that reason, SiC is best fit for neutral or lowering ambiences, where its stability is taken full advantage of.

3.2 Limitations and Compatibility Considerations

In spite of its toughness, SiC is not generally inert; it reacts with certain molten products, specifically iron-group steels (Fe, Ni, Co) at high temperatures via carburization and dissolution procedures.

In molten steel handling, SiC crucibles deteriorate swiftly and are consequently avoided.

Similarly, alkali and alkaline planet steels (e.g., Li, Na, Ca) can minimize SiC, releasing carbon and developing silicides, limiting their use in battery product synthesis or responsive metal casting.

For liquified glass and porcelains, SiC is typically suitable but may introduce trace silicon into very delicate optical or electronic glasses.

Recognizing these material-specific communications is crucial for choosing the suitable crucible type and making certain process pureness and crucible longevity.

4. Industrial Applications and Technological Evolution

4.1 Metallurgy, Semiconductor, and Renewable Resource Sectors

SiC crucibles are vital in the manufacturing of multicrystalline and monocrystalline silicon ingots for solar batteries, where they stand up to long term exposure to thaw silicon at ~ 1420 ° C.

Their thermal security ensures uniform condensation and decreases misplacement thickness, directly influencing photovoltaic effectiveness.

In factories, SiC crucibles are made use of for melting non-ferrous steels such as light weight aluminum and brass, offering longer life span and reduced dross development compared to clay-graphite alternatives.

They are likewise utilized in high-temperature lab for thermogravimetric evaluation, differential scanning calorimetry, and synthesis of innovative porcelains and intermetallic substances.

4.2 Future Trends and Advanced Material Integration

Emerging applications consist of the use of SiC crucibles in next-generation nuclear materials testing and molten salt reactors, where their resistance to radiation and molten fluorides is being assessed.

Coatings such as pyrolytic boron nitride (PBN) or yttria (Y ₂ O FIVE) are being related to SiC surfaces to even more improve chemical inertness and avoid silicon diffusion in ultra-high-purity procedures.

Additive production of SiC elements utilizing binder jetting or stereolithography is under growth, promising facility geometries and rapid prototyping for specialized crucible designs.

As demand expands for energy-efficient, durable, and contamination-free high-temperature handling, silicon carbide crucibles will continue to be a foundation modern technology in innovative products making.

To conclude, silicon carbide crucibles represent a vital allowing component in high-temperature industrial and scientific processes.

Their unmatched combination of thermal stability, mechanical strength, and chemical resistance makes them the material of choice for applications where performance and reliability are critical.

5. Vendor

Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials and products. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested, please feel free to contact us.
Tags: Silicon Carbide Crucibles, Silicon Carbide Ceramic, Silicon Carbide Ceramic Crucibles

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Structure, Crystallography, and Phase Stability

(Alumina Crucible)

Alumina crucibles are precision-engineered ceramic vessels produced mostly from aluminum oxide (Al two O FIVE), one of one of the most extensively used sophisticated ceramics due to its exceptional mix of thermal, mechanical, and chemical security.

The dominant crystalline stage in these crucibles is alpha-alumina (α-Al two O FIVE), which comes from the diamond structure– a hexagonal close-packed plan of oxygen ions with two-thirds of the octahedral interstices occupied by trivalent light weight aluminum ions.

This thick atomic packing causes solid ionic and covalent bonding, conferring high melting factor (2072 ° C), excellent firmness (9 on the Mohs range), and resistance to slip and contortion at raised temperature levels.

While pure alumina is excellent for many applications, trace dopants such as magnesium oxide (MgO) are usually added throughout sintering to hinder grain development and boost microstructural harmony, thus improving mechanical strength and thermal shock resistance.

The phase pureness of α-Al ₂ O four is crucial; transitional alumina phases (e.g., γ, δ, θ) that form at reduced temperatures are metastable and go through quantity modifications upon conversion to alpha stage, possibly leading to splitting or failing under thermal biking.

1.2 Microstructure and Porosity Control in Crucible Construction

The efficiency of an alumina crucible is profoundly influenced by its microstructure, which is figured out during powder processing, creating, and sintering stages.

High-purity alumina powders (usually 99.5% to 99.99% Al Two O FOUR) are shaped into crucible forms utilizing techniques such as uniaxial pushing, isostatic pushing, or slide spreading, adhered to by sintering at temperatures in between 1500 ° C and 1700 ° C.

Throughout sintering, diffusion devices drive fragment coalescence, lowering porosity and increasing thickness– ideally achieving > 99% academic density to minimize permeability and chemical infiltration.

Fine-grained microstructures improve mechanical strength and resistance to thermal tension, while controlled porosity (in some customized grades) can enhance thermal shock resistance by dissipating stress power.

Surface finish is likewise essential: a smooth interior surface minimizes nucleation sites for unwanted responses and promotes simple removal of strengthened materials after handling.

Crucible geometry– consisting of wall surface density, curvature, and base style– is maximized to balance warm transfer performance, architectural stability, and resistance to thermal gradients throughout fast home heating or air conditioning.

( Alumina Crucible)

2. Thermal and Chemical Resistance in Extreme Environments

2.1 High-Temperature Performance and Thermal Shock Actions

Alumina crucibles are consistently utilized in environments going beyond 1600 ° C, making them indispensable in high-temperature products research, metal refining, and crystal growth procedures.

They exhibit reduced thermal conductivity (~ 30 W/m · K), which, while limiting warmth transfer prices, additionally supplies a level of thermal insulation and aids maintain temperature level slopes needed for directional solidification or area melting.

An essential obstacle is thermal shock resistance– the capability to hold up against unexpected temperature adjustments without splitting.

Although alumina has a reasonably low coefficient of thermal growth (~ 8 × 10 ⁻⁶/ K), its high stiffness and brittleness make it at risk to crack when subjected to high thermal gradients, especially during quick heating or quenching.

To alleviate this, individuals are recommended to comply with regulated ramping procedures, preheat crucibles progressively, and avoid straight exposure to open up flames or cool surface areas.

Advanced qualities integrate zirconia (ZrO TWO) toughening or rated structures to improve split resistance via systems such as stage makeover toughening or residual compressive anxiety generation.

2.2 Chemical Inertness and Compatibility with Reactive Melts

One of the defining advantages of alumina crucibles is their chemical inertness toward a wide range of molten steels, oxides, and salts.

They are very immune to basic slags, liquified glasses, and numerous metallic alloys, consisting of iron, nickel, cobalt, and their oxides, which makes them ideal for usage in metallurgical evaluation, thermogravimetric experiments, and ceramic sintering.

Nonetheless, they are not globally inert: alumina reacts with strongly acidic fluxes such as phosphoric acid or boron trioxide at heats, and it can be corroded by molten antacid like salt hydroxide or potassium carbonate.

Particularly critical is their communication with light weight aluminum metal and aluminum-rich alloys, which can lower Al two O six via the response: 2Al + Al Two O ₃ → 3Al two O (suboxide), bring about pitting and ultimate failure.

In a similar way, titanium, zirconium, and rare-earth metals show high reactivity with alumina, creating aluminides or intricate oxides that compromise crucible integrity and pollute the thaw.

For such applications, alternative crucible materials like yttria-stabilized zirconia (YSZ), boron nitride (BN), or molybdenum are chosen.

3. Applications in Scientific Research and Industrial Handling

3.1 Role in Materials Synthesis and Crystal Growth

Alumina crucibles are central to various high-temperature synthesis routes, consisting of solid-state reactions, change development, and melt processing of practical ceramics and intermetallics.

In solid-state chemistry, they function as inert containers for calcining powders, manufacturing phosphors, or preparing forerunner products for lithium-ion battery cathodes.

For crystal development methods such as the Czochralski or Bridgman methods, alumina crucibles are utilized to include molten oxides like yttrium light weight aluminum garnet (YAG) or neodymium-doped glasses for laser applications.

Their high pureness makes sure very little contamination of the expanding crystal, while their dimensional stability supports reproducible growth problems over prolonged periods.

In flux development, where solitary crystals are grown from a high-temperature solvent, alumina crucibles have to withstand dissolution by the flux medium– commonly borates or molybdates– needing mindful option of crucible quality and handling parameters.

3.2 Use in Analytical Chemistry and Industrial Melting Operations

In analytical research laboratories, alumina crucibles are conventional devices in thermogravimetric evaluation (TGA) and differential scanning calorimetry (DSC), where specific mass dimensions are made under regulated atmospheres and temperature ramps.

Their non-magnetic nature, high thermal security, and compatibility with inert and oxidizing environments make them perfect for such precision dimensions.

In commercial settings, alumina crucibles are used in induction and resistance heating systems for melting rare-earth elements, alloying, and casting procedures, particularly in fashion jewelry, dental, and aerospace component manufacturing.

They are likewise used in the production of technical ceramics, where raw powders are sintered or hot-pressed within alumina setters and crucibles to prevent contamination and make sure consistent home heating.

4. Limitations, Taking Care Of Practices, and Future Material Enhancements

4.1 Functional Restrictions and Finest Practices for Durability

Regardless of their toughness, alumina crucibles have distinct functional limits that must be appreciated to ensure safety and performance.

Thermal shock continues to be the most common source of failure; consequently, gradual home heating and cooling cycles are essential, specifically when transitioning via the 400– 600 ° C array where residual tensions can collect.

Mechanical damage from mishandling, thermal biking, or contact with tough materials can initiate microcracks that circulate under tension.

Cleaning up must be carried out thoroughly– preventing thermal quenching or unpleasant approaches– and utilized crucibles should be checked for indicators of spalling, staining, or contortion before reuse.

Cross-contamination is one more problem: crucibles used for responsive or poisonous products ought to not be repurposed for high-purity synthesis without comprehensive cleaning or should be disposed of.

4.2 Arising Trends in Composite and Coated Alumina Equipments

To expand the capabilities of conventional alumina crucibles, scientists are establishing composite and functionally rated materials.

Instances consist of alumina-zirconia (Al two O FOUR-ZrO TWO) composites that boost durability and thermal shock resistance, or alumina-silicon carbide (Al ₂ O FIVE-SiC) versions that boost thermal conductivity for more consistent home heating.

Surface finishes with rare-earth oxides (e.g., yttria or scandia) are being discovered to create a diffusion obstacle against reactive metals, consequently broadening the range of compatible thaws.

In addition, additive manufacturing of alumina parts is arising, making it possible for customized crucible geometries with internal networks for temperature tracking or gas circulation, opening new opportunities in process control and activator layout.

Finally, alumina crucibles continue to be a keystone of high-temperature innovation, valued for their integrity, pureness, and convenience across clinical and industrial domain names.

Their continued advancement via microstructural design and hybrid material design makes certain that they will remain essential devices in the advancement of products scientific research, power innovations, and progressed production.

5. Vendor

Alumina Technology Co., Ltd focus on the research and development, production and sales of aluminum oxide powder, aluminum oxide products, aluminum oxide crucible, etc., serving the electronics, ceramics, chemical and other industries. Since its establishment in 2005, the company has been committed to providing customers with the best products and services. If you are looking for high quality Alumina Crucible, please feel free to contact us.
Tags: Alumina Crucible, crucible alumina, aluminum oxide crucible

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Limit Stage Family Members and Atomic Piling Sequence

(Ti2AlC MAX Phase Powder)

Ti ₂ AlC comes from the MAX stage family members, a class of nanolaminated ternary carbides and nitrides with the basic formula Mₙ ₊₁ AXₙ, where M is an early transition metal, A is an A-group aspect, and X is carbon or nitrogen.

In Ti ₂ AlC, titanium (Ti) functions as the M element, light weight aluminum (Al) as the An element, and carbon (C) as the X component, forming a 211 framework (n=1) with alternating layers of Ti six C octahedra and Al atoms stacked along the c-axis in a hexagonal lattice.

This distinct split design combines solid covalent bonds within the Ti– C layers with weaker metal bonds between the Ti and Al planes, resulting in a hybrid material that shows both ceramic and metal features.

The robust Ti– C covalent network offers high stiffness, thermal security, and oxidation resistance, while the metal Ti– Al bonding allows electrical conductivity, thermal shock tolerance, and damage tolerance uncommon in standard ceramics.

This duality develops from the anisotropic nature of chemical bonding, which permits energy dissipation mechanisms such as kink-band development, delamination, and basic aircraft fracturing under stress, rather than devastating breakable crack.

1.2 Electronic Structure and Anisotropic Residences

The digital setup of Ti two AlC features overlapping d-orbitals from titanium and p-orbitals from carbon and aluminum, causing a high density of states at the Fermi level and inherent electrical and thermal conductivity along the basic planes.

This metallic conductivity– unusual in ceramic products– makes it possible for applications in high-temperature electrodes, present enthusiasts, and electro-magnetic protecting.

Residential or commercial property anisotropy is pronounced: thermal growth, flexible modulus, and electrical resistivity vary considerably between the a-axis (in-plane) and c-axis (out-of-plane) instructions as a result of the split bonding.

For example, thermal development along the c-axis is lower than along the a-axis, contributing to boosted resistance to thermal shock.

Moreover, the material displays a reduced Vickers hardness (~ 4– 6 Grade point average) compared to standard ceramics like alumina or silicon carbide, yet maintains a high Youthful’s modulus (~ 320 GPa), showing its unique combination of gentleness and stiffness.

This equilibrium makes Ti ₂ AlC powder specifically suitable for machinable porcelains and self-lubricating compounds.

( Ti2AlC MAX Phase Powder)

2. Synthesis and Handling of Ti Two AlC Powder

2.1 Solid-State and Advanced Powder Production Approaches

Ti ₂ AlC powder is mostly synthesized with solid-state reactions between important or compound forerunners, such as titanium, aluminum, and carbon, under high-temperature conditions (1200– 1500 ° C )in inert or vacuum environments.

The response: 2Ti + Al + C → Ti ₂ AlC, need to be meticulously regulated to prevent the development of competing phases like TiC, Ti Four Al, or TiAl, which degrade useful efficiency.

Mechanical alloying followed by warmth treatment is an additional commonly used technique, where elemental powders are ball-milled to attain atomic-level blending prior to annealing to develop the MAX stage.

This strategy allows great bit dimension control and homogeneity, necessary for advanced combination techniques.

Extra innovative approaches, such as trigger plasma sintering (SPS), chemical vapor deposition (CVD), and molten salt synthesis, offer paths to phase-pure, nanostructured, or oriented Ti two AlC powders with tailored morphologies.

Molten salt synthesis, in particular, allows reduced response temperatures and far better particle diffusion by functioning as a flux medium that enhances diffusion kinetics.

2.2 Powder Morphology, Purity, and Taking Care Of Factors to consider

The morphology of Ti ₂ AlC powder– ranging from irregular angular fragments to platelet-like or spherical granules– depends upon the synthesis course and post-processing steps such as milling or category.

Platelet-shaped bits show the intrinsic layered crystal framework and are advantageous for reinforcing composites or developing distinctive bulk materials.

High stage purity is important; also percentages of TiC or Al ₂ O ₃ impurities can significantly change mechanical, electric, and oxidation habits.

X-ray diffraction (XRD) and electron microscopy (SEM/TEM) are regularly made use of to evaluate phase structure and microstructure.

As a result of light weight aluminum’s sensitivity with oxygen, Ti two AlC powder is susceptible to surface oxidation, developing a slim Al ₂ O six layer that can passivate the product but may hinder sintering or interfacial bonding in composites.

For that reason, storage space under inert ambience and processing in regulated settings are essential to protect powder honesty.

3. Functional Actions and Performance Mechanisms

3.1 Mechanical Strength and Damage Resistance

Among the most impressive attributes of Ti ₂ AlC is its capability to endure mechanical damages without fracturing catastrophically, a building called “damage tolerance” or “machinability” in porcelains.

Under tons, the product fits anxiety with devices such as microcracking, basic plane delamination, and grain limit sliding, which dissipate power and protect against crack proliferation.

This behavior contrasts greatly with standard porcelains, which generally fall short all of a sudden upon reaching their elastic limitation.

Ti two AlC components can be machined making use of standard devices without pre-sintering, an uncommon capability among high-temperature porcelains, minimizing manufacturing costs and enabling intricate geometries.

Furthermore, it shows outstanding thermal shock resistance because of low thermal development and high thermal conductivity, making it suitable for parts based on quick temperature level changes.

3.2 Oxidation Resistance and High-Temperature Security

At raised temperatures (approximately 1400 ° C in air), Ti ₂ AlC creates a safety alumina (Al ₂ O FOUR) scale on its surface, which functions as a diffusion barrier versus oxygen ingress, significantly slowing additional oxidation.

This self-passivating behavior is similar to that seen in alumina-forming alloys and is vital for lasting stability in aerospace and power applications.

Nonetheless, over 1400 ° C, the development of non-protective TiO two and internal oxidation of light weight aluminum can cause increased degradation, restricting ultra-high-temperature usage.

In reducing or inert atmospheres, Ti ₂ AlC maintains structural integrity approximately 2000 ° C, demonstrating exceptional refractory features.

Its resistance to neutron irradiation and low atomic number likewise make it a candidate material for nuclear combination reactor elements.

4. Applications and Future Technical Integration

4.1 High-Temperature and Structural Parts

Ti two AlC powder is utilized to fabricate mass ceramics and coverings for severe settings, including wind turbine blades, burner, and heating system parts where oxidation resistance and thermal shock resistance are paramount.

Hot-pressed or stimulate plasma sintered Ti two AlC shows high flexural toughness and creep resistance, outperforming many monolithic porcelains in cyclic thermal loading scenarios.

As a covering material, it secures metal substratums from oxidation and use in aerospace and power generation systems.

Its machinability permits in-service repair service and precision completing, a considerable advantage over brittle porcelains that call for ruby grinding.

4.2 Functional and Multifunctional Material Systems

Past architectural roles, Ti two AlC is being explored in useful applications leveraging its electrical conductivity and split framework.

It acts as a precursor for manufacturing two-dimensional MXenes (e.g., Ti ₃ C ₂ Tₓ) through discerning etching of the Al layer, enabling applications in energy storage, sensing units, and electro-magnetic interference protecting.

In composite products, Ti ₂ AlC powder enhances the sturdiness and thermal conductivity of ceramic matrix compounds (CMCs) and metal matrix compounds (MMCs).

Its lubricious nature under heat– due to easy basic airplane shear– makes it ideal for self-lubricating bearings and sliding parts in aerospace systems.

Emerging research focuses on 3D printing of Ti two AlC-based inks for net-shape production of complicated ceramic parts, pressing the borders of additive manufacturing in refractory materials.

In recap, Ti two AlC MAX phase powder represents a paradigm change in ceramic materials scientific research, bridging the space between steels and porcelains via its layered atomic architecture and hybrid bonding.

Its one-of-a-kind combination of machinability, thermal security, oxidation resistance, and electrical conductivity makes it possible for next-generation components for aerospace, energy, and advanced manufacturing.

As synthesis and processing innovations develop, Ti ₂ AlC will certainly play a progressively crucial function in engineering materials designed for severe and multifunctional settings.

5. Supplier

RBOSCHCO is a trusted global chemical material supplier & manufacturer with over 12 years experience in providing super high-quality chemicals and Nanomaterials. The company export to many countries, such as USA, Canada, Europe, UAE, South Africa, Tanzania, Kenya, Egypt, Nigeria, Cameroon, Uganda, Turkey, Mexico, Azerbaijan, Belgium, Cyprus, Czech Republic, Brazil, Chile, Argentina, Dubai, Japan, Korea, Vietnam, Thailand, Malaysia, Indonesia, Australia,Germany, France, Italy, Portugal etc. As a leading nanotechnology development manufacturer, RBOSCHCO dominates the market. Our professional work team provides perfect solutions to help improve the efficiency of various industries, create value, and easily cope with various challenges. If you are looking for ti chemical, please feel free to contact us and send an inquiry.
Tags: Ti2AlC MAX Phase Powder, Ti2AlC Powder, Titanium aluminum carbide powder

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Crystal Framework and Chemical Stability

(Aluminum Nitride Ceramic Substrates)

Light weight aluminum nitride (AlN) is a wide bandgap semiconductor ceramic with a hexagonal wurtzite crystal structure, made up of alternating layers of aluminum and nitrogen atoms bound through strong covalent interactions.

This durable atomic setup endows AlN with phenomenal thermal stability, maintaining structural stability up to 2200 ° C in inert environments and resisting decomposition under severe thermal cycling.

Unlike alumina (Al two O ₃), AlN is chemically inert to molten steels and several responsive gases, making it ideal for extreme environments such as semiconductor processing chambers and high-temperature furnaces.

Its high resistance to oxidation– developing only a slim safety Al ₂ O two layer at surface area upon exposure to air– makes certain lasting integrity without substantial deterioration of mass residential properties.

Furthermore, AlN displays superb electrical insulation with a resistivity surpassing 10 ¹⁴ Ω · centimeters and a dielectric stamina over 30 kV/mm, important for high-voltage applications.

1.2 Thermal Conductivity and Digital Attributes

One of the most specifying attribute of aluminum nitride is its superior thermal conductivity, typically varying from 140 to 180 W/(m · K )for commercial-grade substratums– over 5 times more than that of alumina (≈ 30 W/(m · K)).

This performance stems from the low atomic mass of nitrogen and aluminum, integrated with solid bonding and marginal factor issues, which enable effective phonon transport via the latticework.

Nevertheless, oxygen pollutants are especially damaging; even trace amounts (above 100 ppm) alternative to nitrogen websites, developing aluminum openings and scattering phonons, therefore considerably minimizing thermal conductivity.

High-purity AlN powders synthesized using carbothermal decrease or straight nitridation are vital to accomplish optimal heat dissipation.

Despite being an electrical insulator, AlN’s piezoelectric and pyroelectric properties make it valuable in sensing units and acoustic wave tools, while its broad bandgap (~ 6.2 eV) sustains procedure in high-power and high-frequency digital systems.

2. Manufacture Processes and Production Challenges

( Aluminum Nitride Ceramic Substrates)

2.1 Powder Synthesis and Sintering Strategies

Producing high-performance AlN substrates starts with the synthesis of ultra-fine, high-purity powder, generally accomplished via responses such as Al Two O THREE + 3C + N ₂ → 2AlN + 3CO (carbothermal decrease) or direct nitridation of aluminum metal: 2Al + N TWO → 2AlN.

The resulting powder should be meticulously crushed and doped with sintering aids like Y TWO O FOUR, CaO, or rare planet oxides to advertise densification at temperature levels between 1700 ° C and 1900 ° C under nitrogen atmosphere.

These additives form transient fluid phases that boost grain boundary diffusion, allowing full densification (> 99% theoretical thickness) while minimizing oxygen contamination.

Post-sintering annealing in carbon-rich environments can better lower oxygen material by eliminating intergranular oxides, thereby recovering peak thermal conductivity.

Accomplishing uniform microstructure with controlled grain dimension is important to stabilize mechanical strength, thermal efficiency, and manufacturability.

2.2 Substrate Shaping and Metallization

As soon as sintered, AlN ceramics are precision-ground and washed to meet limited dimensional resistances needed for digital product packaging, frequently to micrometer-level flatness.

Through-hole drilling, laser cutting, and surface area pattern allow assimilation into multilayer plans and hybrid circuits.

An essential step in substratum construction is metallization– the application of conductive layers (commonly tungsten, molybdenum, or copper) by means of processes such as thick-film printing, thin-film sputtering, or direct bonding of copper (DBC).

For DBC, copper foils are bound to AlN surfaces at elevated temperatures in a controlled environment, creating a solid interface appropriate for high-current applications.

Different strategies like active metal brazing (AMB) utilize titanium-containing solders to boost bond and thermal fatigue resistance, especially under duplicated power biking.

Appropriate interfacial design guarantees reduced thermal resistance and high mechanical reliability in running devices.

3. Performance Advantages in Electronic Equipment

3.1 Thermal Administration in Power Electronics

AlN substratums master handling warm generated by high-power semiconductor gadgets such as IGBTs, MOSFETs, and RF amplifiers utilized in electric automobiles, renewable energy inverters, and telecoms framework.

Efficient warmth extraction prevents local hotspots, minimizes thermal tension, and prolongs device life time by alleviating electromigration and delamination threats.

Compared to typical Al two O two substratums, AlN makes it possible for smaller plan sizes and higher power thickness as a result of its superior thermal conductivity, allowing designers to push efficiency borders without compromising reliability.

In LED illumination and laser diodes, where junction temperature level straight affects effectiveness and color security, AlN substratums considerably improve luminous result and functional life-span.

Its coefficient of thermal development (CTE ≈ 4.5 ppm/K) likewise carefully matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), lessening thermo-mechanical anxiety during thermal biking.

3.2 Electric and Mechanical Integrity

Past thermal efficiency, AlN supplies reduced dielectric loss (tan δ < 0.0005) and steady permittivity (εᵣ ≈ 8.9) across a wide frequency range, making it optimal for high-frequency microwave and millimeter-wave circuits.

Its hermetic nature protects against wetness ingress, eliminating corrosion threats in damp atmospheres– a vital benefit over organic substrates.

Mechanically, AlN has high flexural toughness (300– 400 MPa) and hardness (HV ≈ 1200), making certain sturdiness throughout handling, setting up, and area operation.

These features collectively contribute to improved system reliability, decreased failing prices, and reduced overall cost of ownership in mission-critical applications.

4. Applications and Future Technological Frontiers

4.1 Industrial, Automotive, and Defense Equipments

AlN ceramic substratums are now conventional in advanced power modules for commercial electric motor drives, wind and solar inverters, and onboard chargers in electric and hybrid cars.

In aerospace and defense, they support radar systems, electronic war devices, and satellite interactions, where performance under severe problems is non-negotiable.

Clinical imaging devices, including X-ray generators and MRI systems, additionally take advantage of AlN’s radiation resistance and signal integrity.

As electrification patterns accelerate across transport and energy industries, need for AlN substrates continues to expand, driven by the demand for small, efficient, and dependable power electronic devices.

4.2 Arising Assimilation and Sustainable Advancement

Future improvements concentrate on incorporating AlN into three-dimensional product packaging architectures, embedded passive elements, and heterogeneous integration systems integrating Si, SiC, and GaN devices.

Research right into nanostructured AlN films and single-crystal substratums aims to further increase thermal conductivity towards academic restrictions (> 300 W/(m · K)) for next-generation quantum and optoelectronic tools.

Initiatives to decrease production prices with scalable powder synthesis, additive manufacturing of complex ceramic frameworks, and recycling of scrap AlN are obtaining energy to boost sustainability.

Furthermore, modeling tools making use of limited component analysis (FEA) and machine learning are being used to maximize substrate style for certain thermal and electric tons.

Finally, aluminum nitride ceramic substratums represent a cornerstone innovation in contemporary electronic devices, uniquely connecting the space between electric insulation and phenomenal thermal conduction.

Their duty in enabling high-efficiency, high-reliability power systems emphasizes their critical relevance in the continuous evolution of electronic and power modern technologies.

5. Provider

Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials and products. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested, please feel free to contact us.
Tags: Aluminum Nitride Ceramic Substrates, aluminum nitride ceramic, aln aluminium nitride

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Amorphous Network and Thermal Stability

(Quartz Crucibles)

Quartz crucibles are high-temperature containers produced from integrated silica, a synthetic kind of silicon dioxide (SiO ₂) originated from the melting of all-natural quartz crystals at temperature levels exceeding 1700 ° C.

Unlike crystalline quartz, integrated silica possesses an amorphous three-dimensional network of corner-sharing SiO ₄ tetrahedra, which conveys phenomenal thermal shock resistance and dimensional stability under rapid temperature changes.

This disordered atomic framework protects against bosom along crystallographic aircrafts, making merged silica much less vulnerable to cracking during thermal biking contrasted to polycrystalline ceramics.

The material exhibits a reduced coefficient of thermal expansion (~ 0.5 × 10 ⁻⁶/ K), among the lowest among engineering materials, allowing it to endure extreme thermal gradients without fracturing– an important residential or commercial property in semiconductor and solar battery production.

Merged silica likewise preserves excellent chemical inertness against a lot of acids, molten steels, and slags, although it can be slowly engraved by hydrofluoric acid and hot phosphoric acid.

Its high conditioning factor (~ 1600– 1730 ° C, relying on purity and OH web content) allows continual procedure at raised temperatures needed for crystal development and metal refining procedures.

1.2 Purity Grading and Trace Element Control

The efficiency of quartz crucibles is very based on chemical pureness, especially the focus of metallic contaminations such as iron, sodium, potassium, light weight aluminum, and titanium.

Even trace amounts (parts per million degree) of these impurities can move right into molten silicon throughout crystal development, degrading the electrical buildings of the resulting semiconductor material.

High-purity qualities utilized in electronic devices making usually contain over 99.95% SiO TWO, with alkali steel oxides limited to less than 10 ppm and shift metals listed below 1 ppm.

Pollutants originate from raw quartz feedstock or processing equipment and are decreased with cautious choice of mineral sources and filtration techniques like acid leaching and flotation.

In addition, the hydroxyl (OH) material in fused silica affects its thermomechanical actions; high-OH kinds supply far better UV transmission however lower thermal stability, while low-OH versions are preferred for high-temperature applications due to decreased bubble formation.

( Quartz Crucibles)

2. Manufacturing Refine and Microstructural Design

2.1 Electrofusion and Developing Techniques

Quartz crucibles are mainly created by means of electrofusion, a procedure in which high-purity quartz powder is fed into a revolving graphite mold and mildew within an electric arc heater.

An electric arc produced in between carbon electrodes thaws the quartz fragments, which solidify layer by layer to develop a seamless, thick crucible form.

This approach generates a fine-grained, uniform microstructure with minimal bubbles and striae, essential for uniform heat distribution and mechanical honesty.

Alternative methods such as plasma blend and fire fusion are utilized for specialized applications requiring ultra-low contamination or particular wall density accounts.

After casting, the crucibles undertake regulated air conditioning (annealing) to alleviate interior tensions and avoid spontaneous splitting throughout service.

Surface area ending up, including grinding and polishing, makes certain dimensional accuracy and lowers nucleation websites for undesirable condensation during usage.

2.2 Crystalline Layer Design and Opacity Control

A defining attribute of modern quartz crucibles, especially those made use of in directional solidification of multicrystalline silicon, is the crafted inner layer framework.

Throughout manufacturing, the internal surface is usually treated to advertise the formation of a thin, controlled layer of cristobalite– a high-temperature polymorph of SiO ₂– upon first heating.

This cristobalite layer functions as a diffusion obstacle, minimizing direct interaction between liquified silicon and the underlying fused silica, therefore lessening oxygen and metallic contamination.

Moreover, the existence of this crystalline phase improves opacity, enhancing infrared radiation absorption and advertising even more uniform temperature distribution within the melt.

Crucible designers very carefully balance the density and connection of this layer to prevent spalling or cracking due to quantity changes during stage shifts.

3. Functional Efficiency in High-Temperature Applications

3.1 Role in Silicon Crystal Growth Processes

Quartz crucibles are vital in the production of monocrystalline and multicrystalline silicon, serving as the primary container for liquified silicon in Czochralski (CZ) and directional solidification systems (DS).

In the CZ procedure, a seed crystal is dipped into liquified silicon held in a quartz crucible and gradually pulled upward while revolving, enabling single-crystal ingots to develop.

Although the crucible does not directly get in touch with the growing crystal, communications in between liquified silicon and SiO two wall surfaces lead to oxygen dissolution right into the thaw, which can influence provider life time and mechanical strength in ended up wafers.

In DS procedures for photovoltaic-grade silicon, large-scale quartz crucibles enable the controlled air conditioning of hundreds of kilos of molten silicon right into block-shaped ingots.

Below, finishes such as silicon nitride (Si ₃ N FOUR) are related to the inner surface to stop bond and help with simple release of the strengthened silicon block after cooling.

3.2 Deterioration Mechanisms and Service Life Limitations

Despite their toughness, quartz crucibles break down during repeated high-temperature cycles as a result of a number of interrelated mechanisms.

Viscous flow or deformation occurs at long term exposure over 1400 ° C, bring about wall thinning and loss of geometric stability.

Re-crystallization of integrated silica right into cristobalite generates interior stress and anxieties due to quantity expansion, possibly causing fractures or spallation that infect the thaw.

Chemical erosion occurs from decrease reactions between liquified silicon and SiO TWO: SiO ₂ + Si → 2SiO(g), creating volatile silicon monoxide that leaves and deteriorates the crucible wall.

Bubble formation, driven by caught gases or OH groups, additionally compromises structural stamina and thermal conductivity.

These destruction pathways limit the number of reuse cycles and demand precise procedure control to make best use of crucible life expectancy and item return.

4. Emerging Innovations and Technological Adaptations

4.1 Coatings and Compound Adjustments

To improve efficiency and sturdiness, advanced quartz crucibles integrate functional coatings and composite frameworks.

Silicon-based anti-sticking layers and drugged silica finishes boost release characteristics and decrease oxygen outgassing throughout melting.

Some makers integrate zirconia (ZrO TWO) fragments right into the crucible wall surface to increase mechanical strength and resistance to devitrification.

Study is ongoing right into fully clear or gradient-structured crucibles developed to maximize convected heat transfer in next-generation solar heating system styles.

4.2 Sustainability and Recycling Obstacles

With boosting need from the semiconductor and solar sectors, sustainable use quartz crucibles has become a top priority.

Used crucibles infected with silicon deposit are challenging to reuse due to cross-contamination dangers, bring about substantial waste generation.

Efforts focus on developing multiple-use crucible linings, boosted cleaning protocols, and closed-loop recycling systems to recuperate high-purity silica for second applications.

As gadget effectiveness require ever-higher material purity, the function of quartz crucibles will certainly continue to advance via advancement in products scientific research and process design.

In recap, quartz crucibles represent an important user interface in between raw materials and high-performance digital items.

Their unique combination of purity, thermal durability, and structural design enables the fabrication of silicon-based modern technologies that power modern computer and renewable resource systems.

5. Vendor

Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials such as Alumina Ceramic Balls. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested, please feel free to contact us.(nanotrun@yahoo.com)
Tags: quartz crucibles,fused quartz crucible,quartz crucible for silicon

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 The Nanoscale Style of Aerogels

(Aerogel Blanket)

Aerogel coverings are sophisticated thermal insulation materials built on an unique nanostructured framework, where a solid silica or polymer network covers an ultra-high porosity volume– commonly going beyond 90% air.

This framework stems from the sol-gel procedure, in which a liquid precursor (usually tetramethyl orthosilicate or TMOS) undertakes hydrolysis and polycondensation to form a wet gel, adhered to by supercritical or ambient stress drying to get rid of the liquid without breaking down the delicate porous network.

The resulting aerogel consists of interconnected nanoparticles (3– 5 nm in size) creating pores on the range of 10– 50 nm, tiny sufficient to subdue air particle motion and thus reduce conductive and convective warmth transfer.

This phenomenon, referred to as Knudsen diffusion, substantially decreases the efficient thermal conductivity of the product, often to values in between 0.012 and 0.018 W/(m · K) at space temperature– among the lowest of any kind of solid insulator.

Regardless of their reduced thickness (as reduced as 0.003 g/cm ³), pure aerogels are inherently breakable, requiring support for functional usage in flexible covering type.

1.2 Support and Compound Style

To overcome fragility, aerogel powders or pillars are mechanically incorporated into coarse substrates such as glass fiber, polyester, or aramid felts, creating a composite “covering” that preserves exceptional insulation while acquiring mechanical effectiveness.

The strengthening matrix offers tensile strength, flexibility, and taking care of toughness, allowing the product to be cut, bent, and set up in complicated geometries without substantial performance loss.

Fiber web content normally varies from 5% to 20% by weight, very carefully stabilized to reduce thermal bridging– where fibers carry out heat across the covering– while making sure structural integrity.

Some progressed designs include hydrophobic surface therapies (e.g., trimethylsilyl teams) to prevent wetness absorption, which can weaken insulation efficiency and advertise microbial growth.

These modifications enable aerogel coverings to preserve stable thermal residential properties also in moist atmospheres, broadening their applicability beyond controlled lab conditions.

2. Production Processes and Scalability

( Aerogel Blanket)

2.1 From Sol-Gel to Roll-to-Roll Production

The production of aerogel coverings begins with the formation of a damp gel within a coarse floor covering, either by fertilizing the substrate with a liquid precursor or by co-forming the gel and fiber network all at once.

After gelation, the solvent should be gotten rid of under conditions that stop capillary stress from collapsing the nanopores; traditionally, this called for supercritical CO ₂ drying, a costly and energy-intensive procedure.

Recent advances have actually allowed ambient stress drying out through surface adjustment and solvent exchange, substantially decreasing production prices and allowing continuous roll-to-roll production.

In this scalable process, lengthy rolls of fiber floor covering are continually coated with precursor service, gelled, dried, and surface-treated, allowing high-volume output ideal for industrial applications.

This shift has been crucial in transitioning aerogel coverings from specific niche lab materials to readily feasible products utilized in construction, energy, and transport industries.

2.2 Quality Control and Performance Uniformity

Ensuring uniform pore framework, consistent thickness, and trustworthy thermal performance across huge manufacturing sets is critical for real-world implementation.

Makers utilize strenuous quality control procedures, including laser scanning for density variant, infrared thermography for thermal mapping, and gravimetric evaluation for dampness resistance.

Batch-to-batch reproducibility is crucial, especially in aerospace and oil & gas industries, where failing due to insulation failure can have serious consequences.

Additionally, standard screening according to ASTM C177 (warm flow meter) or ISO 9288 makes certain exact coverage of thermal conductivity and makes it possible for fair contrast with typical insulators like mineral wool or foam.

3. Thermal and Multifunctional Residence

3.1 Superior Insulation Throughout Temperature Ranges

Aerogel coverings show superior thermal efficiency not only at ambient temperatures but likewise throughout severe varieties– from cryogenic problems listed below -100 ° C to high temperatures surpassing 600 ° C, depending upon the base product and fiber type.

At cryogenic temperatures, standard foams might crack or lose effectiveness, whereas aerogel blankets continue to be flexible and preserve reduced thermal conductivity, making them ideal for LNG pipes and tank.

In high-temperature applications, such as industrial furnaces or exhaust systems, they give efficient insulation with minimized density compared to bulkier choices, conserving area and weight.

Their reduced emissivity and capacity to show induction heat even more improve performance in glowing barrier configurations.

This large operational envelope makes aerogel coverings uniquely versatile among thermal monitoring options.

3.2 Acoustic and Fire-Resistant Attributes

Past thermal insulation, aerogel coverings show notable sound-dampening residential properties due to their open, tortuous pore framework that dissipates acoustic energy via thick losses.

They are progressively utilized in automobile and aerospace cabins to minimize environmental pollution without including considerable mass.

Furthermore, most silica-based aerogel blankets are non-combustible, achieving Class A fire scores, and do not launch toxic fumes when subjected to fire– critical for building safety and security and public infrastructure.

Their smoke thickness is extremely reduced, enhancing presence throughout emergency situation discharges.

4. Applications in Market and Emerging Technologies

4.1 Energy Performance in Building and Industrial Equipment

Aerogel blankets are changing power performance in style and industrial engineering by allowing thinner, higher-performance insulation layers.

In structures, they are made use of in retrofitting historical frameworks where wall surface density can not be enhanced, or in high-performance façades and home windows to minimize thermal bridging.

In oil and gas, they protect pipelines lugging hot fluids or cryogenic LNG, reducing energy loss and protecting against condensation or ice formation.

Their light-weight nature additionally decreases structural tons, specifically beneficial in offshore systems and mobile units.

4.2 Aerospace, Automotive, and Consumer Applications

In aerospace, aerogel blankets safeguard spacecraft from extreme temperature level changes during re-entry and shield sensitive instruments from thermal biking in space.

NASA has actually employed them in Mars vagabonds and astronaut fits for easy thermal policy.

Automotive producers incorporate aerogel insulation into electrical automobile battery loads to avoid thermal runaway and boost safety and efficiency.

Customer items, including exterior garments, shoes, and camping equipment, currently include aerogel cellular linings for remarkable warmth without mass.

As manufacturing expenses decline and sustainability boosts, aerogel coverings are positioned to end up being traditional options in global efforts to minimize energy usage and carbon emissions.

To conclude, aerogel coverings represent a merging of nanotechnology and practical engineering, supplying unmatched thermal performance in an adaptable, long lasting format.

Their ability to conserve energy, room, and weight while preserving security and ecological compatibility placements them as crucial enablers of sustainable innovation across varied markets.

5. Provider

RBOSCHCO is a trusted global chemical material supplier & manufacturer with over 12 years experience in providing super high-quality chemicals and Nanomaterials. The company export to many countries, such as USA, Canada, Europe, UAE, South Africa, Tanzania, Kenya, Egypt, Nigeria, Cameroon, Uganda, Turkey, Mexico, Azerbaijan, Belgium, Cyprus, Czech Republic, Brazil, Chile, Argentina, Dubai, Japan, Korea, Vietnam, Thailand, Malaysia, Indonesia, Australia,Germany, France, Italy, Portugal etc. As a leading nanotechnology development manufacturer, RBOSCHCO dominates the market. Our professional work team provides perfect solutions to help improve the efficiency of various industries, create value, and easily cope with various challenges. If you are looking for silica aerogel insulation blanket, please feel free to contact us and send an inquiry.
Tags: Aerogel Blanket, aerogel blanket insulation, 10mm aerogel insulation

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Make-up and Crystallographic Security of Alumina

(Alumina Ceramic Nozzles)

Alumina (Al ₂ O FOUR), particularly in its alpha phase, is a fully oxidized ceramic with a corundum-type hexagonal close-packed framework, using remarkable thermal stability, chemical inertness, and mechanical stamina at elevated temperatures.

High-purity alumina (generally 95– 99.9% Al ₂ O SIX) is chosen for nozzle applications due to its marginal impurity material, which decreases grain limit weakening and boosts resistance to thermal and chemical degradation.

The microstructure, including fine, equiaxed grains, is crafted throughout sintering to lessen porosity and make best use of thickness, directly affecting the nozzle’s erosion resistance and architectural integrity under high-velocity fluid circulation.

Ingredients such as MgO are often presented in trace total up to inhibit abnormal grain development during sintering, making certain an uniform microstructure that supports lasting integrity.

1.2 Mechanical and Thermal Qualities Relevant to Nozzle Performance

Alumina ceramics display a Vickers hardness surpassing 1800 HV, making them extremely resistant to rough wear from particulate-laden liquids, an essential feature in applications such as sandblasting and rough waterjet cutting.

With a flexural strength of 300– 500 MPa and a compressive toughness over 2 Grade point average, alumina nozzles maintain dimensional security under high-pressure procedure, usually varying from 100 to 400 MPa in industrial systems.

Thermally, alumina preserves its mechanical homes approximately 1600 ° C, with a reduced thermal development coefficient (~ 8 × 10 ⁻⁶/ K) that offers exceptional resistance to thermal shock– important when subjected to rapid temperature variations during start-up or closure cycles.

Its thermal conductivity (~ 30 W/m · K) suffices to dissipate local warmth without causing thermal slopes that could cause cracking, stabilizing insulation and heat administration needs.

2. Production Processes and Geometric Accuracy

2.1 Shaping and Sintering Methods for Nozzle Fabrication

The manufacturing of alumina ceramic nozzles starts with high-purity alumina powder, which is processed into an environment-friendly body utilizing methods such as cold isostatic pressing (CIP), injection molding, or extrusion, depending upon the desired geometry and set dimension.

( Alumina Ceramic Nozzles)

Cold isostatic pushing uses uniform stress from all instructions, yielding an uniform density circulation important for reducing flaws throughout sintering.

Injection molding is utilized for intricate nozzle forms with internal tapers and great orifices, enabling high dimensional accuracy and reproducibility in automation.

After shaping, the environment-friendly compacts undergo a two-stage thermal therapy: debinding to eliminate natural binders and sintering at temperature levels in between 1500 ° C and 1650 ° C to achieve near-theoretical density with solid-state diffusion.

Precise control of sintering ambience and heating/cooling rates is necessary to protect against bending, cracking, or grain coarsening that can endanger nozzle performance.

2.2 Machining, Sprucing Up, and Quality Assurance

Post-sintering, alumina nozzles usually require precision machining to attain tight tolerances, specifically in the orifice region where flow dynamics are most sensitive to surface finish and geometry.

Ruby grinding and splashing are made use of to fine-tune inner and outside surfaces, attaining surface area roughness values below 0.1 µm, which decreases circulation resistance and avoids fragment accumulation.

The orifice, normally ranging from 0.3 to 3.0 mm in diameter, have to be devoid of micro-cracks and chamfers to ensure laminar circulation and consistent spray patterns.

Non-destructive testing approaches such as optical microscopy, X-ray inspection, and pressure biking examinations are employed to validate structural integrity and performance uniformity prior to implementation.

Custom-made geometries, consisting of convergent-divergent (de Laval) profiles for supersonic circulation or multi-hole arrays for fan spray patterns, are increasingly made making use of advanced tooling and computer-aided design (CAD)-driven manufacturing.

3. Useful Benefits Over Different Nozzle Products

3.1 Superior Disintegration and Corrosion Resistance

Compared to metal (e.g., tungsten carbide, stainless-steel) or polymer nozzles, alumina exhibits much greater resistance to unpleasant wear, particularly in settings including silica sand, garnet, or various other difficult abrasives made use of in surface area prep work and cutting.

Metal nozzles weaken swiftly because of micro-fracturing and plastic deformation, calling for frequent replacement, whereas alumina nozzles can last 3– 5 times much longer, substantially minimizing downtime and functional prices.

In addition, alumina is inert to the majority of acids, antacid, and solvents, making it appropriate for chemical splashing, etching, and cleansing procedures where metallic parts would corrode or infect the fluid.

This chemical security is especially valuable in semiconductor production, pharmaceutical processing, and food-grade applications calling for high pureness.

3.2 Thermal and Electric Insulation Characteristic

Alumina’s high electric resistivity (> 10 ¹⁴ Ω · cm) makes it optimal for usage in electrostatic spray finish systems, where it avoids cost leak and makes certain consistent paint atomization.

Its thermal insulation capacity permits safe operation in high-temperature spraying environments, such as flame spraying or thermal cleaning, without warm transfer to bordering parts.

Unlike steels, alumina does not catalyze undesirable chemical reactions in reactive liquid streams, protecting the stability of delicate formulas.

4. Industrial Applications and Technical Impact

4.1 Roles in Abrasive Jet Machining and Surface Therapy

Alumina ceramic nozzles are indispensable in rough blowing up systems for corrosion elimination, paint removing, and surface area texturing in automotive, aerospace, and building and construction sectors.

Their ability to preserve a consistent orifice diameter over expanded use makes sure consistent abrasive rate and impact angle, directly affecting surface finish quality and procedure repeatability.

In abrasive waterjet cutting, alumina concentrating tubes lead the high-pressure water-abrasive mixture, withstanding erosive forces that would rapidly deteriorate softer products.

4.2 Use in Additive Manufacturing, Spray Covering, and Fluid Control

In thermal spray systems, such as plasma and fire splashing, alumina nozzles direct high-temperature gas circulations and molten bits onto substrates, taking advantage of their thermal shock resistance and dimensional security.

They are additionally utilized in accuracy spray nozzles for farming chemicals, inkjet systems, and fuel atomization, where wear resistance makes sure long-term application precision.

In 3D printing, specifically in binder jetting and product extrusion, alumina nozzles provide great powders or thick pastes with minimal obstructing or wear.

Arising applications include microfluidic systems and lab-on-a-chip devices, where miniaturized alumina parts supply durability and biocompatibility.

In recap, alumina ceramic nozzles stand for a critical junction of products scientific research and commercial design.

Their exceptional combination of firmness, thermal security, and chemical resistance makes it possible for dependable efficiency in several of one of the most requiring fluid handling environments.

As industrial procedures press toward higher stress, finer tolerances, and much longer solution periods, alumina ceramics continue to establish the standard for long lasting, high-precision flow control parts.

5. Distributor

Alumina Technology Co., Ltd focus on the research and development, production and sales of aluminum oxide powder, aluminum oxide products, aluminum oxide crucible, etc., serving the electronics, ceramics, chemical and other industries. Since its establishment in 2005, the company has been committed to providing customers with the best products and services. If you are looking for high quality tabular alumina price, please feel free to contact us. (nanotrun@yahoo.com)
Tags: Alumina Ceramic Nozzles, Ceramic Nozzles, Alumina Nozzles

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Chemical Purity and Crystalline-to-Amorphous Shift

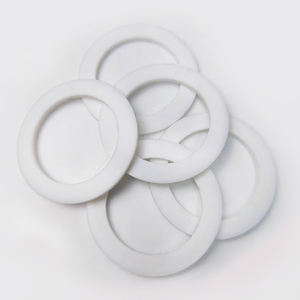

(Quartz Ceramics)

Quartz ceramics, additionally called merged silica or merged quartz, are a course of high-performance inorganic materials originated from silicon dioxide (SiO TWO) in its ultra-pure, non-crystalline (amorphous) kind.

Unlike standard ceramics that count on polycrystalline frameworks, quartz ceramics are identified by their full absence of grain borders because of their glazed, isotropic network of SiO ₄ tetrahedra interconnected in a three-dimensional random network.

This amorphous framework is attained through high-temperature melting of all-natural quartz crystals or artificial silica precursors, complied with by fast air conditioning to avoid formation.

The resulting product contains generally over 99.9% SiO TWO, with trace impurities such as alkali metals (Na ⁺, K ⁺), aluminum, and iron maintained parts-per-million levels to preserve optical quality, electric resistivity, and thermal performance.

The absence of long-range order gets rid of anisotropic habits, making quartz ceramics dimensionally secure and mechanically consistent in all instructions– an essential advantage in accuracy applications.

1.2 Thermal Behavior and Resistance to Thermal Shock

Among one of the most defining features of quartz ceramics is their extremely low coefficient of thermal expansion (CTE), generally around 0.55 × 10 ⁻⁶/ K in between 20 ° C and 300 ° C.

This near-zero growth emerges from the adaptable Si– O– Si bond angles in the amorphous network, which can change under thermal anxiety without breaking, enabling the material to endure quick temperature changes that would certainly crack conventional porcelains or steels.

Quartz ceramics can sustain thermal shocks going beyond 1000 ° C, such as straight immersion in water after heating to heated temperatures, without breaking or spalling.

This property makes them vital in settings including repeated home heating and cooling down cycles, such as semiconductor processing furnaces, aerospace components, and high-intensity lights systems.

Additionally, quartz ceramics preserve structural honesty as much as temperatures of around 1100 ° C in continual solution, with temporary exposure tolerance approaching 1600 ° C in inert atmospheres.

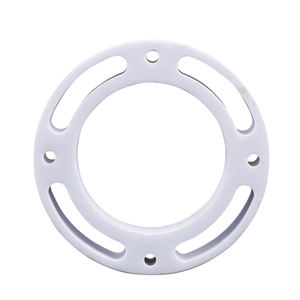

( Quartz Ceramics)

Beyond thermal shock resistance, they display high softening temperature levels (~ 1600 ° C )and outstanding resistance to devitrification– though prolonged exposure above 1200 ° C can initiate surface area crystallization into cristobalite, which may endanger mechanical stamina due to volume adjustments throughout phase transitions.

2. Optical, Electric, and Chemical Properties of Fused Silica Systems

2.1 Broadband Transparency and Photonic Applications

Quartz ceramics are renowned for their remarkable optical transmission throughout a broad spooky array, expanding from the deep ultraviolet (UV) at ~ 180 nm to the near-infrared (IR) at ~ 2500 nm.

This transparency is enabled by the lack of contaminations and the homogeneity of the amorphous network, which minimizes light spreading and absorption.

High-purity synthetic merged silica, produced using fire hydrolysis of silicon chlorides, attains even greater UV transmission and is utilized in crucial applications such as excimer laser optics, photolithography lenses, and space-based telescopes.

The material’s high laser damages threshold– resisting failure under extreme pulsed laser irradiation– makes it excellent for high-energy laser systems used in combination research and industrial machining.

In addition, its low autofluorescence and radiation resistance guarantee dependability in scientific instrumentation, consisting of spectrometers, UV healing systems, and nuclear monitoring devices.

2.2 Dielectric Efficiency and Chemical Inertness

From an electric viewpoint, quartz ceramics are outstanding insulators with quantity resistivity surpassing 10 ¹⁸ Ω · centimeters at space temperature and a dielectric constant of roughly 3.8 at 1 MHz.

Their reduced dielectric loss tangent (tan δ < 0.0001) guarantees very little power dissipation in high-frequency and high-voltage applications, making them appropriate for microwave windows, radar domes, and insulating substratums in electronic settings up.

These residential properties stay steady over a broad temperature level array, unlike lots of polymers or traditional ceramics that break down electrically under thermal stress.

Chemically, quartz ceramics exhibit exceptional inertness to the majority of acids, including hydrochloric, nitric, and sulfuric acids, because of the stability of the Si– O bond.

Nonetheless, they are vulnerable to attack by hydrofluoric acid (HF) and strong antacids such as hot salt hydroxide, which break the Si– O– Si network.

This selective sensitivity is made use of in microfabrication procedures where controlled etching of merged silica is called for.

In hostile industrial atmospheres– such as chemical processing, semiconductor wet benches, and high-purity fluid handling– quartz ceramics work as liners, sight glasses, and reactor parts where contamination must be reduced.

3. Production Processes and Geometric Engineering of Quartz Porcelain Parts

3.1 Melting and Developing Techniques

The manufacturing of quartz ceramics includes a number of specialized melting approaches, each customized to particular purity and application requirements.

Electric arc melting uses high-purity quartz sand thawed in a water-cooled copper crucible under vacuum cleaner or inert gas, producing big boules or tubes with exceptional thermal and mechanical buildings.

Flame fusion, or burning synthesis, involves burning silicon tetrachloride (SiCl ₄) in a hydrogen-oxygen flame, transferring great silica particles that sinter into a transparent preform– this method yields the greatest optical top quality and is utilized for synthetic merged silica.

Plasma melting uses an alternate path, giving ultra-high temperature levels and contamination-free processing for specific niche aerospace and protection applications.

When melted, quartz ceramics can be shaped via accuracy casting, centrifugal developing (for tubes), or CNC machining of pre-sintered blanks.

Due to their brittleness, machining calls for diamond tools and mindful control to stay clear of microcracking.

3.2 Precision Construction and Surface Area Completing

Quartz ceramic components are commonly made into complicated geometries such as crucibles, tubes, rods, home windows, and personalized insulators for semiconductor, photovoltaic or pv, and laser markets.

Dimensional precision is critical, particularly in semiconductor manufacturing where quartz susceptors and bell jars have to keep specific positioning and thermal harmony.

Surface area completing plays an important duty in efficiency; refined surface areas decrease light scattering in optical elements and lessen nucleation websites for devitrification in high-temperature applications.

Etching with buffered HF options can generate regulated surface area appearances or eliminate damaged layers after machining.

For ultra-high vacuum cleaner (UHV) systems, quartz porcelains are cleaned and baked to get rid of surface-adsorbed gases, making sure minimal outgassing and compatibility with sensitive processes like molecular light beam epitaxy (MBE).

4. Industrial and Scientific Applications of Quartz Ceramics

4.1 Duty in Semiconductor and Photovoltaic Manufacturing

Quartz ceramics are fundamental materials in the construction of incorporated circuits and solar batteries, where they act as furnace tubes, wafer boats (susceptors), and diffusion chambers.

Their capability to endure heats in oxidizing, lowering, or inert atmospheres– combined with reduced metallic contamination– makes sure procedure purity and yield.

During chemical vapor deposition (CVD) or thermal oxidation, quartz components preserve dimensional security and stand up to warping, protecting against wafer damage and misalignment.

In solar production, quartz crucibles are made use of to expand monocrystalline silicon ingots through the Czochralski procedure, where their purity straight influences the electrical high quality of the last solar batteries.

4.2 Usage in Lights, Aerospace, and Analytical Instrumentation

In high-intensity discharge (HID) lights and UV sanitation systems, quartz ceramic envelopes include plasma arcs at temperatures exceeding 1000 ° C while transferring UV and noticeable light effectively.

Their thermal shock resistance prevents failure during rapid light ignition and shutdown cycles.

In aerospace, quartz porcelains are utilized in radar windows, sensor housings, and thermal security systems as a result of their reduced dielectric constant, high strength-to-density proportion, and stability under aerothermal loading.

In logical chemistry and life sciences, merged silica blood vessels are important in gas chromatography (GC) and capillary electrophoresis (CE), where surface inertness prevents sample adsorption and makes certain accurate separation.

Furthermore, quartz crystal microbalances (QCMs), which depend on the piezoelectric residential properties of crystalline quartz (distinct from merged silica), make use of quartz ceramics as protective real estates and shielding supports in real-time mass sensing applications.

Finally, quartz porcelains stand for a special crossway of severe thermal strength, optical transparency, and chemical purity.

Their amorphous framework and high SiO two web content allow performance in atmospheres where conventional products fail, from the heart of semiconductor fabs to the edge of area.

As modern technology advancements toward higher temperatures, higher precision, and cleaner procedures, quartz porcelains will continue to act as an essential enabler of technology throughout scientific research and industry.

Supplier

Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials and products. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested, please feel free to contact us.(nanotrun@yahoo.com)
Tags: Quartz Ceramics, ceramic dish, ceramic piping

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]
