1. Fundamental Structure and Material Structure
1.1 The Nanoscale Style of Aerogels

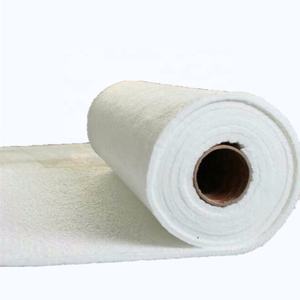

(Aerogel Blanket)
Aerogel coverings are sophisticated thermal insulation materials built on an unique nanostructured framework, where a solid silica or polymer network covers an ultra-high porosity volume– commonly going beyond 90% air.
This framework stems from the sol-gel procedure, in which a liquid precursor (usually tetramethyl orthosilicate or TMOS) undertakes hydrolysis and polycondensation to form a wet gel, adhered to by supercritical or ambient stress drying to get rid of the liquid without breaking down the delicate porous network.
The resulting aerogel consists of interconnected nanoparticles (3– 5 nm in size) creating pores on the range of 10– 50 nm, tiny sufficient to subdue air particle motion and thus reduce conductive and convective warmth transfer.
This phenomenon, referred to as Knudsen diffusion, substantially decreases the efficient thermal conductivity of the product, often to values in between 0.012 and 0.018 W/(m · K) at space temperature– among the lowest of any kind of solid insulator.
Regardless of their reduced thickness (as reduced as 0.003 g/cm ³), pure aerogels are inherently breakable, requiring support for functional usage in flexible covering type.
1.2 Support and Compound Style
To overcome fragility, aerogel powders or pillars are mechanically incorporated into coarse substrates such as glass fiber, polyester, or aramid felts, creating a composite “covering” that preserves exceptional insulation while acquiring mechanical effectiveness.
The strengthening matrix offers tensile strength, flexibility, and taking care of toughness, allowing the product to be cut, bent, and set up in complicated geometries without substantial performance loss.
Fiber web content normally varies from 5% to 20% by weight, very carefully stabilized to reduce thermal bridging– where fibers carry out heat across the covering– while making sure structural integrity.
Some progressed designs include hydrophobic surface therapies (e.g., trimethylsilyl teams) to prevent wetness absorption, which can weaken insulation efficiency and advertise microbial growth.
These modifications enable aerogel coverings to preserve stable thermal residential properties also in moist atmospheres, broadening their applicability beyond controlled lab conditions.
2. Production Processes and Scalability

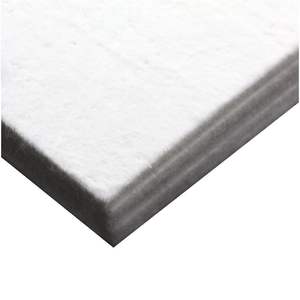

( Aerogel Blanket)
2.1 From Sol-Gel to Roll-to-Roll Production
The production of aerogel coverings begins with the formation of a damp gel within a coarse floor covering, either by fertilizing the substrate with a liquid precursor or by co-forming the gel and fiber network all at once.
After gelation, the solvent should be gotten rid of under conditions that stop capillary stress from collapsing the nanopores; traditionally, this called for supercritical CO â‚‚ drying, a costly and energy-intensive procedure.
Recent advances have actually allowed ambient stress drying out through surface adjustment and solvent exchange, substantially decreasing production prices and allowing continuous roll-to-roll production.
In this scalable process, lengthy rolls of fiber floor covering are continually coated with precursor service, gelled, dried, and surface-treated, allowing high-volume output ideal for industrial applications.
This shift has been crucial in transitioning aerogel coverings from specific niche lab materials to readily feasible products utilized in construction, energy, and transport industries.
2.2 Quality Control and Performance Uniformity
Ensuring uniform pore framework, consistent thickness, and trustworthy thermal performance across huge manufacturing sets is critical for real-world implementation.
Makers utilize strenuous quality control procedures, including laser scanning for density variant, infrared thermography for thermal mapping, and gravimetric evaluation for dampness resistance.
Batch-to-batch reproducibility is crucial, especially in aerospace and oil & gas industries, where failing due to insulation failure can have serious consequences.
Additionally, standard screening according to ASTM C177 (warm flow meter) or ISO 9288 makes certain exact coverage of thermal conductivity and makes it possible for fair contrast with typical insulators like mineral wool or foam.
3. Thermal and Multifunctional Residence
3.1 Superior Insulation Throughout Temperature Ranges
Aerogel coverings show superior thermal efficiency not only at ambient temperatures but likewise throughout severe varieties– from cryogenic problems listed below -100 ° C to high temperatures surpassing 600 ° C, depending upon the base product and fiber type.
At cryogenic temperatures, standard foams might crack or lose effectiveness, whereas aerogel blankets continue to be flexible and preserve reduced thermal conductivity, making them ideal for LNG pipes and tank.
In high-temperature applications, such as industrial furnaces or exhaust systems, they give efficient insulation with minimized density compared to bulkier choices, conserving area and weight.
Their reduced emissivity and capacity to show induction heat even more improve performance in glowing barrier configurations.
This large operational envelope makes aerogel coverings uniquely versatile among thermal monitoring options.
3.2 Acoustic and Fire-Resistant Attributes
Past thermal insulation, aerogel coverings show notable sound-dampening residential properties due to their open, tortuous pore framework that dissipates acoustic energy via thick losses.
They are progressively utilized in automobile and aerospace cabins to minimize environmental pollution without including considerable mass.
Furthermore, most silica-based aerogel blankets are non-combustible, achieving Class A fire scores, and do not launch toxic fumes when subjected to fire– critical for building safety and security and public infrastructure.
Their smoke thickness is extremely reduced, enhancing presence throughout emergency situation discharges.
4. Applications in Market and Emerging Technologies
4.1 Energy Performance in Building and Industrial Equipment
Aerogel blankets are changing power performance in style and industrial engineering by allowing thinner, higher-performance insulation layers.
In structures, they are made use of in retrofitting historical frameworks where wall surface density can not be enhanced, or in high-performance façades and home windows to minimize thermal bridging.
In oil and gas, they protect pipelines lugging hot fluids or cryogenic LNG, reducing energy loss and protecting against condensation or ice formation.
Their light-weight nature additionally decreases structural tons, specifically beneficial in offshore systems and mobile units.
4.2 Aerospace, Automotive, and Consumer Applications
In aerospace, aerogel blankets safeguard spacecraft from extreme temperature level changes during re-entry and shield sensitive instruments from thermal biking in space.
NASA has actually employed them in Mars vagabonds and astronaut fits for easy thermal policy.
Automotive producers incorporate aerogel insulation into electrical automobile battery loads to avoid thermal runaway and boost safety and efficiency.
Customer items, including exterior garments, shoes, and camping equipment, currently include aerogel cellular linings for remarkable warmth without mass.
As manufacturing expenses decline and sustainability boosts, aerogel coverings are positioned to end up being traditional options in global efforts to minimize energy usage and carbon emissions.
To conclude, aerogel coverings represent a merging of nanotechnology and practical engineering, supplying unmatched thermal performance in an adaptable, long lasting format.
Their ability to conserve energy, room, and weight while preserving security and ecological compatibility placements them as crucial enablers of sustainable innovation across varied markets.
