1. Material Principles and Crystallographic Quality
1.1 Phase Make-up and Polymorphic Actions

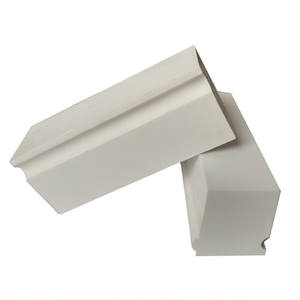

(Alumina Ceramic Blocks)
Alumina (Al Two O THREE), particularly in its α-phase form, is one of the most commonly utilized technological ceramics as a result of its outstanding equilibrium of mechanical toughness, chemical inertness, and thermal security.
While aluminum oxide exists in a number of metastable stages (γ, δ, θ, κ), α-alumina is the thermodynamically steady crystalline structure at heats, identified by a dense hexagonal close-packed (HCP) plan of oxygen ions with aluminum cations inhabiting two-thirds of the octahedral interstitial sites.
This ordered structure, referred to as diamond, gives high latticework energy and strong ionic-covalent bonding, leading to a melting factor of roughly 2054 ° C and resistance to stage improvement under severe thermal conditions.
The shift from transitional aluminas to α-Al two O four generally occurs over 1100 ° C and is accompanied by substantial quantity shrinking and loss of area, making phase control important throughout sintering.
High-purity α-alumina blocks (> 99.5% Al Two O ₃) show superior efficiency in severe environments, while lower-grade compositions (90– 95%) may consist of second phases such as mullite or glazed grain limit phases for cost-efficient applications.
1.2 Microstructure and Mechanical Stability
The efficiency of alumina ceramic blocks is exceptionally influenced by microstructural attributes consisting of grain size, porosity, and grain limit communication.
Fine-grained microstructures (grain dimension < 5 µm) normally give greater flexural toughness (approximately 400 MPa) and boosted fracture toughness contrasted to coarse-grained counterparts, as smaller sized grains hamper crack propagation.
Porosity, even at low degrees (1– 5%), substantially decreases mechanical toughness and thermal conductivity, demanding full densification through pressure-assisted sintering approaches such as hot pushing or warm isostatic pressing (HIP).
Additives like MgO are commonly introduced in trace amounts (≈ 0.1 wt%) to inhibit irregular grain development during sintering, making sure uniform microstructure and dimensional security.
The resulting ceramic blocks exhibit high hardness (≈ 1800 HV), outstanding wear resistance, and low creep prices at raised temperature levels, making them appropriate for load-bearing and abrasive environments.
2. Manufacturing and Handling Techniques

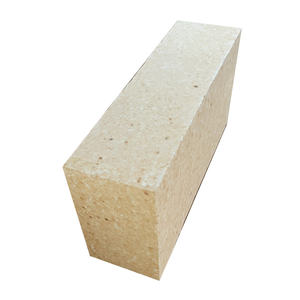

( Alumina Ceramic Blocks)
2.1 Powder Prep Work and Shaping Methods
The manufacturing of alumina ceramic blocks begins with high-purity alumina powders derived from calcined bauxite using the Bayer process or manufactured via rainfall or sol-gel routes for greater purity.
Powders are crushed to attain slim fragment dimension distribution, enhancing packaging density and sinterability.
Shaping into near-net geometries is accomplished with different developing methods: uniaxial pressing for basic blocks, isostatic pressing for uniform thickness in intricate shapes, extrusion for long sections, and slip casting for intricate or large components.
Each method influences environment-friendly body thickness and homogeneity, which directly influence final residential or commercial properties after sintering.
For high-performance applications, advanced developing such as tape spreading or gel-casting may be utilized to achieve remarkable dimensional control and microstructural uniformity.
2.2 Sintering and Post-Processing
Sintering in air at temperatures in between 1600 ° C and 1750 ° C allows diffusion-driven densification, where particle necks expand and pores diminish, causing a totally dense ceramic body.
Ambience control and precise thermal profiles are essential to avoid bloating, bending, or differential shrinking.
Post-sintering procedures include diamond grinding, washing, and brightening to achieve tight tolerances and smooth surface coatings called for in sealing, sliding, or optical applications.
Laser cutting and waterjet machining allow precise personalization of block geometry without causing thermal stress.
Surface treatments such as alumina finishing or plasma spraying can further enhance wear or rust resistance in specialized service problems.
3. Functional Characteristics and Performance Metrics
3.1 Thermal and Electrical Habits
Alumina ceramic blocks display moderate thermal conductivity (20– 35 W/(m · K)), dramatically higher than polymers and glasses, allowing effective warm dissipation in digital and thermal administration systems.
They maintain architectural integrity up to 1600 ° C in oxidizing atmospheres, with low thermal development (≈ 8 ppm/K), contributing to excellent thermal shock resistance when correctly created.
Their high electric resistivity (> 10 ¹ⴠΩ · centimeters) and dielectric toughness (> 15 kV/mm) make them excellent electric insulators in high-voltage environments, including power transmission, switchgear, and vacuum systems.
Dielectric constant (εᵣ ≈ 9– 10) remains stable over a wide frequency array, supporting use in RF and microwave applications.
These residential properties enable alumina obstructs to work accurately in environments where natural materials would certainly weaken or stop working.
3.2 Chemical and Environmental Resilience
One of the most beneficial attributes of alumina blocks is their phenomenal resistance to chemical assault.
They are extremely inert to acids (other than hydrofluoric and hot phosphoric acids), antacid (with some solubility in strong caustics at raised temperature levels), and molten salts, making them appropriate for chemical handling, semiconductor manufacture, and pollution control equipment.
Their non-wetting habits with many liquified steels and slags enables usage in crucibles, thermocouple sheaths, and heater linings.
Furthermore, alumina is safe, biocompatible, and radiation-resistant, expanding its utility right into clinical implants, nuclear securing, and aerospace parts.
Very little outgassing in vacuum settings better qualifies it for ultra-high vacuum (UHV) systems in research study and semiconductor production.
4. Industrial Applications and Technological Combination
4.1 Structural and Wear-Resistant Parts
Alumina ceramic blocks function as critical wear parts in sectors ranging from mining to paper production.
They are utilized as liners in chutes, receptacles, and cyclones to withstand abrasion from slurries, powders, and granular products, substantially prolonging service life compared to steel.
In mechanical seals and bearings, alumina obstructs supply low friction, high solidity, and corrosion resistance, minimizing upkeep and downtime.
Custom-shaped blocks are incorporated right into reducing devices, dies, and nozzles where dimensional stability and side retention are vital.
Their light-weight nature (density ≈ 3.9 g/cm FOUR) additionally adds to power cost savings in relocating components.
4.2 Advanced Engineering and Emerging Uses
Beyond conventional roles, alumina blocks are progressively employed in sophisticated technical systems.
In electronic devices, they work as insulating substratums, warm sinks, and laser cavity elements as a result of their thermal and dielectric homes.
In energy systems, they function as solid oxide gas cell (SOFC) elements, battery separators, and fusion reactor plasma-facing materials.
Additive production of alumina through binder jetting or stereolithography is arising, enabling intricate geometries previously unattainable with standard developing.
Crossbreed frameworks combining alumina with steels or polymers with brazing or co-firing are being created for multifunctional systems in aerospace and defense.
As product science advances, alumina ceramic blocks remain to progress from passive structural components right into active elements in high-performance, sustainable design options.
In summary, alumina ceramic blocks represent a foundational class of sophisticated porcelains, combining robust mechanical efficiency with phenomenal chemical and thermal stability.
Their adaptability throughout industrial, electronic, and clinical domains emphasizes their long-lasting worth in modern-day design and technology development.
