1. Material Basics and Microstructural Qualities of Alumina Ceramics
1.1 Composition, Pureness Grades, and Crystallographic Quality

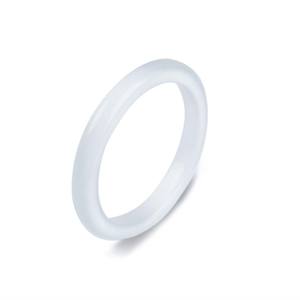

(Alumina Ceramic Wear Liners)
Alumina (Al Two O THREE), or light weight aluminum oxide, is just one of one of the most extensively utilized technological porcelains in commercial design due to its superb balance of mechanical strength, chemical stability, and cost-effectiveness.
When crafted right into wear liners, alumina porcelains are typically produced with pureness degrees varying from 85% to 99.9%, with higher purity corresponding to improved hardness, put on resistance, and thermal performance.
The dominant crystalline stage is alpha-alumina, which takes on a hexagonal close-packed (HCP) framework defined by solid ionic and covalent bonding, contributing to its high melting point (~ 2072 ° C )and low thermal conductivity.
Microstructurally, alumina porcelains contain fine, equiaxed grains whose dimension and circulation are regulated during sintering to optimize mechanical properties.
Grain sizes generally vary from submicron to a number of micrometers, with better grains generally improving crack toughness and resistance to split breeding under rough packing.
Small additives such as magnesium oxide (MgO) are commonly introduced in trace amounts to inhibit uncommon grain growth during high-temperature sintering, making sure consistent microstructure and dimensional security.
The resulting product displays a Vickers hardness of 1500– 2000 HV, substantially surpassing that of hardened steel (commonly 600– 800 HV), making it incredibly resistant to surface area deterioration in high-wear atmospheres.
1.2 Mechanical and Thermal Performance in Industrial Issues
Alumina ceramic wear linings are picked mostly for their impressive resistance to abrasive, erosive, and sliding wear systems widespread in bulk material dealing with systems.
They have high compressive toughness (approximately 3000 MPa), good flexural stamina (300– 500 MPa), and superb tightness (Youthful’s modulus of ~ 380 GPa), allowing them to withstand extreme mechanical loading without plastic contortion.
Although inherently brittle compared to steels, their low coefficient of rubbing and high surface area hardness lessen fragment attachment and minimize wear prices by orders of size relative to steel or polymer-based choices.
Thermally, alumina maintains structural honesty approximately 1600 ° C in oxidizing environments, allowing use in high-temperature processing atmospheres such as kiln feed systems, boiler ducting, and pyroprocessing devices.

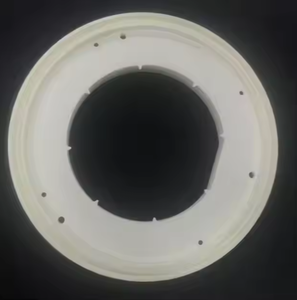

( Alumina Ceramic Wear Liners)
Its low thermal growth coefficient (~ 8 × 10 â»â¶/ K) contributes to dimensional stability during thermal cycling, minimizing the threat of cracking because of thermal shock when correctly set up.
Additionally, alumina is electrically insulating and chemically inert to a lot of acids, alkalis, and solvents, making it appropriate for destructive atmospheres where metallic linings would certainly break down quickly.
These mixed residential or commercial properties make alumina ceramics perfect for safeguarding crucial facilities in mining, power generation, concrete manufacturing, and chemical handling industries.
2. Manufacturing Processes and Layout Assimilation Methods
2.1 Forming, Sintering, and Quality Assurance Protocols
The production of alumina ceramic wear liners involves a series of precision production actions made to achieve high density, marginal porosity, and consistent mechanical efficiency.
Raw alumina powders are processed via milling, granulation, and developing strategies such as completely dry pushing, isostatic pushing, or extrusion, depending on the preferred geometry– tiles, plates, pipes, or custom-shaped segments.
Eco-friendly bodies are then sintered at temperatures between 1500 ° C and 1700 ° C in air, advertising densification with solid-state diffusion and accomplishing relative thickness going beyond 95%, frequently approaching 99% of theoretical thickness.
Full densification is crucial, as residual porosity functions as tension concentrators and accelerates wear and fracture under solution problems.
Post-sintering procedures might consist of ruby grinding or lapping to accomplish limited dimensional tolerances and smooth surface finishes that decrease rubbing and bit trapping.
Each batch undergoes strenuous quality control, consisting of X-ray diffraction (XRD) for stage analysis, scanning electron microscopy (SEM) for microstructural evaluation, and solidity and bend screening to confirm compliance with worldwide criteria such as ISO 6474 or ASTM B407.
2.2 Installing Strategies and System Compatibility Factors To Consider
Effective combination of alumina wear linings right into industrial equipment calls for cautious focus to mechanical accessory and thermal development compatibility.
Usual setup methods include sticky bonding making use of high-strength ceramic epoxies, mechanical attaching with studs or supports, and embedding within castable refractory matrices.
Adhesive bonding is commonly utilized for level or delicately rounded surfaces, giving consistent anxiety distribution and vibration damping, while stud-mounted systems permit simple replacement and are liked in high-impact zones.
To fit differential thermal development in between alumina and metal substratums (e.g., carbon steel), crafted voids, versatile adhesives, or compliant underlayers are included to avoid delamination or splitting during thermal transients.
Developers have to additionally take into consideration side protection, as ceramic floor tiles are at risk to damaging at exposed edges; options consist of diagonal edges, metal shadows, or overlapping floor tile setups.
Proper installation makes sure long life span and makes the most of the safety feature of the liner system.
3. Put On Systems and Performance Evaluation in Solution Environments
3.1 Resistance to Abrasive, Erosive, and Impact Loading
Alumina ceramic wear liners master environments dominated by three main wear mechanisms: two-body abrasion, three-body abrasion, and fragment disintegration.
In two-body abrasion, hard particles or surfaces directly gouge the lining surface area, a common event in chutes, receptacles, and conveyor transitions.
Three-body abrasion involves loose fragments trapped between the lining and moving product, bring about rolling and scraping activity that gradually removes product.
Abrasive wear takes place when high-velocity fragments strike the surface area, especially in pneumatic conveying lines and cyclone separators.
Because of its high firmness and reduced crack sturdiness, alumina is most efficient in low-impact, high-abrasion circumstances.
It carries out incredibly well against siliceous ores, coal, fly ash, and cement clinker, where wear prices can be decreased by 10– 50 times compared to mild steel linings.
Nonetheless, in applications involving duplicated high-energy influence, such as main crusher chambers, hybrid systems incorporating alumina ceramic tiles with elastomeric supports or metallic guards are commonly employed to take in shock and prevent crack.
3.2 Field Testing, Life Process Evaluation, and Failing Mode Evaluation
Efficiency evaluation of alumina wear linings includes both laboratory screening and area tracking.
Standardized examinations such as the ASTM G65 dry sand rubber wheel abrasion test offer relative wear indices, while customized slurry disintegration gears imitate site-specific conditions.
In commercial setups, use price is generally determined in mm/year or g/kWh, with service life projections based upon first thickness and observed deterioration.
Failing settings include surface sprucing up, micro-cracking, spalling at edges, and full floor tile dislodgement as a result of glue destruction or mechanical overload.
Root cause evaluation typically discloses installment mistakes, inappropriate quality choice, or unforeseen influence lots as key factors to early failing.
Life process expense analysis continually demonstrates that regardless of higher first prices, alumina liners provide remarkable total price of possession due to prolonged replacement intervals, decreased downtime, and lower maintenance labor.
4. Industrial Applications and Future Technological Advancements
4.1 Sector-Specific Executions Throughout Heavy Industries
Alumina ceramic wear linings are released across a broad spectrum of industrial fields where material destruction presents operational and financial difficulties.
In mining and mineral handling, they shield transfer chutes, mill linings, hydrocyclones, and slurry pumps from unpleasant slurries including quartz, hematite, and various other difficult minerals.
In power plants, alumina ceramic tiles line coal pulverizer air ducts, boiler ash receptacles, and electrostatic precipitator elements subjected to fly ash erosion.
Concrete makers utilize alumina linings in raw mills, kiln inlet zones, and clinker conveyors to deal with the very unpleasant nature of cementitious materials.
The steel sector uses them in blast heating system feed systems and ladle shrouds, where resistance to both abrasion and modest thermal loads is necessary.
Also in less standard applications such as waste-to-energy plants and biomass handling systems, alumina porcelains provide resilient security against chemically hostile and coarse products.
4.2 Emerging Fads: Composite Solutions, Smart Liners, and Sustainability
Current study concentrates on enhancing the durability and functionality of alumina wear systems with composite layout.
Alumina-zirconia (Al â‚‚ O TWO-ZrO â‚‚) compounds leverage transformation toughening from zirconia to enhance fracture resistance, while alumina-titanium carbide (Al â‚‚ O FIVE-TiC) grades offer enhanced performance in high-temperature moving wear.
An additional innovation includes embedding sensing units within or under ceramic linings to keep an eye on wear progression, temperature level, and influence regularity– making it possible for anticipating upkeep and electronic twin integration.
From a sustainability perspective, the extensive service life of alumina linings decreases material consumption and waste generation, lining up with round economic climate principles in industrial operations.
Recycling of spent ceramic linings right into refractory aggregates or building materials is also being explored to minimize environmental footprint.
Finally, alumina ceramic wear liners represent a keystone of modern-day industrial wear security modern technology.
Their remarkable hardness, thermal stability, and chemical inertness, combined with fully grown manufacturing and installment techniques, make them crucial in combating material destruction throughout hefty industries.
As material scientific research advances and digital tracking comes to be a lot more integrated, the future generation of smart, resistant alumina-based systems will certainly additionally improve operational performance and sustainability in abrasive atmospheres.
