1. Basic Chemistry and Crystallographic Design of Boron Carbide
1.1 Molecular Make-up and Structural Intricacy

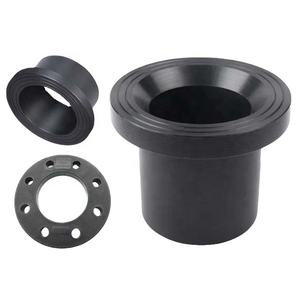

(Boron Carbide Ceramic)
Boron carbide (B FOUR C) stands as one of the most appealing and highly essential ceramic materials because of its special combination of severe hardness, reduced density, and phenomenal neutron absorption capability.
Chemically, it is a non-stoichiometric compound primarily composed of boron and carbon atoms, with an idyllic formula of B â‚„ C, though its real composition can vary from B â‚„ C to B â‚â‚€. FIVE C, showing a large homogeneity range controlled by the alternative systems within its complex crystal latticework.
The crystal framework of boron carbide comes from the rhombohedral system (room group R3Ì„m), characterized by a three-dimensional network of 12-atom icosahedra– collections of boron atoms– linked by straight C-B-C or C-C chains along the trigonal axis.
These icosahedra, each containing 11 boron atoms and 1 carbon atom (B â‚â‚ C), are covalently bonded through remarkably strong B– B, B– C, and C– C bonds, contributing to its remarkable mechanical strength and thermal stability.
The existence of these polyhedral devices and interstitial chains presents architectural anisotropy and inherent problems, which affect both the mechanical behavior and electronic homes of the material.
Unlike simpler ceramics such as alumina or silicon carbide, boron carbide’s atomic design allows for significant configurational adaptability, allowing defect formation and charge circulation that influence its performance under anxiety and irradiation.
1.2 Physical and Digital Qualities Occurring from Atomic Bonding
The covalent bonding network in boron carbide causes among the greatest known firmness values among artificial materials– 2nd only to ruby and cubic boron nitride– commonly varying from 30 to 38 Grade point average on the Vickers hardness scale.
Its density is extremely reduced (~ 2.52 g/cm FOUR), making it roughly 30% lighter than alumina and nearly 70% lighter than steel, a critical benefit in weight-sensitive applications such as personal armor and aerospace components.
Boron carbide displays excellent chemical inertness, resisting assault by a lot of acids and antacids at area temperature level, although it can oxidize above 450 ° C in air, developing boric oxide (B TWO O FOUR) and carbon dioxide, which might jeopardize architectural integrity in high-temperature oxidative atmospheres.
It possesses a large bandgap (~ 2.1 eV), categorizing it as a semiconductor with prospective applications in high-temperature electronic devices and radiation detectors.
Furthermore, its high Seebeck coefficient and reduced thermal conductivity make it a candidate for thermoelectric power conversion, especially in severe atmospheres where conventional materials stop working.

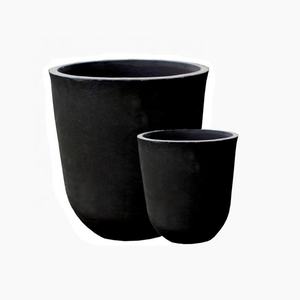

(Boron Carbide Ceramic)
The product also shows remarkable neutron absorption because of the high neutron capture cross-section of the ¹ⰠB isotope (roughly 3837 barns for thermal neutrons), providing it important in atomic power plant control poles, securing, and spent fuel storage systems.
2. Synthesis, Processing, and Obstacles in Densification
2.1 Industrial Production and Powder Manufacture Methods
Boron carbide is mostly generated via high-temperature carbothermal reduction of boric acid (H THREE BO FIVE) or boron oxide (B ₂ O TWO) with carbon resources such as petroleum coke or charcoal in electric arc heating systems operating above 2000 ° C.
The reaction proceeds as: 2B ₂ O THREE + 7C → B FOUR C + 6CO, producing coarse, angular powders that call for comprehensive milling to attain submicron bit sizes appropriate for ceramic handling.
Alternative synthesis paths consist of self-propagating high-temperature synthesis (SHS), laser-induced chemical vapor deposition (CVD), and plasma-assisted techniques, which provide better control over stoichiometry and bit morphology but are much less scalable for industrial use.
As a result of its extreme hardness, grinding boron carbide right into fine powders is energy-intensive and prone to contamination from grating media, demanding making use of boron carbide-lined mills or polymeric grinding help to preserve purity.
The resulting powders need to be very carefully categorized and deagglomerated to guarantee consistent packing and efficient sintering.
2.2 Sintering Limitations and Advanced Loan Consolidation Approaches
A major obstacle in boron carbide ceramic manufacture is its covalent bonding nature and reduced self-diffusion coefficient, which severely limit densification during traditional pressureless sintering.
Even at temperature levels coming close to 2200 ° C, pressureless sintering normally yields ceramics with 80– 90% of academic density, leaving recurring porosity that weakens mechanical strength and ballistic efficiency.
To overcome this, progressed densification methods such as warm pressing (HP) and warm isostatic pushing (HIP) are employed.
Hot pressing applies uniaxial stress (commonly 30– 50 MPa) at temperature levels in between 2100 ° C and 2300 ° C, advertising particle rearrangement and plastic deformation, making it possible for densities going beyond 95%.
HIP even more improves densification by using isostatic gas stress (100– 200 MPa) after encapsulation, removing shut pores and attaining near-full density with boosted crack strength.
Ingredients such as carbon, silicon, or shift metal borides (e.g., TiB â‚‚, CrB TWO) are often introduced in small quantities to improve sinterability and prevent grain growth, though they might somewhat minimize hardness or neutron absorption efficiency.
In spite of these advances, grain boundary weak point and inherent brittleness continue to be consistent difficulties, especially under dynamic packing problems.
3. Mechanical Behavior and Efficiency Under Extreme Loading Conditions
3.1 Ballistic Resistance and Failing Systems
Boron carbide is widely recognized as a premier product for lightweight ballistic security in body shield, automobile plating, and airplane protecting.
Its high firmness enables it to properly erode and warp inbound projectiles such as armor-piercing bullets and pieces, dissipating kinetic power via devices including crack, microcracking, and local phase makeover.
However, boron carbide displays a phenomenon called “amorphization under shock,” where, under high-velocity impact (normally > 1.8 km/s), the crystalline framework falls down right into a disordered, amorphous phase that does not have load-bearing capability, causing catastrophic failure.
This pressure-induced amorphization, observed through in-situ X-ray diffraction and TEM studies, is attributed to the breakdown of icosahedral devices and C-B-C chains under extreme shear anxiety.
Initiatives to reduce this include grain improvement, composite design (e.g., B â‚„ C-SiC), and surface layer with ductile metals to postpone split proliferation and have fragmentation.
3.2 Put On Resistance and Industrial Applications
Past defense, boron carbide’s abrasion resistance makes it excellent for commercial applications including severe wear, such as sandblasting nozzles, water jet cutting suggestions, and grinding media.
Its hardness dramatically surpasses that of tungsten carbide and alumina, leading to prolonged life span and reduced maintenance prices in high-throughput manufacturing atmospheres.
Elements made from boron carbide can operate under high-pressure unpleasant flows without quick deterioration, although treatment needs to be required to prevent thermal shock and tensile anxieties during operation.
Its usage in nuclear settings additionally extends to wear-resistant parts in gas handling systems, where mechanical resilience and neutron absorption are both needed.
4. Strategic Applications in Nuclear, Aerospace, and Emerging Technologies
4.1 Neutron Absorption and Radiation Shielding Solutions
One of one of the most crucial non-military applications of boron carbide remains in nuclear energy, where it functions as a neutron-absorbing product in control poles, closure pellets, and radiation securing structures.
Due to the high wealth of the ¹ⰠB isotope (normally ~ 20%, but can be enriched to > 90%), boron carbide successfully records thermal neutrons via the ¹ⰠB(n, α)seven Li response, producing alpha fragments and lithium ions that are easily included within the material.
This reaction is non-radioactive and generates marginal long-lived by-products, making boron carbide much safer and much more steady than options like cadmium or hafnium.
It is made use of in pressurized water reactors (PWRs), boiling water reactors (BWRs), and study activators, typically in the type of sintered pellets, clad tubes, or composite panels.
Its security under neutron irradiation and capability to retain fission products enhance activator safety and security and operational long life.
4.2 Aerospace, Thermoelectrics, and Future Product Frontiers
In aerospace, boron carbide is being checked out for use in hypersonic vehicle leading sides, where its high melting point (~ 2450 ° C), reduced density, and thermal shock resistance offer advantages over metallic alloys.
Its possibility in thermoelectric gadgets originates from its high Seebeck coefficient and reduced thermal conductivity, enabling direct conversion of waste heat right into power in extreme settings such as deep-space probes or nuclear-powered systems.
Research study is additionally underway to create boron carbide-based composites with carbon nanotubes or graphene to improve strength and electric conductivity for multifunctional structural electronics.
Additionally, its semiconductor residential or commercial properties are being leveraged in radiation-hardened sensors and detectors for area and nuclear applications.
In summary, boron carbide ceramics represent a cornerstone material at the crossway of severe mechanical performance, nuclear engineering, and advanced manufacturing.
Its unique combination of ultra-high solidity, reduced density, and neutron absorption capacity makes it irreplaceable in defense and nuclear technologies, while recurring research study remains to increase its energy right into aerospace, power conversion, and next-generation compounds.
As refining methods enhance and new composite designs emerge, boron carbide will stay at the forefront of products advancement for the most requiring technical challenges.
