Intro to Light Weight Aluminum Nitride Ceramics
Light weight aluminum nitride (AlN) is a high-performance ceramic product that has actually gained widespread recognition for its remarkable thermal conductivity, electric insulation, and mechanical security at raised temperatures. With a hexagonal wurtzite crystal framework, AlN displays an unique mix of properties that make it one of the most suitable substratum material for applications in electronic devices, optoelectronics, power modules, and high-temperature atmospheres. Its ability to efficiently dissipate warmth while keeping superb dielectric stamina settings AlN as a superior choice to typical ceramic substrates such as alumina and beryllium oxide. This post discovers the fundamental attributes of aluminum nitride porcelains, explores construction techniques, and highlights its essential roles throughout sophisticated technical domains.

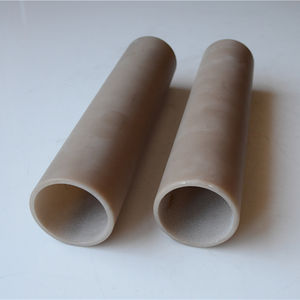

(Aluminum Nitride Ceramics)
Crystal Structure and Fundamental Characteristic
The performance of light weight aluminum nitride as a substrate material is largely determined by its crystalline structure and intrinsic physical buildings. AlN adopts a wurtzite-type lattice made up of alternating light weight aluminum and nitrogen atoms, which contributes to its high thermal conductivity– typically exceeding 180 W/(m · K), with some high-purity examples accomplishing over 320 W/(m · K). This value considerably surpasses those of other extensively used ceramic products, consisting of alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
Along with its thermal performance, AlN has a broad bandgap of about 6.2 eV, resulting in superb electric insulation residential properties even at high temperatures. It likewise shows reduced thermal expansion (CTE ≈ 4.5 × 10 â»â¶/ K), which carefully matches that of silicon and gallium arsenide, making it an optimal suit for semiconductor tool product packaging. Moreover, AlN shows high chemical inertness and resistance to molten metals, enhancing its viability for extreme settings. These consolidated qualities develop AlN as a leading candidate for high-power digital substratums and thermally managed systems.
Manufacture and Sintering Technologies
Producing top quality aluminum nitride ceramics needs specific powder synthesis and sintering techniques to accomplish dense microstructures with very little pollutants. As a result of its covalent bonding nature, AlN does not easily compress with standard pressureless sintering. For that reason, sintering aids such as yttrium oxide (Y â‚‚ O FIVE), calcium oxide (CaO), or unusual planet components are commonly added to promote liquid-phase sintering and improve grain boundary diffusion.
The fabrication process typically begins with the carbothermal decrease of aluminum oxide in a nitrogen atmosphere to synthesize AlN powders. These powders are then milled, formed through methods like tape casting or injection molding, and sintered at temperature levels in between 1700 ° C and 1900 ° C under a nitrogen-rich environment. Warm pushing or spark plasma sintering (SPS) can better boost thickness and thermal conductivity by decreasing porosity and advertising grain placement. Advanced additive manufacturing techniques are additionally being discovered to fabricate complex-shaped AlN elements with customized thermal administration abilities.
Application in Electronic Product Packaging and Power Modules
One of the most prominent uses aluminum nitride porcelains remains in electronic packaging, especially for high-power tools such as protected entrance bipolar transistors (IGBTs), laser diodes, and radio frequency (RF) amplifiers. As power thickness boost in modern electronic devices, efficient warm dissipation becomes important to guarantee reliability and longevity. AlN substrates supply an ideal solution by incorporating high thermal conductivity with superb electrical seclusion, stopping brief circuits and thermal runaway conditions.
Additionally, AlN-based direct bound copper (DBC) and energetic metal brazed (AMB) substrates are increasingly used in power component styles for electrical cars, renewable resource inverters, and industrial electric motor drives. Contrasted to conventional alumina or silicon nitride substratums, AlN offers faster heat transfer and far better compatibility with silicon chip coefficients of thermal growth, thus reducing mechanical tension and improving overall system performance. Recurring research study intends to enhance the bonding toughness and metallization methods on AlN surface areas to additional increase its application scope.
Use in Optoelectronic and High-Temperature Instruments
Beyond digital product packaging, light weight aluminum nitride porcelains play a crucial function in optoelectronic and high-temperature applications because of their transparency to ultraviolet (UV) radiation and thermal security. AlN is extensively made use of as a substratum for deep UV light-emitting diodes (LEDs) and laser diodes, particularly in applications calling for sterilization, picking up, and optical interaction. Its large bandgap and reduced absorption coefficient in the UV range make it an ideal candidate for sustaining light weight aluminum gallium nitride (AlGaN)-based heterostructures.
In addition, AlN’s capability to function dependably at temperatures surpassing 1000 ° C makes it appropriate for usage in sensing units, thermoelectric generators, and elements subjected to severe thermal loads. In aerospace and protection sectors, AlN-based sensor packages are employed in jet engine surveillance systems and high-temperature control units where traditional materials would fail. Continuous developments in thin-film deposition and epitaxial development methods are expanding the possibility of AlN in next-generation optoelectronic and high-temperature integrated systems.

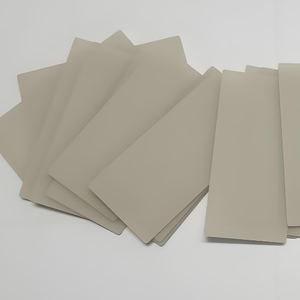

( Aluminum Nitride Ceramics)
Ecological Security and Long-Term Integrity
An essential factor to consider for any substrate material is its long-lasting reliability under functional stress and anxieties. Light weight aluminum nitride demonstrates premium environmental stability compared to numerous various other porcelains. It is highly immune to rust from acids, alkalis, and molten metals, making certain durability in aggressive chemical settings. Nonetheless, AlN is vulnerable to hydrolysis when revealed to wetness at raised temperature levels, which can deteriorate its surface area and reduce thermal efficiency.
To alleviate this issue, safety finishings such as silicon nitride (Si two N â‚„), aluminum oxide, or polymer-based encapsulation layers are commonly put on boost dampness resistance. Additionally, careful securing and product packaging approaches are executed throughout tool assembly to keep the stability of AlN substrates throughout their service life. As ecological policies come to be a lot more rigid, the non-toxic nature of AlN likewise positions it as a recommended alternative to beryllium oxide, which positions wellness threats throughout processing and disposal.
Verdict
Aluminum nitride ceramics stand for a course of innovative materials distinctly matched to address the growing demands for efficient thermal administration and electrical insulation in high-performance electronic and optoelectronic systems. Their phenomenal thermal conductivity, chemical stability, and compatibility with semiconductor innovations make them one of the most optimal substrate product for a variety of applications– from automotive power modules to deep UV LEDs and high-temperature sensing units. As construction innovations remain to progress and affordable manufacturing methods mature, the fostering of AlN substrates is expected to rise considerably, driving technology in next-generation digital and photonic tools.
