1. Product Fundamentals and Microstructural Layout
1.1 Make-up and Crystallographic Security of Alumina
(Alumina Ceramic Nozzles)
Alumina (Al â‚‚ O FOUR), particularly in its alpha phase, is a fully oxidized ceramic with a corundum-type hexagonal close-packed framework, using remarkable thermal stability, chemical inertness, and mechanical stamina at elevated temperatures.
High-purity alumina (generally 95– 99.9% Al â‚‚ O SIX) is chosen for nozzle applications due to its marginal impurity material, which decreases grain limit weakening and boosts resistance to thermal and chemical degradation.
The microstructure, including fine, equiaxed grains, is crafted throughout sintering to lessen porosity and make best use of thickness, directly affecting the nozzle’s erosion resistance and architectural integrity under high-velocity fluid circulation.
Ingredients such as MgO are often presented in trace total up to inhibit abnormal grain development during sintering, making certain an uniform microstructure that supports lasting integrity.
1.2 Mechanical and Thermal Qualities Relevant to Nozzle Performance
Alumina ceramics display a Vickers hardness surpassing 1800 HV, making them extremely resistant to rough wear from particulate-laden liquids, an essential feature in applications such as sandblasting and rough waterjet cutting.
With a flexural strength of 300– 500 MPa and a compressive toughness over 2 Grade point average, alumina nozzles maintain dimensional security under high-pressure procedure, usually varying from 100 to 400 MPa in industrial systems.
Thermally, alumina preserves its mechanical homes approximately 1600 ° C, with a reduced thermal development coefficient (~ 8 × 10 â»â¶/ K) that offers exceptional resistance to thermal shock– important when subjected to rapid temperature variations during start-up or closure cycles.
Its thermal conductivity (~ 30 W/m · K) suffices to dissipate local warmth without causing thermal slopes that could cause cracking, stabilizing insulation and heat administration needs.
2. Production Processes and Geometric Accuracy
2.1 Shaping and Sintering Methods for Nozzle Fabrication
The manufacturing of alumina ceramic nozzles starts with high-purity alumina powder, which is processed into an environment-friendly body utilizing methods such as cold isostatic pressing (CIP), injection molding, or extrusion, depending upon the desired geometry and set dimension.

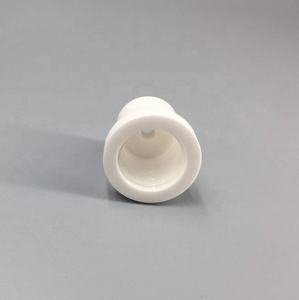

( Alumina Ceramic Nozzles)
Cold isostatic pushing uses uniform stress from all instructions, yielding an uniform density circulation important for reducing flaws throughout sintering.
Injection molding is utilized for intricate nozzle forms with internal tapers and great orifices, enabling high dimensional accuracy and reproducibility in automation.
After shaping, the environment-friendly compacts undergo a two-stage thermal therapy: debinding to eliminate natural binders and sintering at temperature levels in between 1500 ° C and 1650 ° C to achieve near-theoretical density with solid-state diffusion.
Precise control of sintering ambience and heating/cooling rates is necessary to protect against bending, cracking, or grain coarsening that can endanger nozzle performance.
2.2 Machining, Sprucing Up, and Quality Assurance
Post-sintering, alumina nozzles usually require precision machining to attain tight tolerances, specifically in the orifice region where flow dynamics are most sensitive to surface finish and geometry.
Ruby grinding and splashing are made use of to fine-tune inner and outside surfaces, attaining surface area roughness values below 0.1 µm, which decreases circulation resistance and avoids fragment accumulation.
The orifice, normally ranging from 0.3 to 3.0 mm in diameter, have to be devoid of micro-cracks and chamfers to ensure laminar circulation and consistent spray patterns.
Non-destructive testing approaches such as optical microscopy, X-ray inspection, and pressure biking examinations are employed to validate structural integrity and performance uniformity prior to implementation.
Custom-made geometries, consisting of convergent-divergent (de Laval) profiles for supersonic circulation or multi-hole arrays for fan spray patterns, are increasingly made making use of advanced tooling and computer-aided design (CAD)-driven manufacturing.
3. Useful Benefits Over Different Nozzle Products
3.1 Superior Disintegration and Corrosion Resistance
Compared to metal (e.g., tungsten carbide, stainless-steel) or polymer nozzles, alumina exhibits much greater resistance to unpleasant wear, particularly in settings including silica sand, garnet, or various other difficult abrasives made use of in surface area prep work and cutting.
Metal nozzles weaken swiftly because of micro-fracturing and plastic deformation, calling for frequent replacement, whereas alumina nozzles can last 3– 5 times much longer, substantially minimizing downtime and functional prices.
In addition, alumina is inert to the majority of acids, antacid, and solvents, making it appropriate for chemical splashing, etching, and cleansing procedures where metallic parts would corrode or infect the fluid.
This chemical security is especially valuable in semiconductor production, pharmaceutical processing, and food-grade applications calling for high pureness.
3.2 Thermal and Electric Insulation Characteristic
Alumina’s high electric resistivity (> 10 ¹ⴠΩ · cm) makes it optimal for usage in electrostatic spray finish systems, where it avoids cost leak and makes certain consistent paint atomization.
Its thermal insulation capacity permits safe operation in high-temperature spraying environments, such as flame spraying or thermal cleaning, without warm transfer to bordering parts.
Unlike steels, alumina does not catalyze undesirable chemical reactions in reactive liquid streams, protecting the stability of delicate formulas.
4. Industrial Applications and Technical Impact
4.1 Roles in Abrasive Jet Machining and Surface Therapy
Alumina ceramic nozzles are indispensable in rough blowing up systems for corrosion elimination, paint removing, and surface area texturing in automotive, aerospace, and building and construction sectors.
Their ability to preserve a consistent orifice diameter over expanded use makes sure consistent abrasive rate and impact angle, directly affecting surface finish quality and procedure repeatability.
In abrasive waterjet cutting, alumina concentrating tubes lead the high-pressure water-abrasive mixture, withstanding erosive forces that would rapidly deteriorate softer products.
4.2 Use in Additive Manufacturing, Spray Covering, and Fluid Control
In thermal spray systems, such as plasma and fire splashing, alumina nozzles direct high-temperature gas circulations and molten bits onto substrates, taking advantage of their thermal shock resistance and dimensional security.
They are additionally utilized in accuracy spray nozzles for farming chemicals, inkjet systems, and fuel atomization, where wear resistance makes sure long-term application precision.
In 3D printing, specifically in binder jetting and product extrusion, alumina nozzles provide great powders or thick pastes with minimal obstructing or wear.
Arising applications include microfluidic systems and lab-on-a-chip devices, where miniaturized alumina parts supply durability and biocompatibility.
In recap, alumina ceramic nozzles stand for a critical junction of products scientific research and commercial design.
Their exceptional combination of firmness, thermal security, and chemical resistance makes it possible for dependable efficiency in several of one of the most requiring fluid handling environments.
As industrial procedures press toward higher stress, finer tolerances, and much longer solution periods, alumina ceramics continue to establish the standard for long lasting, high-precision flow control parts.
