1. Material Principles and Microstructural Characteristics
1.1 Composition and Crystallographic Properties of Al â‚‚ O TWO
(Alumina Ceramic Balls， Alumina Ceramic Balls)

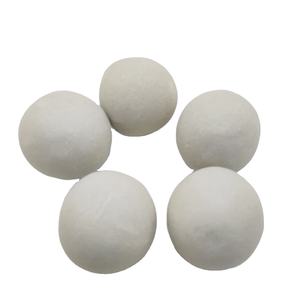

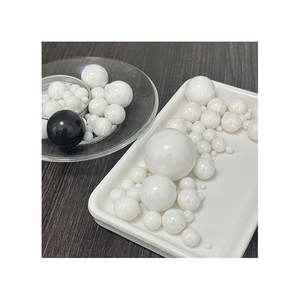

Alumina ceramic spheres are spherical parts produced from aluminum oxide (Al two O THREE), a completely oxidized, polycrystalline ceramic that shows extraordinary hardness, chemical inertness, and thermal security.
The key crystalline phase in high-performance alumina rounds is α-alumina, which takes on a corundum-type hexagonal close-packed structure where light weight aluminum ions inhabit two-thirds of the octahedral interstices within an oxygen anion latticework, providing high lattice power and resistance to phase transformation.
Industrial-grade alumina rounds commonly include 85% to 99.9% Al Two O THREE, with pureness directly influencing mechanical strength, use resistance, and rust performance.
High-purity qualities (≥ 95% Al ₂ O FOUR) are sintered to near-theoretical density (> 99%) using sophisticated techniques such as pressureless sintering or warm isostatic pressing, decreasing porosity and intergranular defects that might work as stress and anxiety concentrators.
The resulting microstructure contains penalty, equiaxed grains uniformly dispersed throughout the volume, with grain sizes normally varying from 1 to 5 micrometers, maximized to balance sturdiness and firmness.
1.2 Mechanical and Physical Building Account
Alumina ceramic spheres are renowned for their extreme solidity– gauged at about 1800– 2000 HV on the Vickers scale– going beyond most steels and measuring up to tungsten carbide, making them excellent for wear-intensive settings.
Their high compressive stamina (as much as 2500 MPa) makes certain dimensional stability under lots, while low elastic deformation enhances accuracy in rolling and grinding applications.
In spite of their brittleness about steels, alumina balls display superb crack durability for porcelains, especially when grain growth is regulated throughout sintering.
They preserve architectural honesty across a wide temperature level variety, from cryogenic conditions as much as 1600 ° C in oxidizing environments, far exceeding the thermal limitations of polymer or steel counterparts.
Additionally, their low thermal expansion coefficient (~ 8 × 10 â»â¶/ K) minimizes thermal shock susceptibility, making it possible for use in rapidly rising and fall thermal settings such as kilns and warmth exchangers.
2. Production Processes and Quality Assurance
()
2.1 Forming and Sintering Methods
The production of alumina ceramic rounds begins with high-purity alumina powder, commonly originated from calcined bauxite or chemically precipitated hydrates, which is crushed to attain submicron bit dimension and slim dimension distribution.
Powders are then created into round green bodies utilizing methods such as extrusion-spheronization, spray drying out, or round forming in turning pans, relying on the preferred dimension and set scale.
After shaping, eco-friendly spheres go through a binder burnout stage complied with by high-temperature sintering, typically between 1500 ° C and 1700 ° C, where diffusion systems drive densification and grain coarsening.
Exact control of sintering environment (air or regulated oxygen partial stress), heating price, and dwell time is vital to achieving consistent contraction, spherical geometry, and very little interior flaws.
For ultra-high-performance applications, post-sintering treatments such as hot isostatic pushing (HIP) may be put on eliminate residual microporosity and additionally improve mechanical integrity.
2.2 Precision Finishing and Metrological Confirmation
Complying with sintering, alumina spheres are ground and brightened using diamond-impregnated media to attain tight dimensional resistances and surface finishes equivalent to bearing-grade steel spheres.
Surface roughness is typically minimized to less than 0.05 μm Ra, minimizing friction and put on in vibrant call scenarios.
Crucial high quality criteria consist of sphericity (discrepancy from ideal roundness), diameter variation, surface area integrity, and thickness harmony, all of which are determined using optical interferometry, coordinate measuring machines (CMM), and laser profilometry.
International requirements such as ISO 3290 and ANSI/ABMA define resistance qualities for ceramic spheres used in bearings, making sure interchangeability and efficiency consistency throughout producers.
Non-destructive screening methods like ultrasonic examination or X-ray microtomography are employed to detect internal cracks, spaces, or additions that can endanger long-term reliability.
3. Functional Advantages Over Metal and Polymer Counterparts
3.1 Chemical and Corrosion Resistance in Harsh Environments
Among one of the most significant benefits of alumina ceramic rounds is their outstanding resistance to chemical strike.
They continue to be inert in the visibility of solid acids (other than hydrofluoric acid), alkalis, organic solvents, and saline services, making them ideal for use in chemical processing, pharmaceutical manufacturing, and marine applications where steel components would corrode swiftly.
This inertness avoids contamination of delicate media, a critical factor in food handling, semiconductor fabrication, and biomedical equipment.
Unlike steel balls, alumina does not produce corrosion or metal ions, guaranteeing process pureness and lowering maintenance frequency.
Their non-magnetic nature better extends applicability to MRI-compatible devices and electronic production line where magnetic disturbance must be stayed clear of.
3.2 Wear Resistance and Long Service Life
In unpleasant or high-cycle settings, alumina ceramic rounds display wear prices orders of size less than steel or polymer alternatives.
This exceptional durability converts into extensive solution intervals, minimized downtime, and lower total cost of ownership despite higher initial procurement expenses.
They are widely utilized as grinding media in sphere mills for pigment dispersion, mineral handling, and nanomaterial synthesis, where their inertness avoids contamination and their firmness ensures reliable bit dimension reduction.
In mechanical seals and shutoff parts, alumina balls preserve tight tolerances over millions of cycles, resisting disintegration from particulate-laden fluids.
4. Industrial and Emerging Applications
4.1 Bearings, Shutoffs, and Liquid Handling Systems
Alumina ceramic balls are important to hybrid ball bearings, where they are paired with steel or silicon nitride races to incorporate the low thickness and deterioration resistance of porcelains with the durability of metals.
Their reduced thickness (~ 3.9 g/cm TWO, concerning 40% lighter than steel) lowers centrifugal packing at high rotational speeds, making it possible for quicker operation with lower heat generation and enhanced power performance.
Such bearings are used in high-speed pins, dental handpieces, and aerospace systems where reliability under extreme conditions is extremely important.
In fluid control applications, alumina rounds work as check shutoff aspects in pumps and metering tools, especially for hostile chemicals, high-purity water, or ultra-high vacuum systems.
Their smooth surface and dimensional security guarantee repeatable sealing performance and resistance to galling or seizing.
4.2 Biomedical, Power, and Advanced Innovation Uses
Beyond conventional commercial duties, alumina ceramic balls are locating use in biomedical implants and analysis devices because of their biocompatibility and radiolucency.
They are utilized in fabricated joints and oral prosthetics where wear debris have to be reduced to avoid inflammatory actions.
In power systems, they work as inert tracers in reservoir characterization or as heat-stable components in concentrated solar power and fuel cell assemblies.
Research is likewise checking out functionalized alumina balls for catalytic assistance, sensing unit aspects, and accuracy calibration standards in width.
In recap, alumina ceramic rounds exhibit how sophisticated ceramics bridge the gap in between structural toughness and useful precision.
Their unique combination of hardness, chemical inertness, thermal stability, and dimensional accuracy makes them crucial in demanding engineering systems across diverse sectors.
As manufacturing techniques continue to improve, their efficiency and application extent are anticipated to expand further into next-generation innovations.
5. Supplier
Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials such as Alumina Ceramic Balls. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested, please feel free to contact us.(nanotrun@yahoo.com)
