1. Material Fundamentals and Structural Attributes of Alumina Ceramics
1.1 Crystallographic and Compositional Basis of α-Alumina

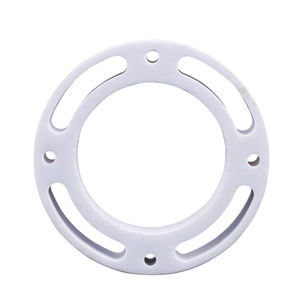

(Alumina Ceramic Substrates)
Alumina ceramic substratums, mostly made up of light weight aluminum oxide (Al â‚‚ O THREE), function as the foundation of modern electronic packaging because of their extraordinary balance of electric insulation, thermal security, mechanical stamina, and manufacturability.
The most thermodynamically stable stage of alumina at heats is corundum, or α-Al Two O TWO, which crystallizes in a hexagonal close-packed oxygen latticework with aluminum ions inhabiting two-thirds of the octahedral interstitial websites.
This thick atomic setup conveys high firmness (Mohs 9), outstanding wear resistance, and strong chemical inertness, making α-alumina suitable for harsh operating atmospheres.
Business substrates typically contain 90– 99.8% Al Two O SIX, with small additions of silica (SiO â‚‚), magnesia (MgO), or unusual planet oxides made use of as sintering help to promote densification and control grain development throughout high-temperature processing.
Greater pureness grades (e.g., 99.5% and over) exhibit remarkable electrical resistivity and thermal conductivity, while reduced purity variants (90– 96%) use economical services for much less requiring applications.
1.2 Microstructure and Problem Engineering for Electronic Integrity
The performance of alumina substrates in digital systems is seriously based on microstructural uniformity and issue minimization.
A penalty, equiaxed grain structure– typically varying from 1 to 10 micrometers– guarantees mechanical stability and minimizes the probability of fracture proliferation under thermal or mechanical stress and anxiety.
Porosity, particularly interconnected or surface-connected pores, have to be decreased as it breaks down both mechanical strength and dielectric efficiency.
Advanced processing methods such as tape spreading, isostatic pushing, and regulated sintering in air or regulated ambiences make it possible for the production of substrates with near-theoretical thickness (> 99.5%) and surface area roughness listed below 0.5 µm, essential for thin-film metallization and cord bonding.
Furthermore, pollutant segregation at grain limits can result in leak currents or electrochemical migration under prejudice, requiring stringent control over basic material purity and sintering conditions to guarantee long-term integrity in damp or high-voltage settings.
2. Production Processes and Substratum Construction Technologies
( Alumina Ceramic Substrates)
2.1 Tape Spreading and Eco-friendly Body Handling
The manufacturing of alumina ceramic substrates starts with the prep work of a highly dispersed slurry consisting of submicron Al â‚‚ O six powder, organic binders, plasticizers, dispersants, and solvents.
This slurry is refined through tape spreading– a continuous approach where the suspension is spread over a moving service provider film making use of an accuracy physician blade to achieve uniform thickness, generally in between 0.1 mm and 1.0 mm.
After solvent evaporation, the resulting “green tape” is flexible and can be punched, drilled, or laser-cut to develop via holes for upright affiliations.
Numerous layers might be laminated flooring to develop multilayer substratums for intricate circuit combination, although the majority of commercial applications utilize single-layer arrangements because of set you back and thermal growth factors to consider.
The environment-friendly tapes are after that very carefully debound to eliminate organic additives through controlled thermal disintegration before final sintering.
2.2 Sintering and Metallization for Circuit Combination
Sintering is carried out in air at temperature levels between 1550 ° C and 1650 ° C, where solid-state diffusion drives pore removal and grain coarsening to achieve complete densification.
The linear shrinking throughout sintering– normally 15– 20%– need to be specifically anticipated and made up for in the layout of environment-friendly tapes to make certain dimensional accuracy of the final substratum.
Complying with sintering, metallization is related to develop conductive traces, pads, and vias.
Two main approaches control: thick-film printing and thin-film deposition.
In thick-film technology, pastes consisting of metal powders (e.g., tungsten, molybdenum, or silver-palladium alloys) are screen-printed onto the substrate and co-fired in a minimizing atmosphere to form robust, high-adhesion conductors.
For high-density or high-frequency applications, thin-film processes such as sputtering or dissipation are used to deposit attachment layers (e.g., titanium or chromium) followed by copper or gold, allowing sub-micron patterning through photolithography.
Vias are loaded with conductive pastes and terminated to establish electrical affiliations in between layers in multilayer styles.
3. Practical Properties and Efficiency Metrics in Electronic Equipment
3.1 Thermal and Electrical Behavior Under Functional Stress
Alumina substratums are prized for their positive combination of moderate thermal conductivity (20– 35 W/m · K for 96– 99.8% Al â‚‚ O ₃), which enables efficient heat dissipation from power tools, and high volume resistivity (> 10 ¹ⴠΩ · cm), guaranteeing marginal leakage current.
Their dielectric constant (εᵣ ≈ 9– 10 at 1 MHz) is steady over a vast temperature and regularity range, making them ideal for high-frequency circuits approximately several gigahertz, although lower-κ products like light weight aluminum nitride are liked for mm-wave applications.
The coefficient of thermal expansion (CTE) of alumina (~ 6.8– 7.2 ppm/K) is reasonably well-matched to that of silicon (~ 3 ppm/K) and particular product packaging alloys, decreasing thermo-mechanical stress during tool procedure and thermal cycling.
Nevertheless, the CTE inequality with silicon remains a problem in flip-chip and direct die-attach arrangements, frequently needing compliant interposers or underfill products to minimize tiredness failure.
3.2 Mechanical Effectiveness and Ecological Durability
Mechanically, alumina substrates show high flexural toughness (300– 400 MPa) and exceptional dimensional stability under tons, allowing their use in ruggedized electronics for aerospace, automobile, and commercial control systems.
They are immune to vibration, shock, and creep at elevated temperature levels, preserving architectural integrity approximately 1500 ° C in inert ambiences.
In moist settings, high-purity alumina shows very little wetness absorption and excellent resistance to ion migration, making sure long-term integrity in exterior and high-humidity applications.
Surface solidity likewise protects versus mechanical damages throughout handling and assembly, although treatment should be required to avoid side chipping as a result of integral brittleness.
4. Industrial Applications and Technical Influence Throughout Sectors
4.1 Power Electronics, RF Modules, and Automotive Solutions
Alumina ceramic substrates are ubiquitous in power digital components, including insulated gate bipolar transistors (IGBTs), MOSFETs, and rectifiers, where they offer electric isolation while helping with warmth transfer to warmth sinks.
In radio frequency (RF) and microwave circuits, they act as provider systems for crossbreed integrated circuits (HICs), surface acoustic wave (SAW) filters, and antenna feed networks because of their stable dielectric properties and reduced loss tangent.
In the automotive market, alumina substrates are made use of in engine control systems (ECUs), sensing unit bundles, and electric automobile (EV) power converters, where they sustain high temperatures, thermal biking, and exposure to destructive liquids.
Their integrity under extreme problems makes them essential for safety-critical systems such as anti-lock braking (ABDOMINAL) and progressed driver assistance systems (ADAS).
4.2 Clinical Gadgets, Aerospace, and Emerging Micro-Electro-Mechanical Solutions
Beyond consumer and commercial electronic devices, alumina substrates are employed in implantable medical tools such as pacemakers and neurostimulators, where hermetic sealing and biocompatibility are paramount.
In aerospace and defense, they are made use of in avionics, radar systems, and satellite interaction components as a result of their radiation resistance and security in vacuum settings.
In addition, alumina is significantly utilized as an architectural and insulating platform in micro-electro-mechanical systems (MEMS), consisting of pressure sensors, accelerometers, and microfluidic gadgets, where its chemical inertness and compatibility with thin-film processing are helpful.
As digital systems continue to require higher power thickness, miniaturization, and reliability under severe conditions, alumina ceramic substratums continue to be a cornerstone product, linking the void between efficiency, expense, and manufacturability in advanced electronic product packaging.
