1. Basics of Silica Sol Chemistry and Colloidal Security
1.1 Make-up and Fragment Morphology

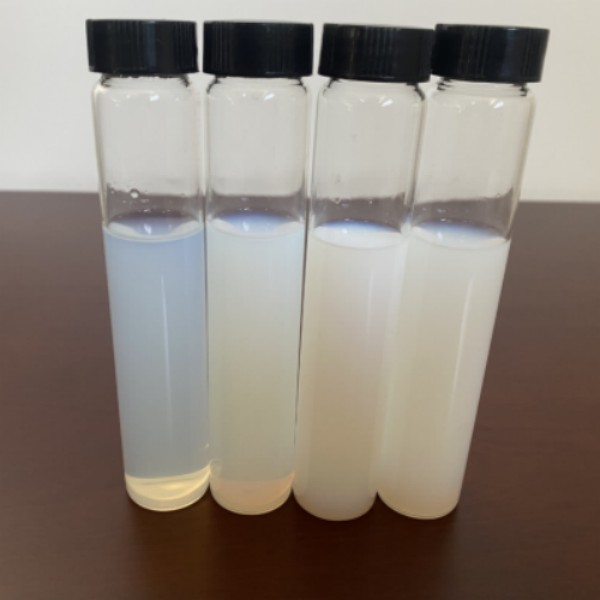

(Silica Sol)
Silica sol is a steady colloidal dispersion consisting of amorphous silicon dioxide (SiO â‚‚) nanoparticles, typically varying from 5 to 100 nanometers in diameter, put on hold in a liquid phase– most commonly water.
These nanoparticles are composed of a three-dimensional network of SiO â‚„ tetrahedra, forming a porous and highly responsive surface abundant in silanol (Si– OH) teams that control interfacial habits.
The sol state is thermodynamically metastable, maintained by electrostatic repulsion in between charged bits; surface fee arises from the ionization of silanol teams, which deprotonate over pH ~ 2– 3, producing adversely charged bits that push back each other.
Bit shape is typically spherical, though synthesis conditions can influence aggregation propensities and short-range getting.
The high surface-area-to-volume ratio– usually going beyond 100 m ²/ g– makes silica sol extremely reactive, making it possible for solid interactions with polymers, steels, and organic molecules.
1.2 Stabilization Mechanisms and Gelation Transition
Colloidal stability in silica sol is largely governed by the balance between van der Waals appealing forces and electrostatic repulsion, explained by the DLVO (Derjaguin– Landau– Verwey– Overbeek) concept.
At low ionic stamina and pH worths above the isoelectric point (~ pH 2), the zeta capacity of fragments is adequately adverse to prevent gathering.
Nonetheless, enhancement of electrolytes, pH change towards nonpartisanship, or solvent dissipation can screen surface fees, reduce repulsion, and cause bit coalescence, bring about gelation.
Gelation includes the development of a three-dimensional network with siloxane (Si– O– Si) bond formation in between nearby particles, transforming the liquid sol right into a stiff, permeable xerogel upon drying out.
This sol-gel change is reversible in some systems yet generally leads to irreversible structural modifications, creating the basis for sophisticated ceramic and composite construction.
2. Synthesis Pathways and Refine Control

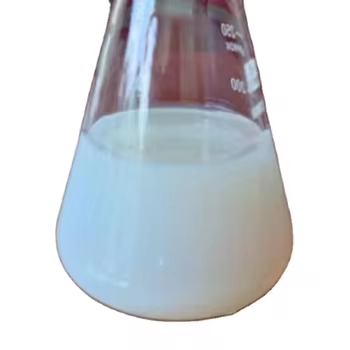

( Silica Sol)
2.1 Stöber Method and Controlled Growth
The most widely recognized technique for generating monodisperse silica sol is the Sțber process, developed in 1968, which entails the hydrolysis and condensation of alkoxysilanesРcommonly tetraethyl orthosilicate (TEOS)Рin an alcoholic tool with liquid ammonia as a catalyst.
By exactly regulating parameters such as water-to-TEOS ratio, ammonia focus, solvent composition, and response temperature level, fragment dimension can be tuned reproducibly from ~ 10 nm to over 1 µm with narrow dimension distribution.
The device continues through nucleation followed by diffusion-limited development, where silanol groups condense to create siloxane bonds, accumulating the silica framework.
This approach is excellent for applications needing uniform spherical fragments, such as chromatographic supports, calibration standards, and photonic crystals.
2.2 Acid-Catalyzed and Biological Synthesis Paths
Alternate synthesis techniques consist of acid-catalyzed hydrolysis, which favors straight condensation and causes even more polydisperse or aggregated fragments, usually used in commercial binders and coverings.
Acidic problems (pH 1– 3) advertise slower hydrolysis however faster condensation between protonated silanols, causing uneven or chain-like frameworks.
More recently, bio-inspired and green synthesis techniques have actually emerged, utilizing silicatein enzymes or plant essences to speed up silica under ambient conditions, lowering energy consumption and chemical waste.
These lasting approaches are getting passion for biomedical and environmental applications where pureness and biocompatibility are essential.
In addition, industrial-grade silica sol is frequently generated by means of ion-exchange processes from salt silicate options, followed by electrodialysis to remove alkali ions and stabilize the colloid.
3. Useful Properties and Interfacial Habits
3.1 Surface Sensitivity and Alteration Methods
The surface of silica nanoparticles in sol is dominated by silanol groups, which can join hydrogen bonding, adsorption, and covalent implanting with organosilanes.
Surface area alteration using combining representatives such as 3-aminopropyltriethoxysilane (APTES) or methyltrimethoxysilane presents practical teams (e.g.,– NH TWO,– CH TWO) that alter hydrophilicity, reactivity, and compatibility with natural matrices.
These modifications make it possible for silica sol to work as a compatibilizer in crossbreed organic-inorganic compounds, boosting dispersion in polymers and boosting mechanical, thermal, or obstacle properties.
Unmodified silica sol displays strong hydrophilicity, making it ideal for aqueous systems, while customized variants can be distributed in nonpolar solvents for specialized coatings and inks.
3.2 Rheological and Optical Characteristics
Silica sol diffusions commonly exhibit Newtonian flow actions at reduced focus, however thickness boosts with fragment loading and can shift to shear-thinning under high solids web content or partial gathering.
This rheological tunability is exploited in layers, where controlled flow and leveling are crucial for uniform movie development.
Optically, silica sol is clear in the noticeable spectrum as a result of the sub-wavelength dimension of fragments, which decreases light scattering.
This transparency allows its use in clear coverings, anti-reflective movies, and optical adhesives without jeopardizing visual clarity.
When dried, the resulting silica movie keeps openness while providing hardness, abrasion resistance, and thermal stability approximately ~ 600 ° C.
4. Industrial and Advanced Applications
4.1 Coatings, Composites, and Ceramics
Silica sol is thoroughly utilized in surface area finishings for paper, textiles, metals, and construction products to boost water resistance, scrape resistance, and toughness.
In paper sizing, it improves printability and wetness barrier properties; in factory binders, it changes natural materials with eco-friendly not natural choices that break down cleanly during spreading.
As a forerunner for silica glass and ceramics, silica sol makes it possible for low-temperature manufacture of thick, high-purity elements by means of sol-gel handling, preventing the high melting point of quartz.
It is additionally employed in investment spreading, where it forms solid, refractory molds with fine surface coating.
4.2 Biomedical, Catalytic, and Power Applications
In biomedicine, silica sol acts as a system for drug shipment systems, biosensors, and diagnostic imaging, where surface functionalization enables targeted binding and controlled release.
Mesoporous silica nanoparticles (MSNs), derived from templated silica sol, supply high loading capacity and stimuli-responsive release mechanisms.
As a driver support, silica sol supplies a high-surface-area matrix for incapacitating steel nanoparticles (e.g., Pt, Au, Pd), improving dispersion and catalytic effectiveness in chemical improvements.
In power, silica sol is made use of in battery separators to boost thermal security, in gas cell membranes to improve proton conductivity, and in solar panel encapsulants to protect versus wetness and mechanical tension.
In summary, silica sol represents a fundamental nanomaterial that links molecular chemistry and macroscopic functionality.
Its controllable synthesis, tunable surface chemistry, and versatile handling make it possible for transformative applications throughout industries, from lasting manufacturing to sophisticated healthcare and energy systems.
As nanotechnology develops, silica sol continues to serve as a model system for making wise, multifunctional colloidal products.
